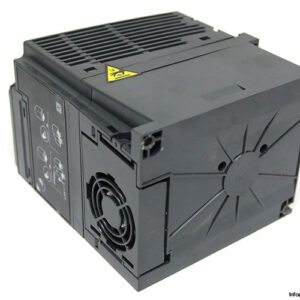

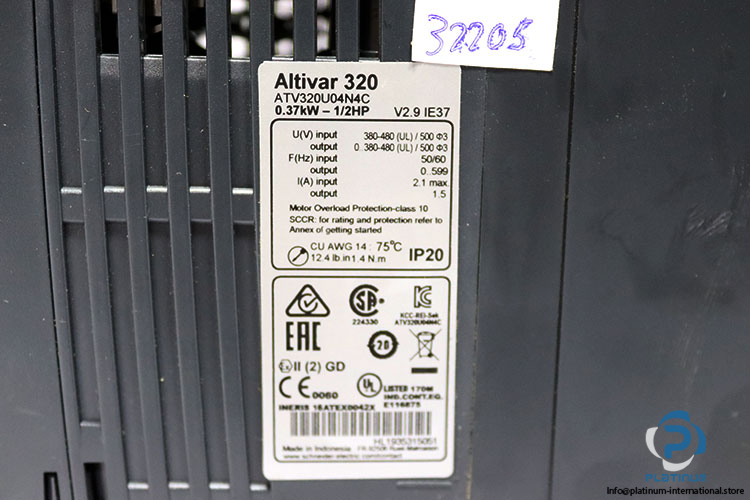

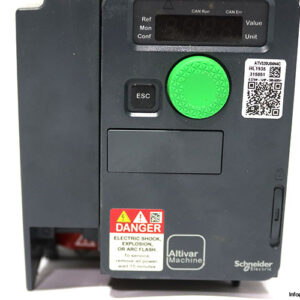

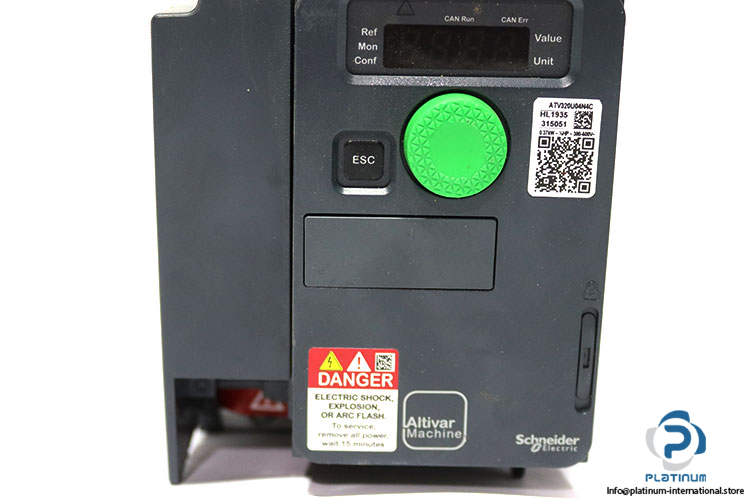

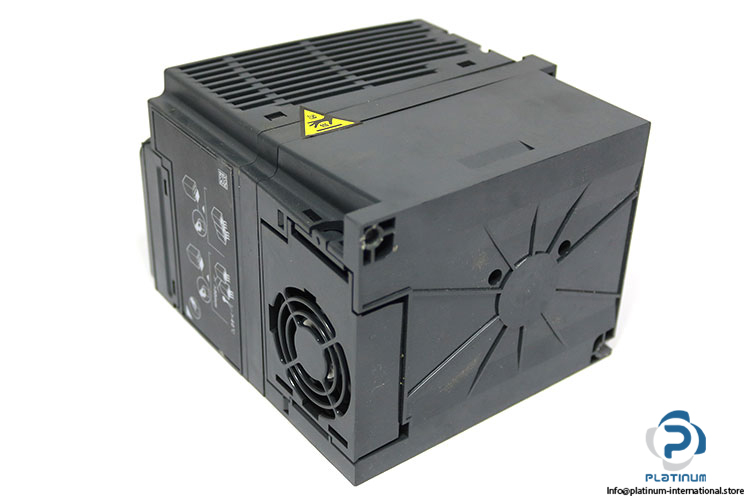

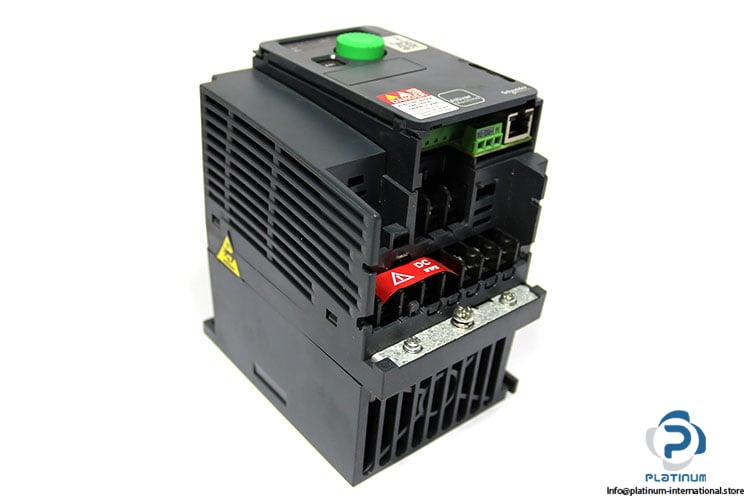

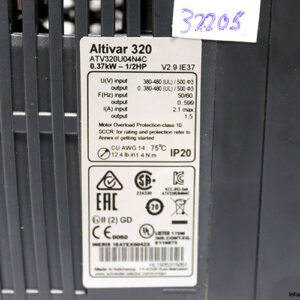

Schneider ATV320U04N4C Variable Speed Drive
The Schneider ATV320U04N4C is a compact and versatile variable speed drive designed for complex industrial machines. Part of the Altivar Machine ATV320 range, it offers advanced motor control, wide communication compatibility, and reliable performance in demanding automation environments.
Manufacturer: Schneider
Type: Variable Speed Drive
Model: ATV320U04N4C
Technical Information
- Range of Product: Altivar Machine ATV320
- Product or Component Type: Variable speed drive
- Product Specific Application: Complex machines
- Variant: Standard version
- Format of the Drive: Compact
- Mounting Mode: Wall mount
- Communication Port Protocol: Modbus serial, CANopen
- Option Card Compatibility: CANopen, EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet IP, DeviceNet
- Rated Supply Voltage: 380 to 500 V (minus 15 percent to plus 10 percent)
- Nominal Output Current:
- Motor Power: 0.37 kW heavy duty
- Motor Power HP: 0.5 HP
- EMC Filter: Class C2 filter integrated
- IP Degree of Protection: IP20
- Discrete Inputs: 7
- Discrete Input Type: STO Safe Torque Off, DI1 to DI6 logic inputs 24 V DC, DI5 programmable pulse input up to 30 kHz
- Discrete Input Logic: Positive logic (source), Negative logic (sink)
- Discrete Outputs: 3
- Discrete Output Type: Open collector 0 to 1 kHz, 30 V DC, 100 mA
- Analogue Inputs: 3
- Analogue Input AI1: 0 to 10 V DC, 30 kOhm, 10 bit resolution
- Analogue Input AI2: Plus or minus 10 V DC, differential, 30 kOhm
- Analogue Input AI3: 0 to 20 mA or 4 to 20 mA, 250 Ohm
- Analogue Outputs: 1
- Analogue Output Type: 0 to 20 mA (800 Ohm), 0 to 10 V DC (470 Ohm), 10 bit resolution
- Relay Output Type: Configurable relay logic R1A 1 NO, R1B 1 NC, R1C, R2A 1 NO, R2C
- Electrical Durability: 100000 cycles
- Maximum Switching Current: 3 A at 250 V AC (resistive), 3 A at 30 V DC (resistive), 2 A at 250 V AC (inductive), 2 A at 30 V DC (inductive), 5 A at 250 V AC (resistive relay R2), 5 A at 30 V DC (resistive relay R2)
- Minimum Switching Current: 5 mA at 24 V DC
- Method of Access: Slave CANopen
- 4 Quadrant Operation: True
- Asynchronous Motor Control: V/f ratio 5 points, Flux vector control without sensor, Energy saving profiles
- Synchronous Motor Control: Vector control without sensor
- Maximum Output Frequency: 0.599 kHz
- Ambient Temperature for Operation: minus 10 to 50 degree Celsius without derating
- Width: 105 mm
- Height: 142 mm
- Depth: 158 mm
