Manufacturer: Schneider Electric, Elau

Type: Servo Motors

Model: BCH0801O22A1C

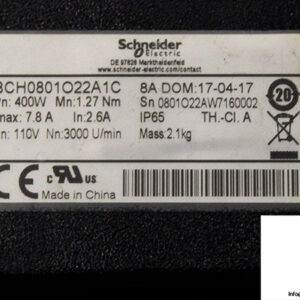

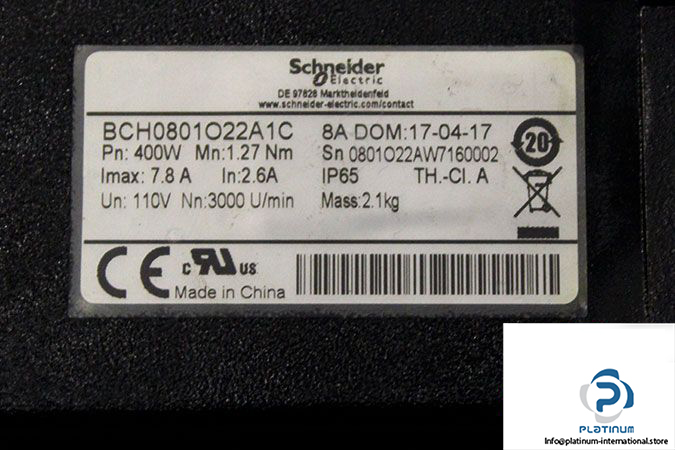

Serial No.: 0801O22AW7160002

Rated Torque [Nm]: 1.27

Rated Current [A]: 2.6

Max Current [A]: 7.8

Rated Voltage [V]: 110

Rated Power [W]: 400

Torque Constant [N.m/A]: 0.49

Rated Speed [rpm]: 3000

Max Speed [rpm]: 5000

Shaft End: Smooth Shaft

Flange Size [mm]: 80

Shaft Diameter [mm]: 14

Shaft Length [mm]: 24.5

Protection Class [IP]: 65

Thermal Class: A

Weight [kg]: 2.22
