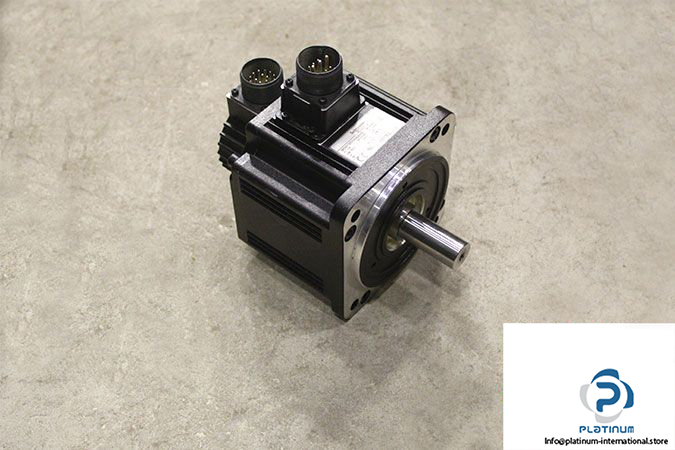

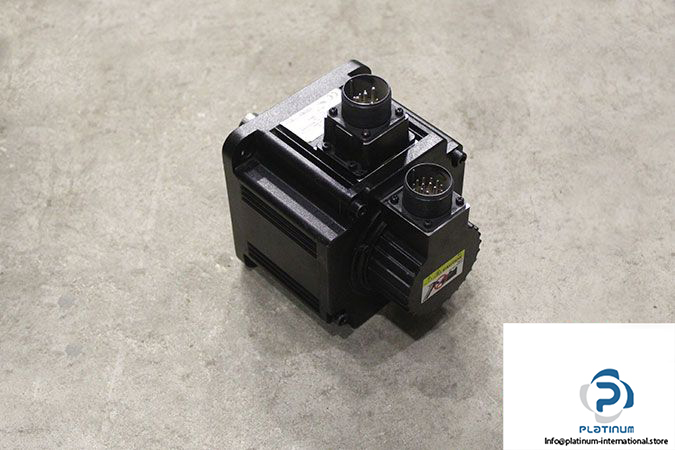

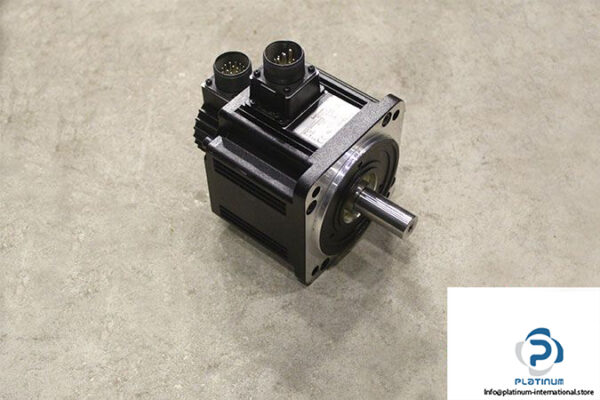

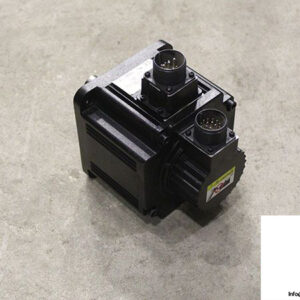

Schneider Electric BCH1302N02A1C AC Servo Motor “ 1 kW, 2000 RPM
The Schneider Electric BCH1302N02A1C is a high-performance **AC servo motor**, designed for **precision motion control in industrial automation applications**. With a **rated torque of 4.77 Nm**, **2000 RPM rated speed**, and a **smooth shaft design**, this servo motor ensures **efficient and reliable operation** for machinery, robotics, and CNC systems.
Key Product Details:
- Manufacturer: Schneider Electric
- Type: AC Servo Motor
- Model: BCH1302N02A1C
Technical Information:
- Rated Torque: 4.77 Nm
- Stall Current: 5.6 A
- Rated Current: 5.6 A
- Max Current: 16.8 A
- Rated Voltage: 110 V
- Rated Power: 1 kW
- Rated Speed: 2000 RPM
- Max Speed: 3000 RPM
- Shaft End: Smooth Shaft
- Shaft Diameter: 22 mm
- Shaft Length: 47 mm
- Protection Class: IP40
- Thermal Class: A
Built for **high-precision motion control**, the Schneider Electric BCH1302N02A1C provides **smooth acceleration, efficient power consumption, and durable construction**, making it an excellent choice for **automation, CNC machinery, and robotic applications**.
