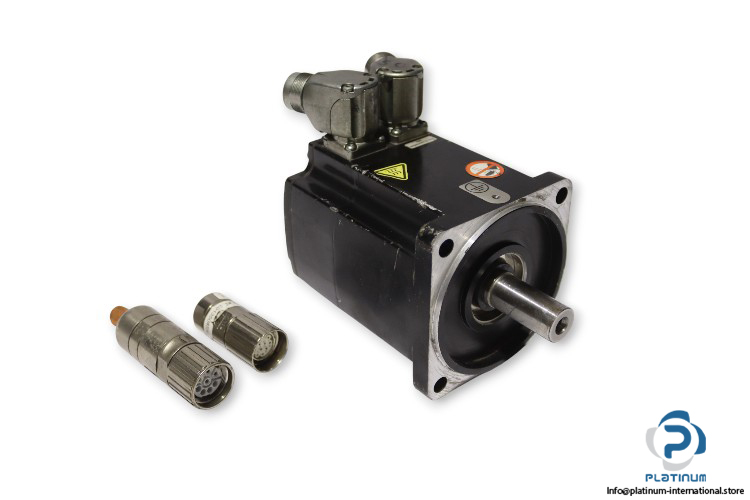

Schneider Electric BMH1001P07A2A Servo Motor

The Schneider Electric BMH1001P07A2A is a high-performance servo motor designed for precision, reliability, and durability in demanding industrial automation systems. Engineered to deliver superior torque, fast acceleration, and consistent speed control, this motor ensures smooth operation and excellent efficiency in motion control applications. Ideal for robotics, packaging, and high-speed assembly machines.

Manufacturer: Schneider Electric
Type: Servo Motor
Model: BMH1001P07A2A
ID. No.: 0050000001471
Serial No.: 2104027088
Series: BMH
Range Compatibility: Lexium 32

Technical Information

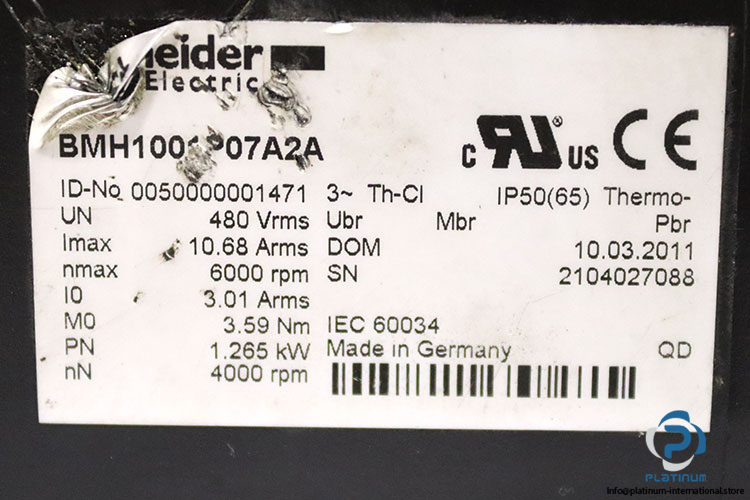

• Rated Voltage (UN): 480 Vrms-3phase
• Rated Power (PN): 1.265 kW
• Rated Speed (nN): 4000 rpm
• Maximum Speed (nmax): 6000 rpm
• Rated Current (I‚): 3.01 Arms
• Maximum Current (Imax): 10.68 Arms
• Rated Torque (M‚): 3.59 Nm
• Cooling Method: Natural convection

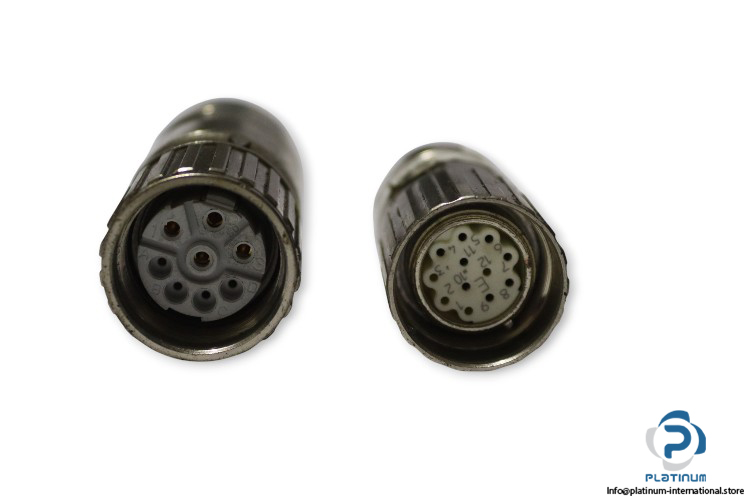

• Electrical Connection: Rotatable right-angled connectors
• Mounting Support: International standard flange
• Number of Mounting Holes: 4
• Mounting Holes Diameter: 9 mm
• Standard Compliance: IEC 60034
• Protection Class: IP50 (shaft) / IP65 (housing)
• Thermal Class: F

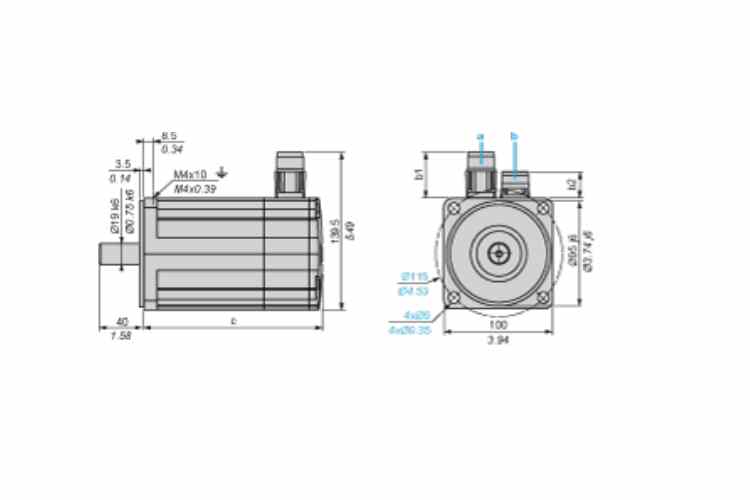

• Dimensions (Straight connectors): b1: 39.5 mm, b2: 25.5 mm
• Dimensions (Rotatable angled connectors): b1: 39.5 mm, b2: 39.5 mm
• C (without brake): 128 mm

This servo motor™s compatibility with the Lexium 32 range makes it a versatile choice for engineers seeking precise control, reduced maintenance, and optimized performance. Its high torque density, low vibration, and compact structure make it a preferred solution for industrial automation projects requiring accuracy and dynamic response.
