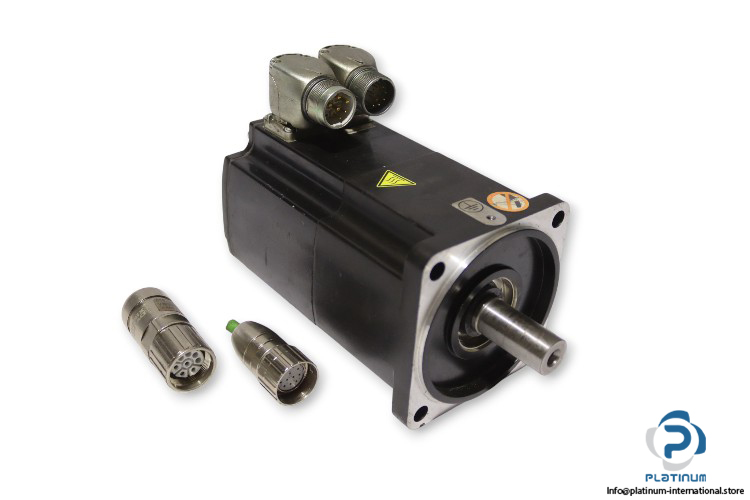

Schneider Electric BMH1001P07F2A Servo Motor

The Schneider Electric BMH1001P07F2A is a high-performance servo motor designed for precision control, exceptional durability, and smooth operation in advanced automation systems. Built to deliver powerful torque and rapid response, this servo motor ensures optimal motion accuracy and long-term reliability for demanding industrial applications. It is part of the BMH Series and fully compatible with the Lexium 32 servo drives range, providing a complete and efficient motion control solution.

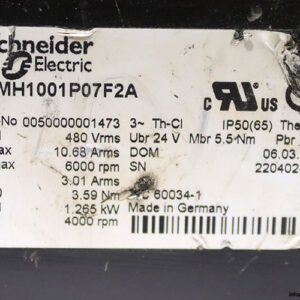

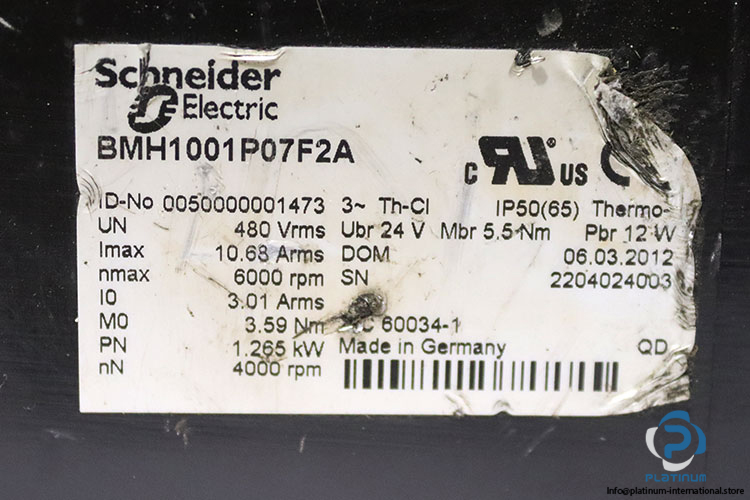

Manufacturer: Schneider Electric
Type: Servo Motor
Model: BMH1001P07F2A
ID. No.: 0050000001473
Serial No.: 2204024003
Series: BMH
Range Compatibility: Lexium 32

Technical Information

• Rated Voltage (UN): 480 Vrms 3-phase
• Rated Power (PN): 1.265 kW
• Rated Speed (nN): 4000 rpm
• Maximum Speed (nmax): 6000 rpm
• Rated Current (I0): 3.01 Arms
• Maximum Current (Imax): 10.68 Arms
• Rated Torque (M0): 3.59 Nm
• Brake Torque (Mbr): 5.5 Nm
• Brake Voltage (Ubr): 24 VDC
• Brake Power (Pbr): 12 W
• Cooling Method: Natural convection

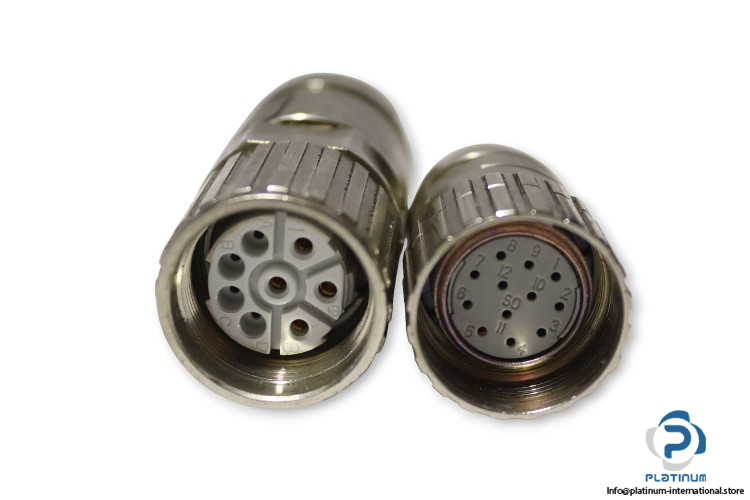

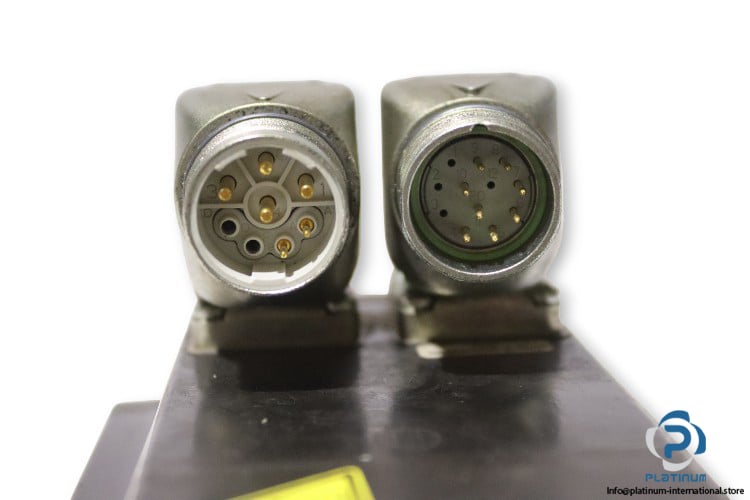

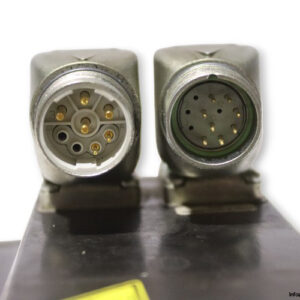

• Electrical Connection: Rotatable right-angled connectors
• Mounting Support: International standard flange
• Number of Mounting Holes: 4
• Mounting Holes Diameter: 9 mm
• Standard Compliance: EN 60034-1
• Protection Class: IP50 (shaft) / IP65 (housing)
• Thermal Class: F

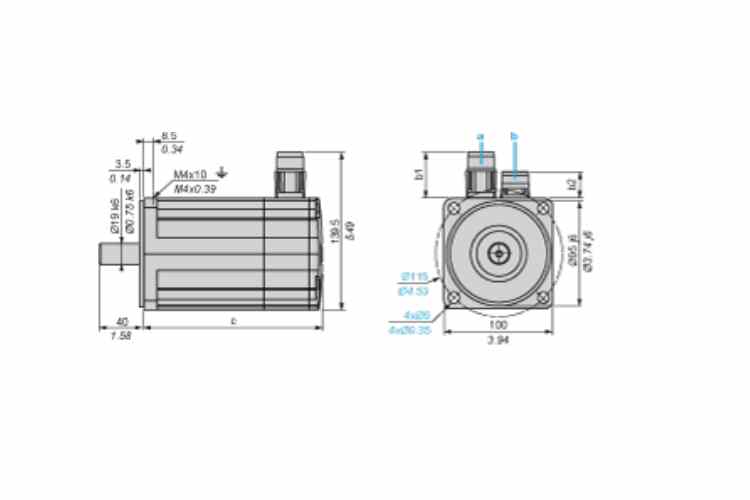

Dimensions

• Straight Connectors: b1: 39.5 mm, b2: 25.5 mm
• Rotatable Angled Connectors: b1: 39.5 mm, b2: 39.5 mm
• C (without brake): 128 mm
• C (with brake): 170 mm

Designed for precision-driven motion control, the Schneider Electric BMH1001P07F2A ensures excellent dynamic response and energy efficiency. With its robust construction, IP65 housing, and integrated brake, it is ideal for automation environments such as robotics, packaging machines, and production lines that demand accuracy, reliability, and performance.
