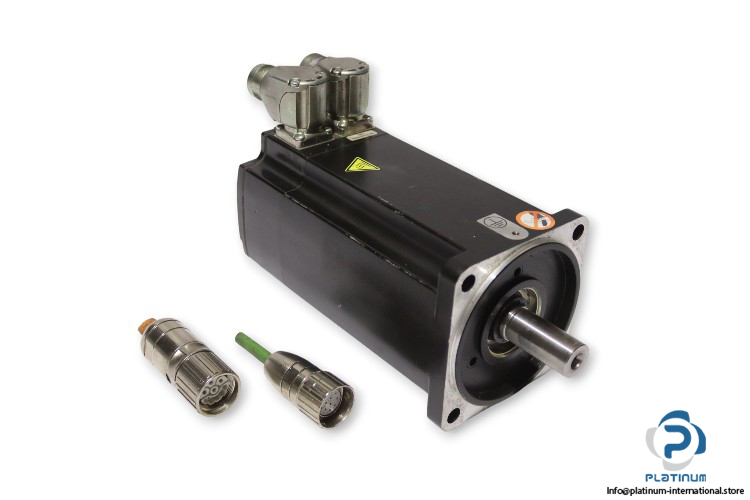

Schneider Electric BMH1003P07A2A Servo Motor Without Brake
The Schneider Electric BMH1003P07A2A is a high-performance servo motor designed for precision control and dynamic motion applications. Built with advanced engineering and durable construction, this servo motor ensures efficient torque delivery, smooth acceleration, and stable performance under demanding industrial conditions. It provides outstanding reliability for automation, robotics, packaging, and CNC systems, where accuracy and responsiveness are essential.
Manufacturer: Schneider Electric
Type: Servo Motor Without Brake
Model: BMH1003P07A2A
ID No.: 0050000001558
Serial No.: 2204024002
Series: BMH
Range Compatibility: Lexium 32
Technical Information
- Rated Voltage (UN): 480 Vrms – 3 phase
- Rated Power (PN): 2.669 kW
- Rated Speed (nN): 5000 rpm
- Maximum Speed (nmax): 6000 rpm
- Rated Current (I0): 7.7 Arms
- Maximum Current (Imax): 26.77 Arms
- Rated Torque (M0): 8.27 Nm
- Cooling Method: Natural convection

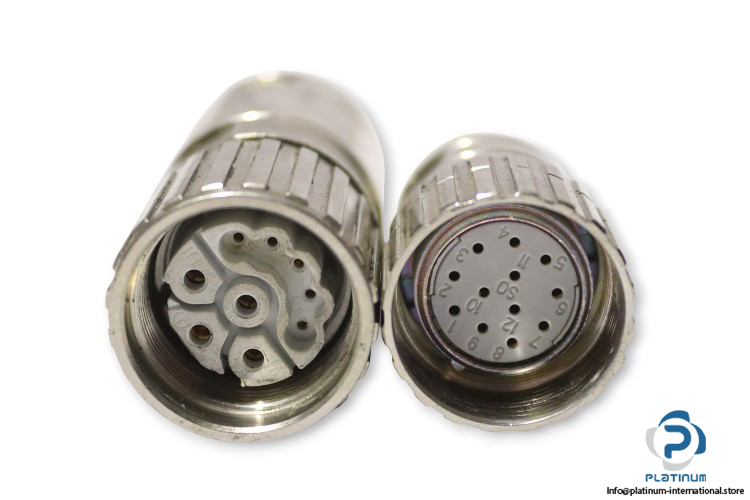

- Electrical Connection: Rotatable right-angled connectors
- Mounting Support: International standard flange
- Number of Mounting Holes: 4
- Shaft End: Smooth shaft
- Shaft Diameter: 19 mm
- Shaft Length: 40 mm
- Standard Compliance: IEC 60034
- Protection Class: IP50 (shaft) / IP65 (housing)
This servo motor offers exceptional motion precision, minimal vibration, and long service life. Its compact and robust design makes it ideal for space-constrained environments while maintaining maximum operational efficiency. Perfect for automation professionals seeking a reliable, maintenance-free drive solution for industrial machinery, conveyors, or robotic systems.
