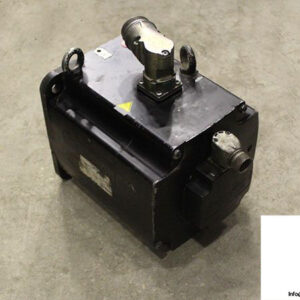

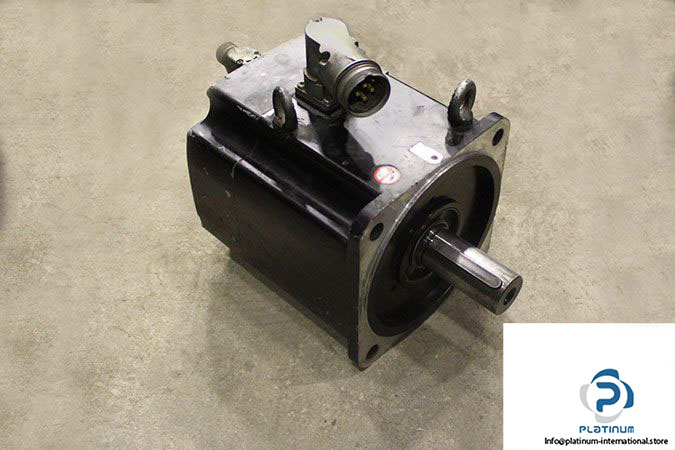

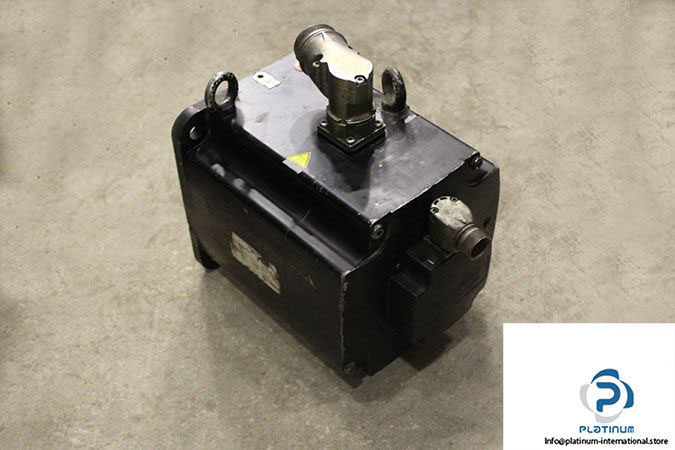

SCHNEIDER ELECTRIC ELAU BMH1901P36F2A SERVO MOTOR

Engineered for high-performance automation applications, the Schneider Electric Elau BMH1901P36F2A servo motor delivers powerful, precise motion with robust torque characteristics and compact form. Ideal for demanding environments, it offers high torque density, efficiency, and advanced thermal protection for continuous operation.

Manufacturer: Schneider Electric, Elau
Type: Servo Motors

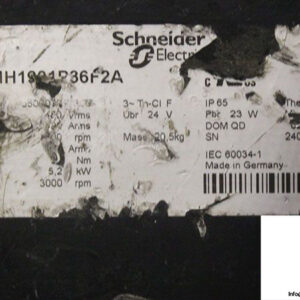

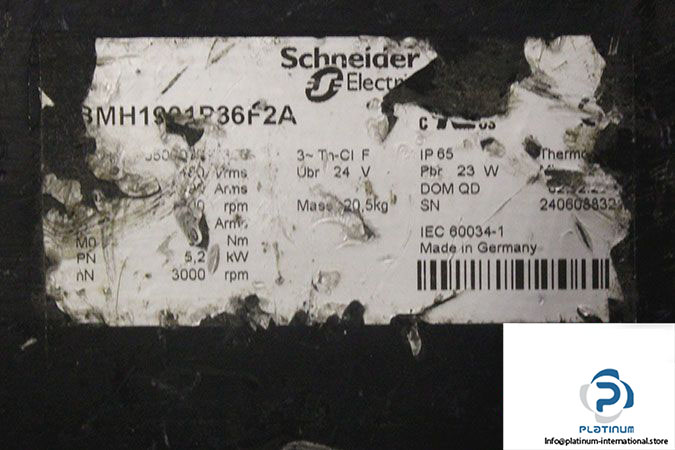

Model: BMH1901P36F2A
Ref No.: 240608832

Technical Information

• Rated Voltage: 480 V
• Rated Power: 2.62 kW
• Nominal Output Power: 5180 W
• Continuous Power: 5.24 W
• Nominal Speed: 3000 rpm
• Max Speed: 4000 rpm
• Continuous Stall Torque: 30 Nm
• Peak Stall Torque: 89.7 Nm
• Nominal Torque: 16.5 Nm
• Continuous Stall Current: 23.2 A
• Brake Voltage: 24 VDC
• Brake Power: 23 W
• Shaft End: Keyed
• Number of Poles: 10
• Flange Size: 190 mm
• Shaft Diameter: 38 mm
• Shaft Length: 80 mm
• Key Width: 70 mm
• Protection Class: IP65
• Insulation Class: F
