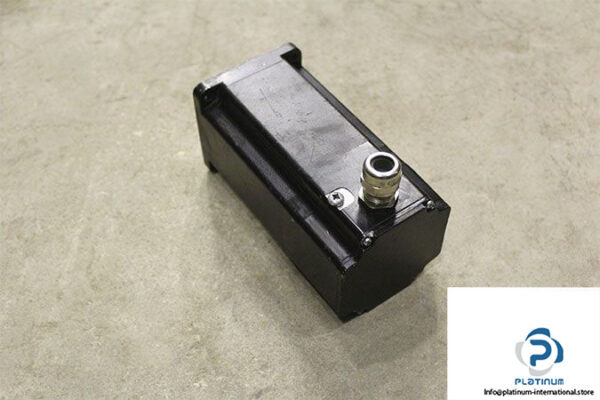

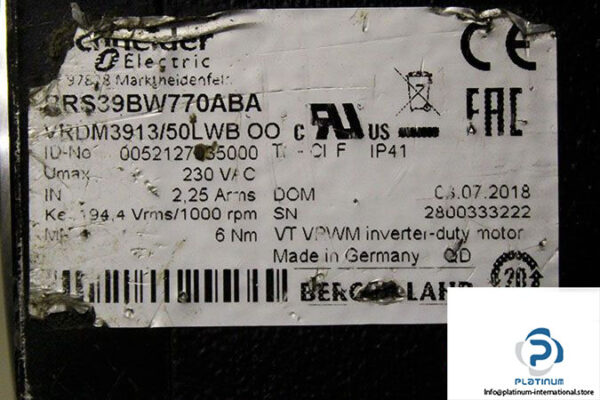

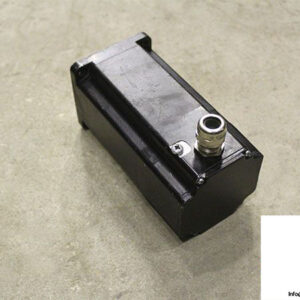

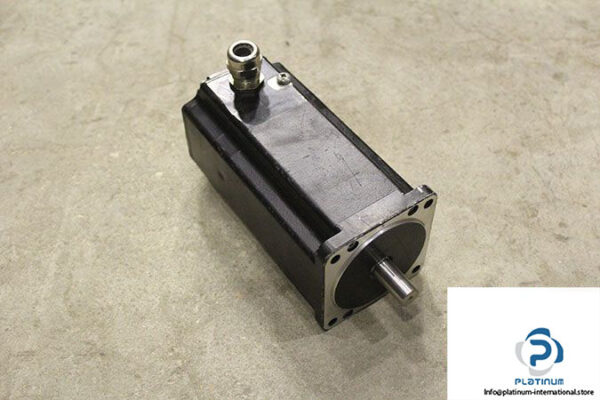

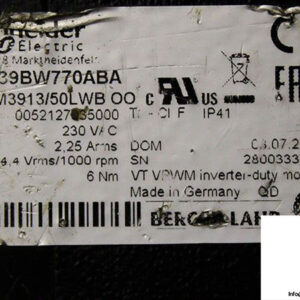

Manufacturer: Schneider Electric

Type: Three Phase Stepper Motors

Model: BRS39BW770ABA

Rated Voltage [V]: 230

Nominal Torque [Nm]: 6

Peak Stall Torque [Nm]: 5.78

Continuous Stall Torque [Nm]: 5.78

Holding Torque [Nm]: 6.78

Rated Current [A]: 2.25

Max Speed [rpm]: 3000

Constant Voltage [Vrms/1000]: 94.4

Number of Poles: 6

Mounting Support: Flange

Length [mm]: 171

Flange Size [mm]: 85

Shaft Diameter [mm]: 14

Shaft Length [mm]: 30

Protection Class [IP]: 56

Thermal Class: F

Weight [kg]: 4.26
