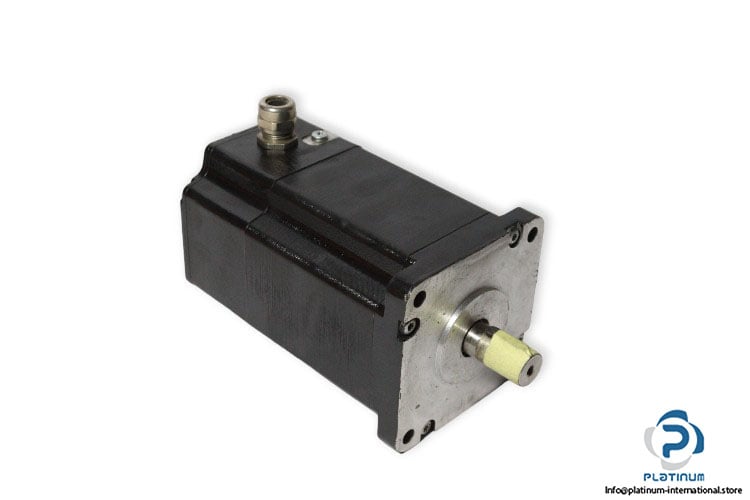

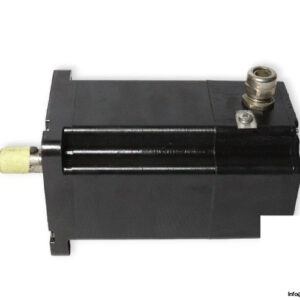

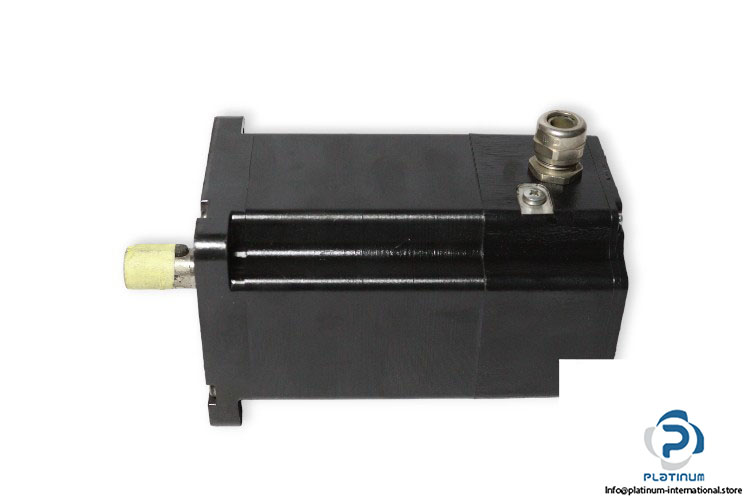

Manufacturer: Schneider Electric
Type: 3-Phase Stepper Motor

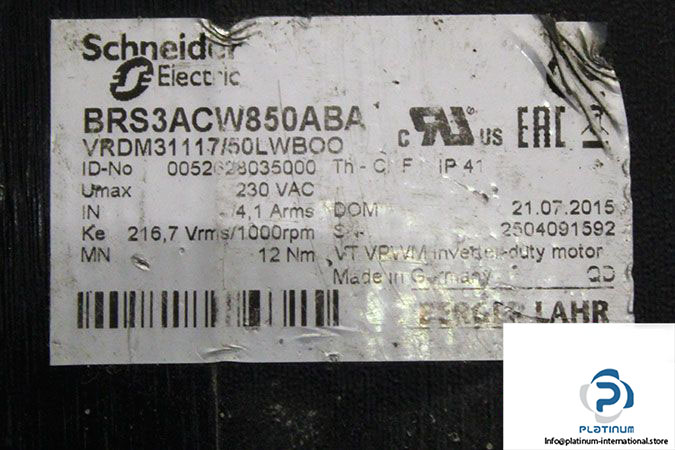

Model: BRS3ACW850ABA
Part No.: VRDM31117/50LWBOO
Rated Voltage [V]: 230
Rated Current [A]: 4.1
Max Speed [rpm]: 3000
Nominal Torque [Nm]: 12
Peak Stall Torque [Nm]: 11.42
Continuous Stall Torque [Nm]: 11.42
Holding Torque [Nm]: 13.5
Rotor Inertia [kg.cm²]: 10.5
Constant Voltage [Vrms/1000]: 216.7
Number of Poles: 6
Mounting Support: Flange
Length [mm]: 180
Flange Size [mm]: 110
Shaft Diameter [mm]: 19
Shaft Length [mm]: 40
Protection Class [IP]: 41
Thermal Class: F
