Manufacturer: Schneider Electric

Type: 3-Phase Stepper Motors

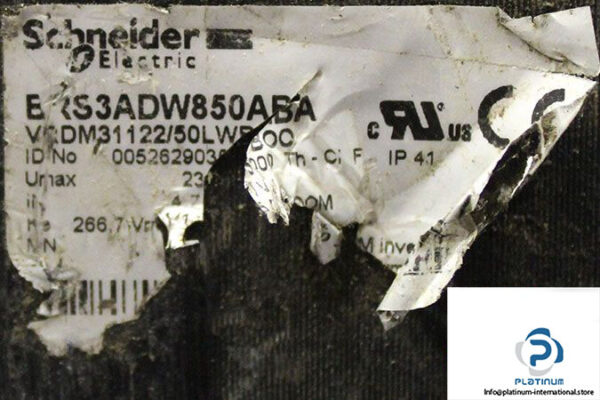

Model: BRS3ADW850ABA

Rated Voltage [V]: 230

Rated Current [A]: 4.75

Nominal Speed [rpm]: 3000

Nominal Torque [Nm]: 16.5

Holding Torque [Nm]: 19.7

Rotor Inertia [kg.cm²]: 16

Mounting Support: Flange

Number of Poles: 6

Flange Size [mm]: 110

Shaft Diameter [mm]: 19

Shaft Length [mm]: 40

Weight [kg]: 11.12
