Manufacturer: Schneider Electric, Elau
Type: AC Servo Motors

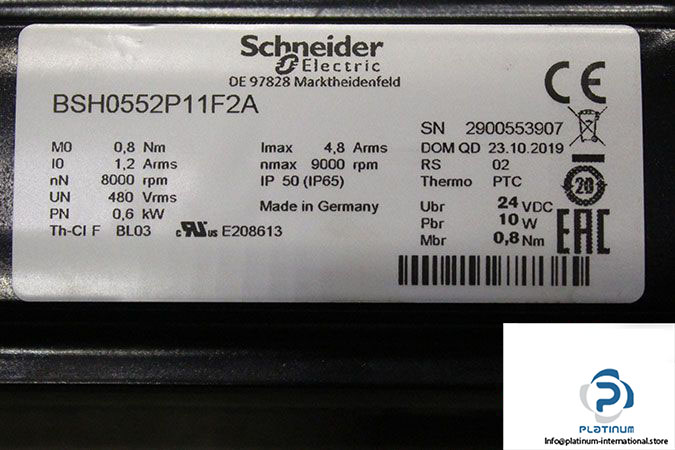

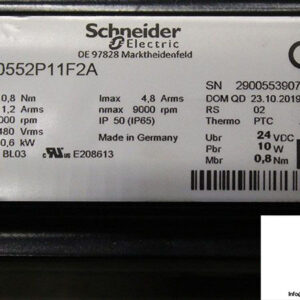

Model: BSH0552P11F2A

Stall Torque [Nm]: 0.8
Stall Current [A]: 1.2
Max Current [A]: 4.8
Rated Voltage [V]: 480
Rated Power [kW]: 0.6
Rated Speed [rpm]: 8000
Max Speed [rpm]: 9000
Number of Poles: 6
Holding Torque [Nm]: 0.8 Holding Brake
Flange Size [mm]: 55
Shaft Diameter [mm]: 9
Shaft Length [mm]: 20
Key Width [mm]: 12
Protection Class [IP]: 50
Thermal Class: F
