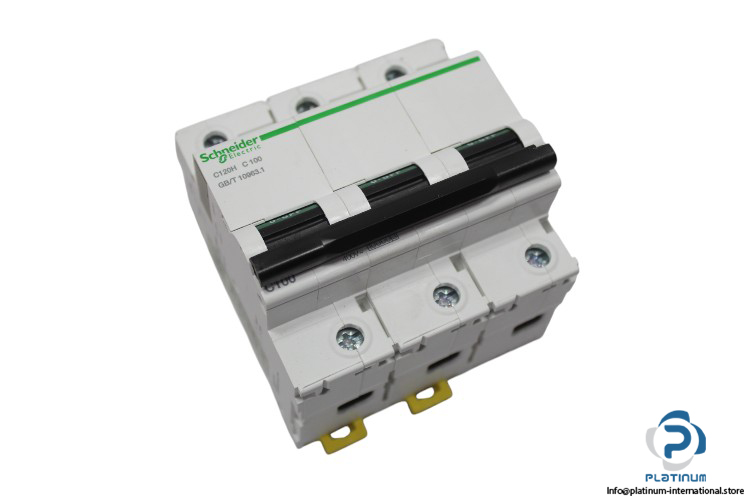

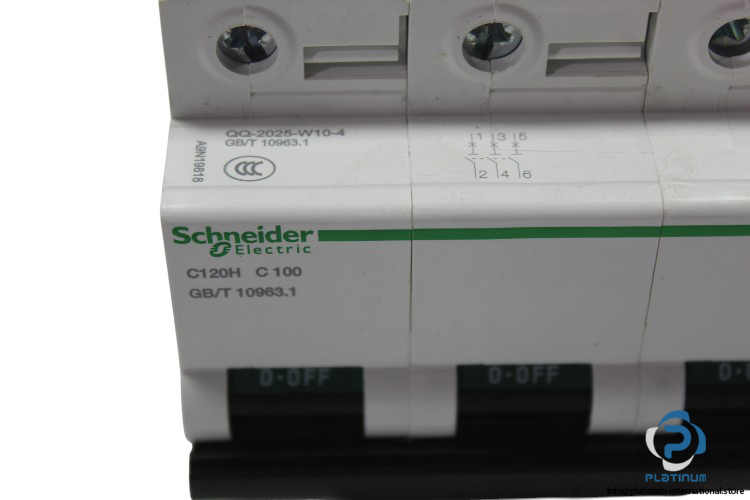

Schneider Electric A9N19818 “ Miniature Circuit Breaker
The Schneider Electric A9N19818 miniature circuit breaker is designed for high-performance circuit protection in industrial and commercial electrical systems. With a 100 A rated current and a 10,000 A breaking capacity, it ensures reliable protection and complies with global standards.
- Manufacturer: Schneider Electric
- Type: Miniature Circuit Breaker
- Model: A9N19818
- MNR: C 100 GB/T 10963.1
- Range: Acti 9
- Order No.: QQ25104 / QQ-2025-W10-4
- Ref. No.: 3606485459271 / 400 810 1315
- Device Short Name: C120H
Technical Information:
- Rated Operational Voltage (Ue): 400 V AC, 50/60 Hz
- Rated Current: 100 A
- Rated Insulation Voltage (Ui): 500 V AC
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Rated Breaking Capacity (Icu, Icn): 10,000 A
- Mounting Mode: Clip-on
- Standard: IEC 60898-1, GB 10963.1
- Control Type: Toggle
- No. of Poles: 3
- Pollution Degree: 3
- Wire Stripping Length: 14 mm (Power Circuit)
- Degree of Protection: IP20
- Operation Temperature: -30 to 70°C
- Pitches: 9 mm
- Height: 86 mm
- Depth: 73 mm
