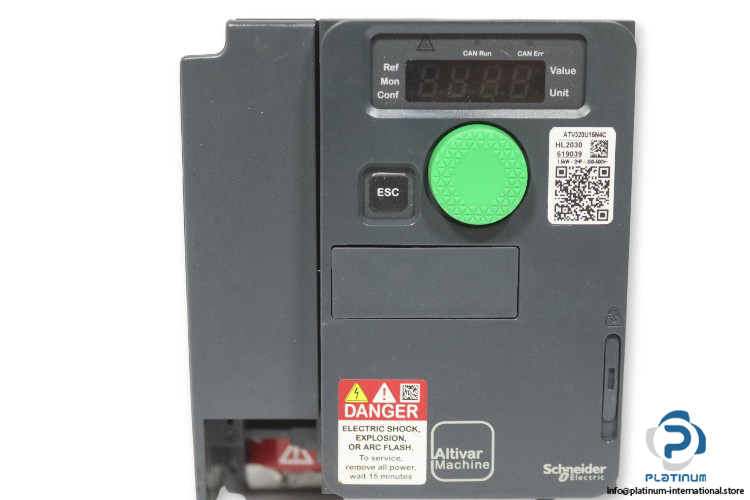

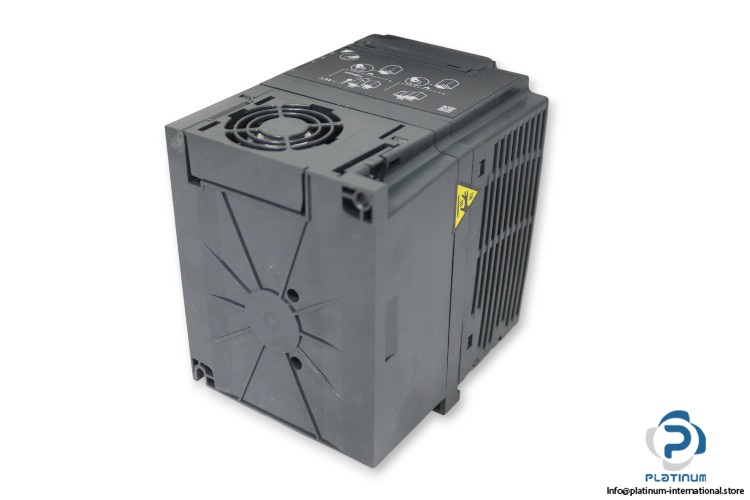

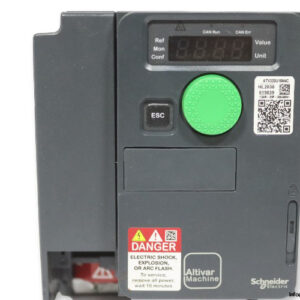

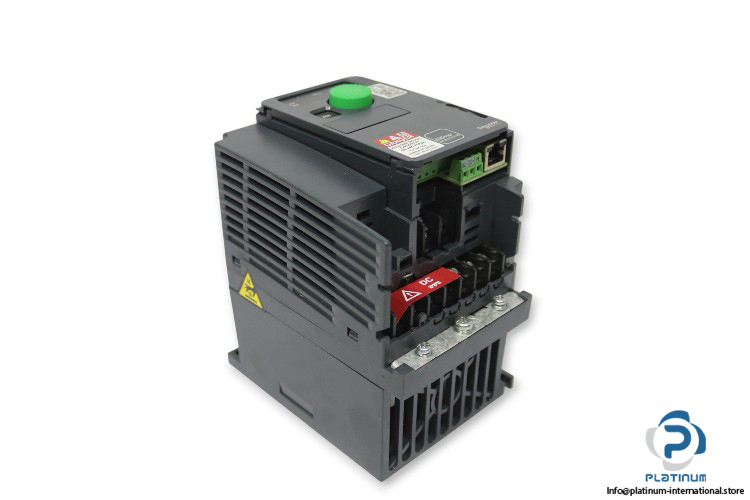

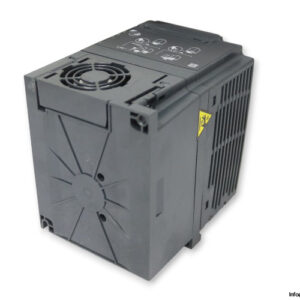

Schneider Electric ATV320U15N4C Variable Speed Drive

The Schneider Electric ATV320U15N4C Variable Speed Drive from the Altivar Machine ATV320 range is engineered for precise motor control, high performance, and reliable operation in demanding industrial environments. It provides advanced speed regulation, robust protection features, and flexible input/output options for seamless integration into automation systems.

Manufacturer: Schneider Electric
Type: Variable Speed Drive
Model: ATV320U15N4C
Range: Altivar Machine ATV320

Technical Information

• Input Voltage: 3-Phase 380 / 480 V AC
• Rated Input Current: 6.4 A
• Frequency: 50 / 60 Hz
• Rated Output Voltage: 3-Phase 0 / 480 V AC
• Rated Output Current: 4.1 A
• Power: 1.5 kW / 2 HP
• Discrete Inputs: 7
• Discrete Outputs: 3
• Analogue Inputs: 3
• Analogue Outputs: 1
• Protection Class: IP20
• Ambient Temperature: -10 / 50 °C
• Dimensions: 142 x 105 x 158 mm
