Manufacture: Schneider Electric
Type: Control relay

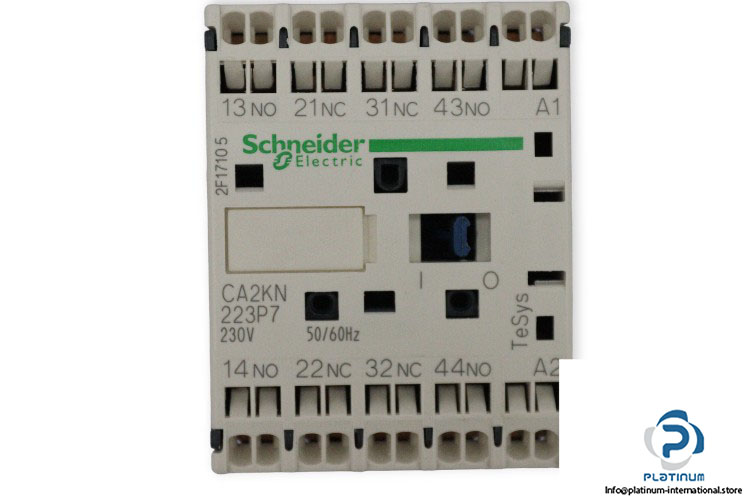

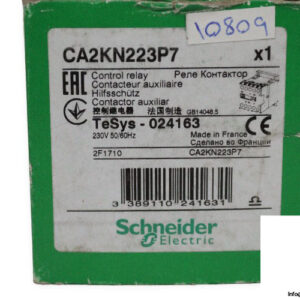

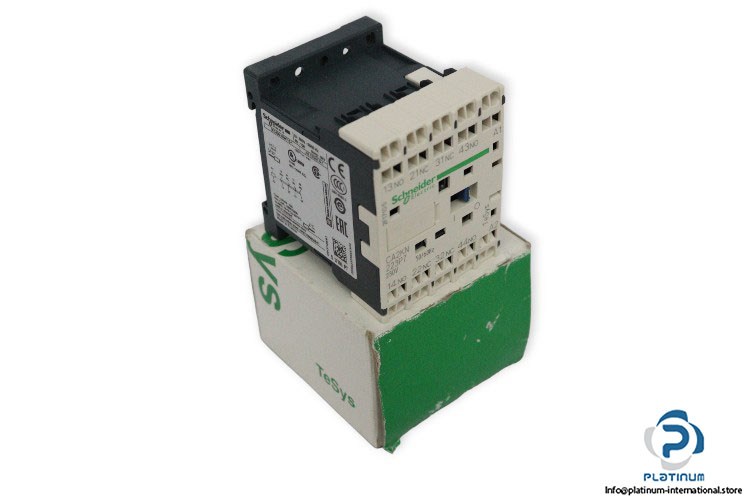

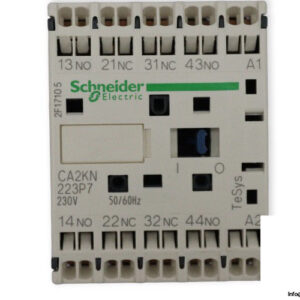

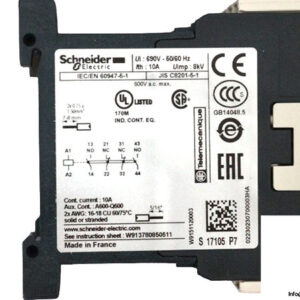

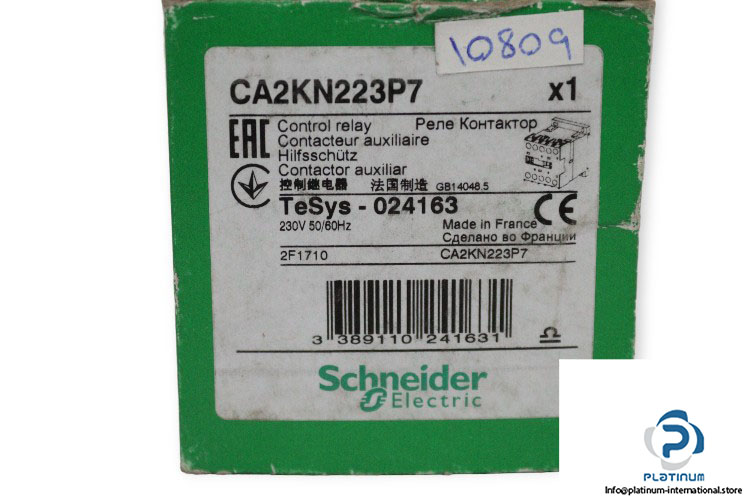

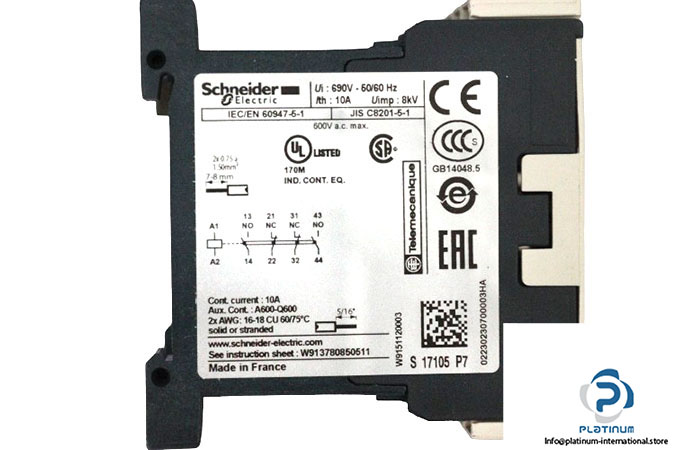

Model: CA2KN223P7
Product Name: TeSys CAK
Device Short Name: CA2K

Application: Control circuit
Control circuit voltage Uc: 230 V AC
Frequency: 50/60 Hz
Thermal current Ith: 10 A (at 50 °C)
Rated Operational Voltage Ue: <= 690 V <= 400 Hz
Rated Insulation Voltage Ui: 690 V
Inrush Power: 30 VA
Contact: 2 NO,2 NC
Connections – Terminals: Spring terminals 1 cable(s) 0.75…1.5 mm²solid, Spring terminals 1 cable(s) 0.75…1.5 mm²flexible without cable end
Minimum Switching Voltage: 17 V
Minimum Switching Current: 5 mA
Operation temperature: -25 … 50°C
Dimensions: 58 x 45 x 57 mm
