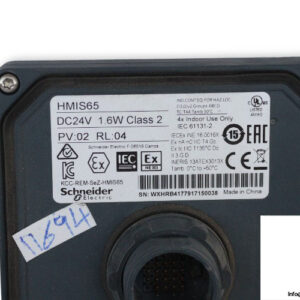

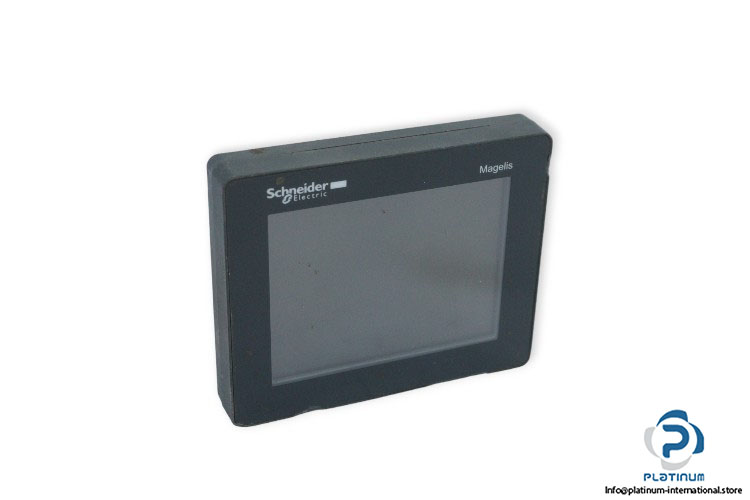

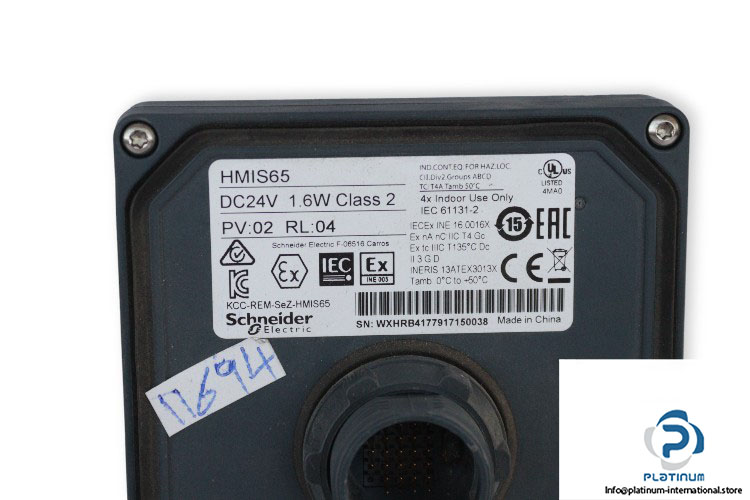

Manufacturer: Schneider electric
Type: Small Touchscreen Display
Model: HMIS65
Range of Product: Harmony SCU
Uses: 4x indoor use only
Supply Voltage: 24 V DC
Power: 1.6 W
Display Size: 3.5 inch
Pixel Resolution: 320 x 240 pixels QVGA
Display Type: Backlit LED color TFT LCD
Touch Panel: Analogue
Standard: IEC 61131-2
Backlight Lifespan: 50000 hours 65536 colors
Brightness: 16 levels via touch panel
Character Font: Korean, Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII, Taiwanese (traditional Chinese)
Temperature range: 0 … 50°C
Dimensions: 31.5 x 80 x 97.6 mm
