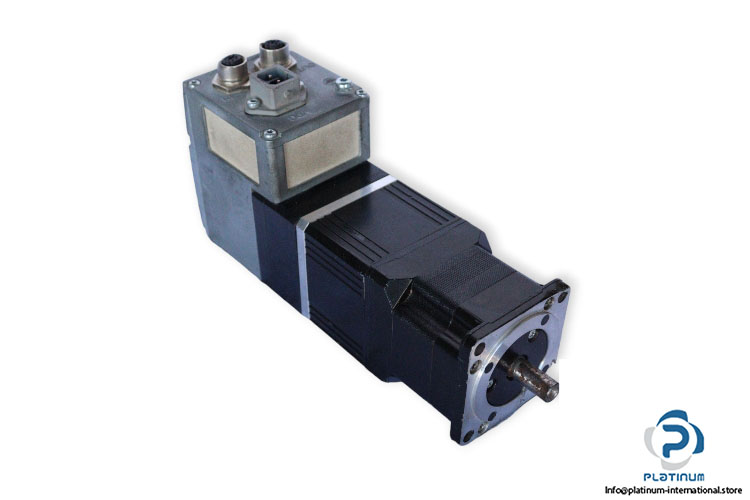

Schneider Electric, Berger Lahr ILA2E571PC1F0 AC Synchronous Servo Motor

The **Schneider Electric, Berger Lahr ILA2E571PC1F0** is a high-performance **AC synchronous servo motor** designed for precision motion control in industrial applications. Featuring a nominal speed of 7000 rpm and a peak stall torque of 0.45 Nm, it ensures reliable operation even in demanding environments.

Manufacturer: Schneider Electric, Berger Lahr

Type: AC Synchronous Servo Motor

Model: ILA2E571PC1F0

Part No.: IFAN61/3ETCISDS/5DCBI54/O 001RPP41

ID No.: 0066606100027

Reference No.: 3000055251

Technical Data:

• Flange Size: 57 mm
• Winding Type: P, Medium Rotation Speed
• Nominal Speed of Rotation: 7000 rpm
• Nominal Torque: 0.38 Nm
• Peak Stall Torque: 0.45 Nm
• Rated Supply Voltage: 48 VDC
• Current Consumption: 7.6 A
• Maximum Mechanical Speed: 5100 rpm
• Ambient Temperature: 40°C
• Thermal Class: B
• Protection Class: IP41
• Brake: RS 01
• Torque MB: 1.2 Nm
• Encoder Type: Single Turn Encoder (16,384 points/turn)
