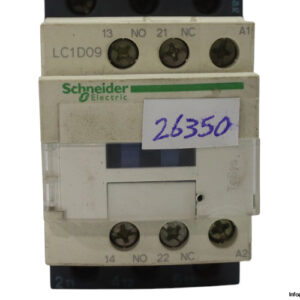

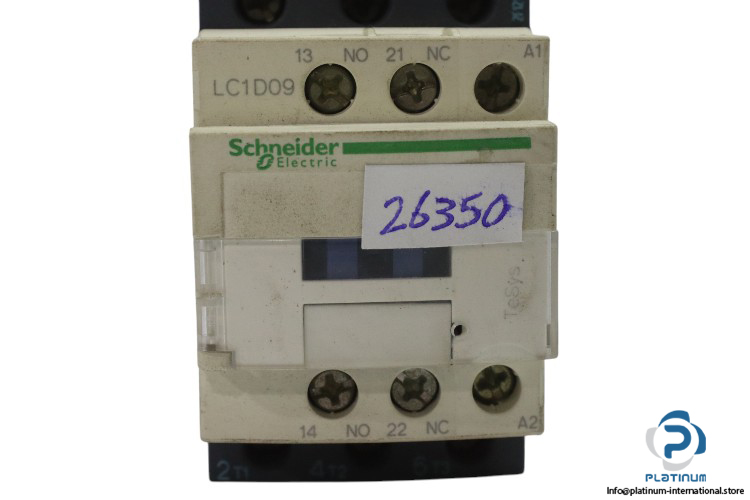

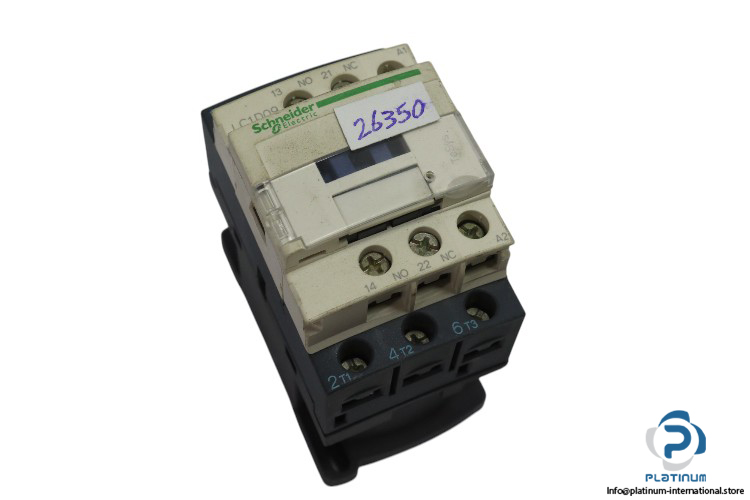

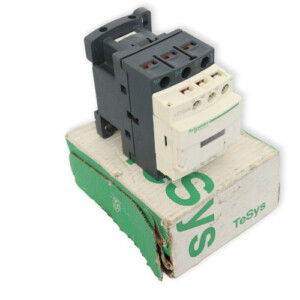

Schneider Electric LC1D09 B7 “ Contactor
The Schneider Electric LC1D09 B7 contactor is a high-performance device designed for efficient electrical switching in industrial systems. Part of the TeSys Deca range, this contactor offers reliable operation under a wide range of voltage and current conditions, making it ideal for demanding applications.
- Manufacturer: Schneider Electric
- Type: Contactor
- Model: LC1D09 B7
- Series: LC1D
Technical Information:
- Range of Product: TeSys Deca

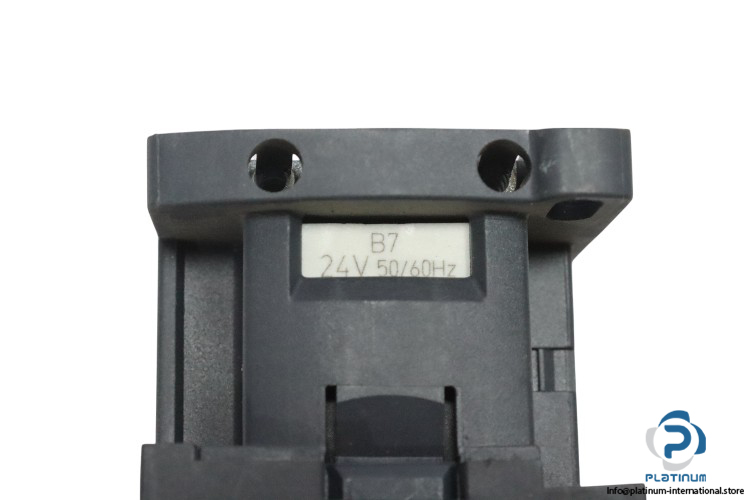

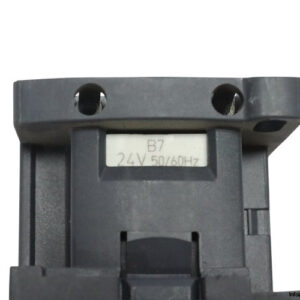

- Rated Coil Voltage: 24 V AC
- Rated Operational Voltage: 440 V AC
- Rated Operational Current AC-3: 9 A
- Rated Thermal Current: 25 A
- Frequency: 50/60 Hz

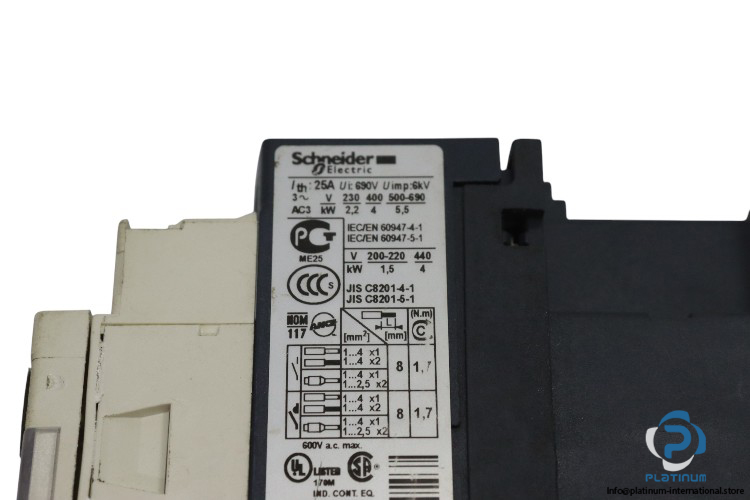

- Power AC-3:
- 230 V AC: 2.2 kW
- 400 V AC: 4 kW
- 500/690 V AC: 5.5 kW
- Rated Impulse Voltage (Uimp): 6 kV
- Rated Insulation Voltage (Ui): 690 V
- No. of Poles: 3-Pole
- Auxiliary Contact: 1 Normally Open (NO) + 1 Normally Closed (NC)
- Switching Voltage Min.: 17 V
- Switching Current Min.: 5 mA
- Rated Breaking Capacity: 250 A
- Protection Class: IP20
- Ambient Temperature: -40 to 60 °C
- Dimensions: 77 x 45 x 86 mm
