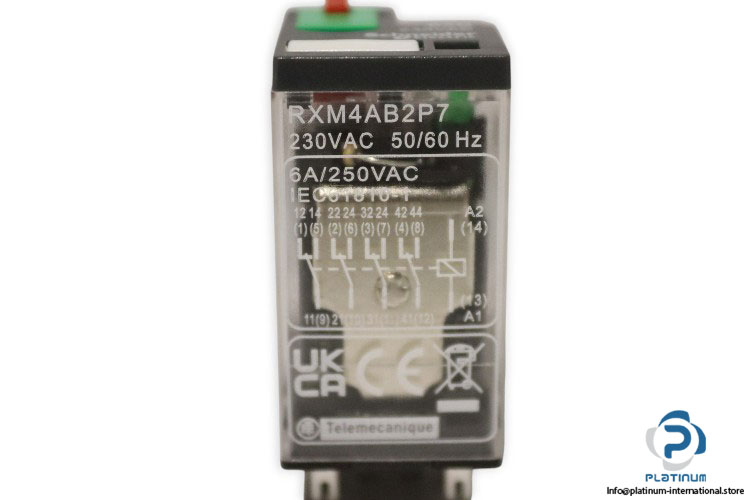

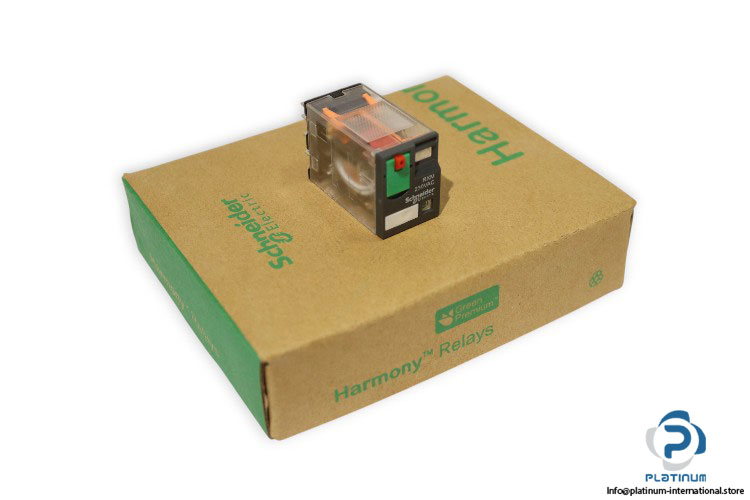

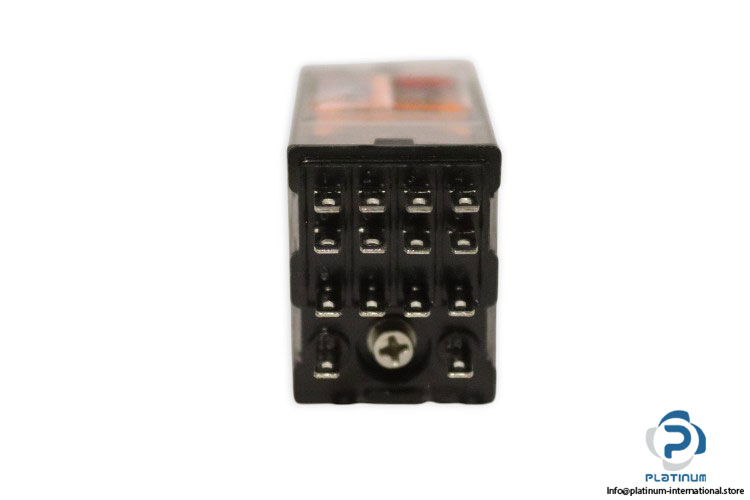

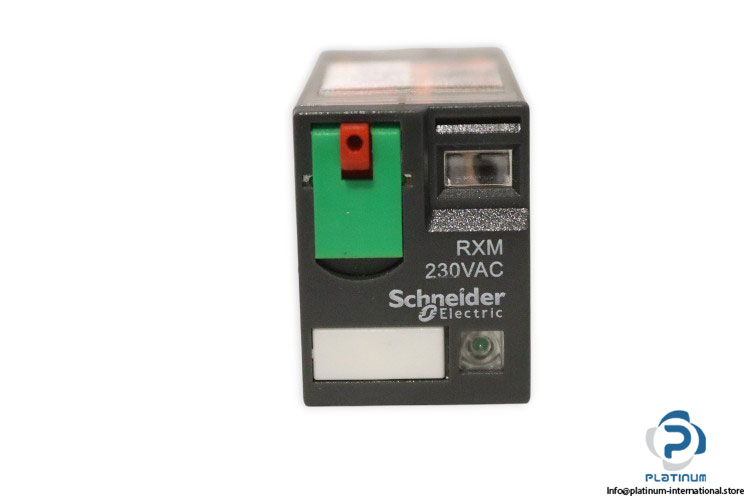

SCHNEIDER ELECTRIC / TELEMECANIQUE RXM4AB2P7 MINIATURE RELAY OPTIMUM WITH LED
The Schneider Electric / Telemecanique RXM4AB2P7 is a miniature plug-in relay from the Harmony Electromechanical Relays range. Designed with LED indication, high durability, and IP40 protection, it delivers reliable switching performance for industrial and electrical applications.
Manufacturer: Schneider Electric / Telemecanique
Type: Miniature Relay Optimum with LED
Model: RXM4AB2P7
Series: RXM
Code: 8A-2025-W06-AM / 170M
Technical Information
- Range of Product: Harmony Electromechanical Relays
- Product or Component Type: Plug-in Relay
- Contacts Type: 4 C/O
- Frequency: 50/60 Hz
- Control Circuit Voltage: 230 V
- Rated Impulse Withstand Voltage: 2.5 kV (1.2/50 µs)
- Electrical Durability: 100000 cycles resistive
- Conventional Enclosed Thermal Current: 6 A @ 250 V
- Operating Time: 20 ms

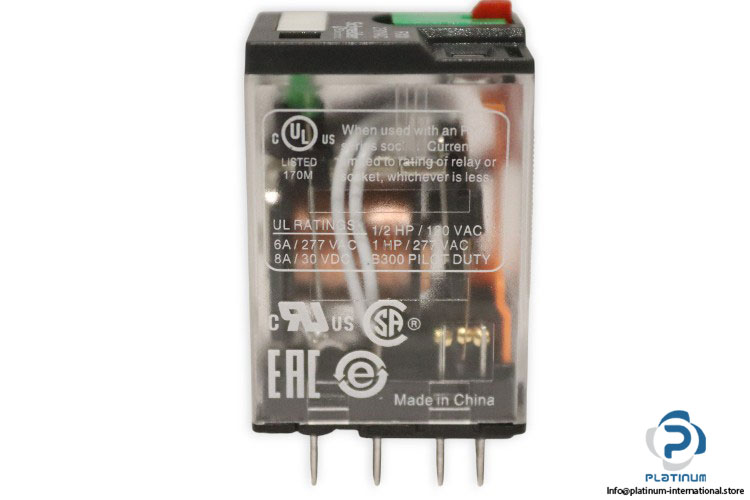

- UL Ratings: 1/2 HP / 180 VAC, 6 A / 277 VAC, 1 HP / 277 VAC, 8 A / 30 VDC
- Duty: Pilot Duty
- Average Consumption: 1.2 VA 60 Hz
- Continuous Output Current: 5 A
- Minimum Switching Capacity: 170 mW, 10 mA, 17 V
- Ambient Air Temperature for Operation: -40 to 55 °C
- IP Degree of Protection: IP40
