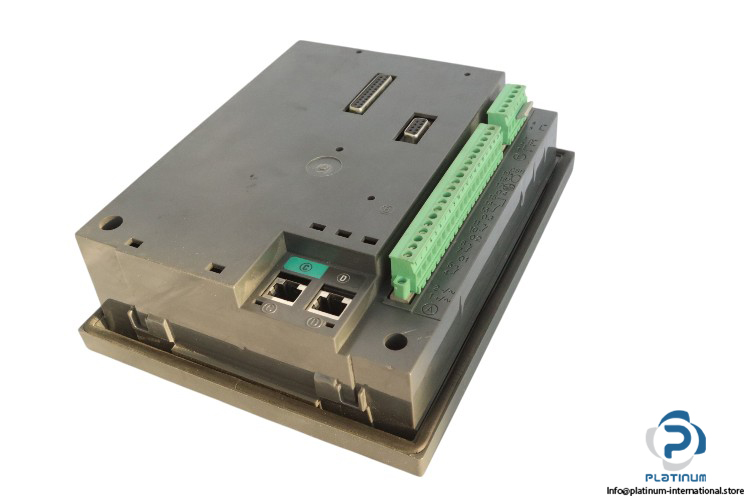

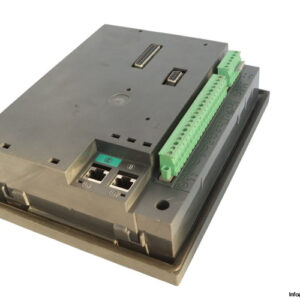

Merlin Gerin / Schneider Electric Protection Relay Module S10MDXXXJXXXNT

The Merlin Gerin / Schneider Electric S10MDXXXJXXXNT is a Protection Relay Module designed for advanced protection applications in industrial environments. Part of the Sepam Series 40 product range, this device offers a reliable solution with excellent display resolution and local signaling features.

🔧 Technical Specifications:

• Manufacturer: Merlin Gerin / Schneider Electric
• Type: Protection Relay Module
• Model: S10MDXXXJXXXNT

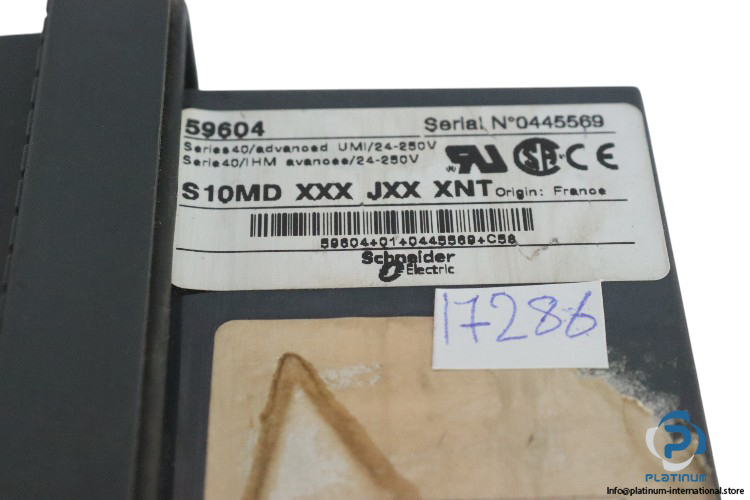

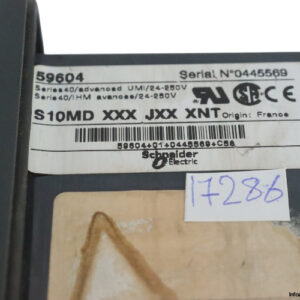

• Part No.: 59604

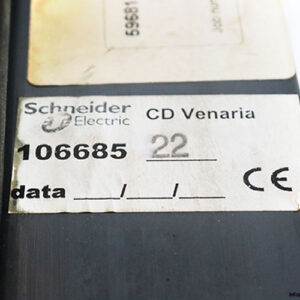

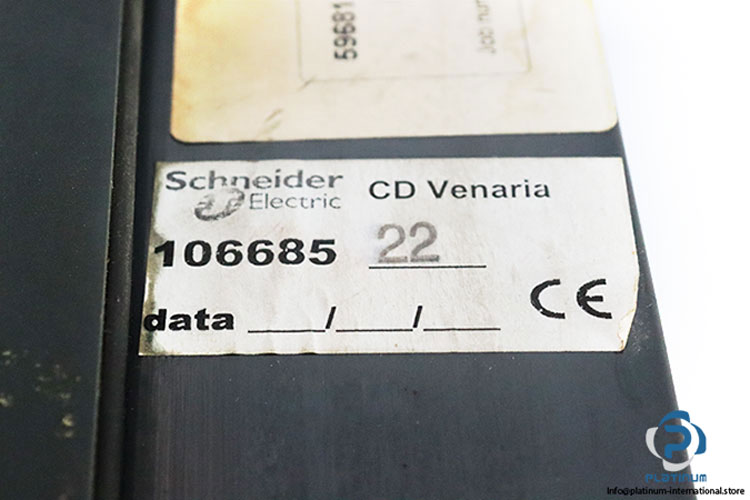

• CD No.: 106685 22
• Product Range: Sepam Series 40
• Device Name: S10MD
• Supply Voltage: 24/250 V DC
• Impulse Withstand Voltage Uimp: 5 kV
• Display Resolution: 128 x 64 pixels
• Number of Keys: 9

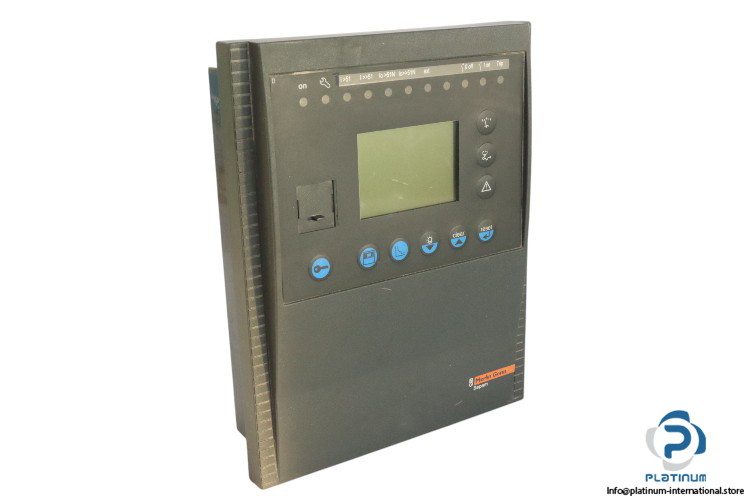

• Local Signaling: 2 LEDs for Sepam operating status (front panel), 9 LEDs for parameter indication (front panel)
• Mounting Bracket: Platinum
• Protection Degree: Other Panels: IP20, Front Panel: IP52
• Dimensions (WxHxD): 176 x 222 x 129 mm
