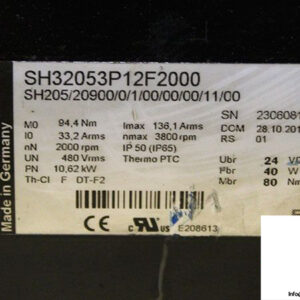

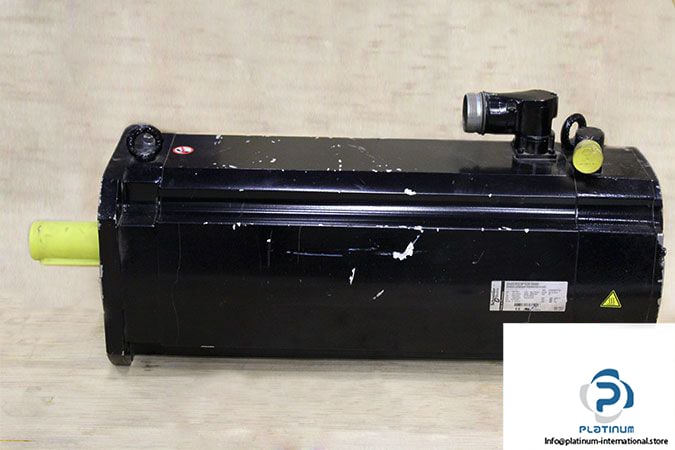

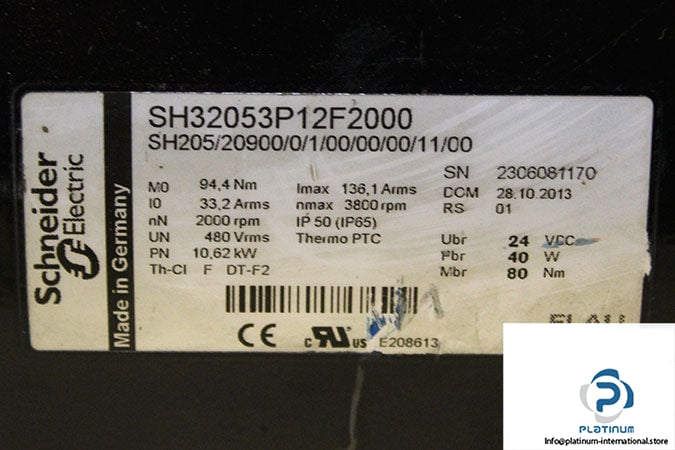

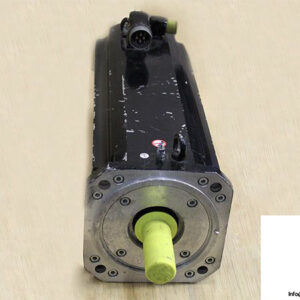

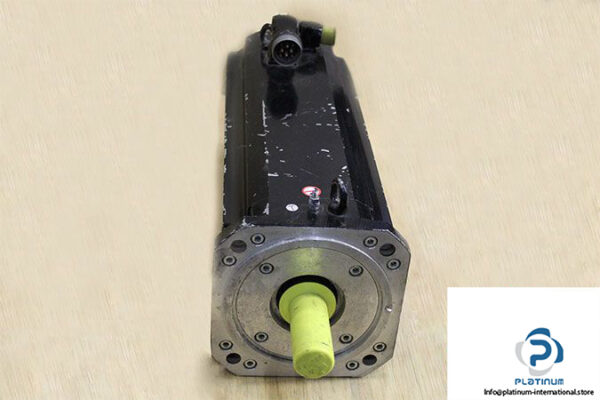

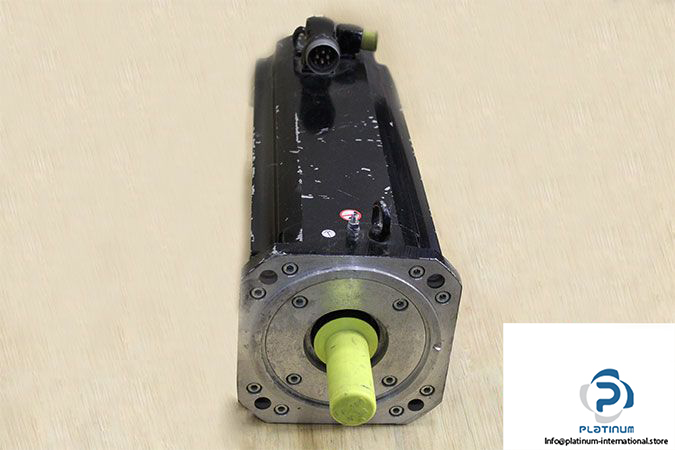

Manufacturer: ELAU – SCHNEIDER ELECTRIC

Type: SERVO MOTOR SH3 205

Model: SH32053P12F2000

Alternative Model: SH205/20900/0/1/00/00/00/11/00

Rated Voltage : 480 Vrms

Max. Current: 136.1 Arms

Stall Current: 33.2 Arms

Normal Speed: 2000 Revolution Per Minute (rpm)

Max. Speed: 3800 Revolution Per Minute (rpm)

Nominal Torque: 94.4 Nm

Holding Torque: 80.Nm

Holding Brake: With

Nominal Power: 10.62 kW

Flange Size: 205 mm

Motor Length: 538.5 mm

Shaft Diameter: 38 mm

Shaft Length: 80 mm

Thermal Class: F

Protection Class: IP50 (IP65)

Weight: 73 kg
