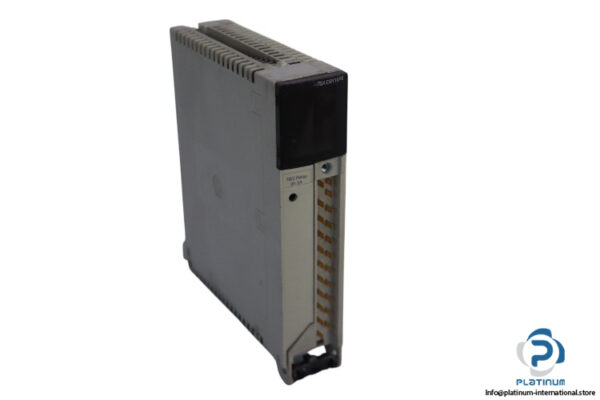

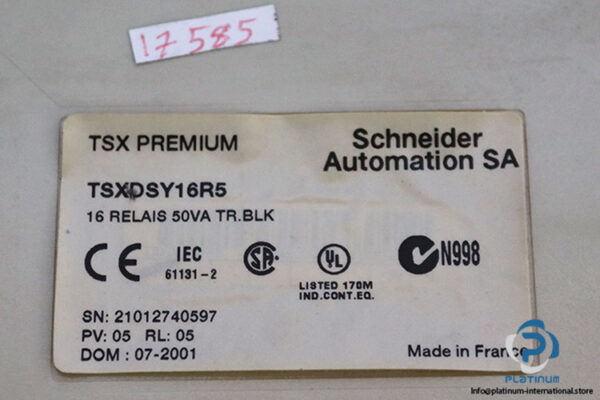

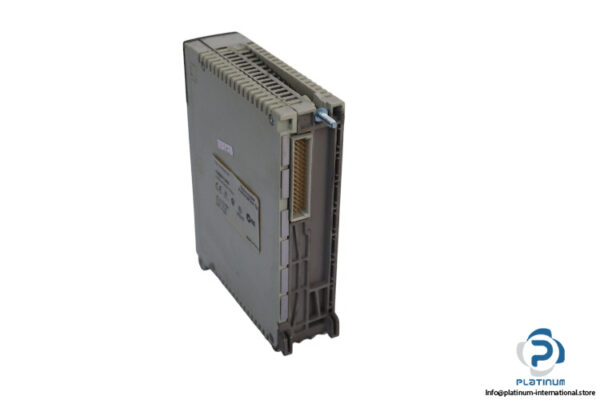

Schneider Electric Discrete Output Module TSXDSY16R5
The Schneider Electric TSXDSY16R5 is a versatile discrete output module designed for the Modicon Premium Automation platform. Featuring 16 relay outputs, this module offers reliable performance for both AC and DC applications. With a compact design and compliance with IEC 61131-2 standards, it ensures easy integration into industrial automation systems.
🔧 Technical Specifications:
- Manufacturer: Schneider Electric
- Type: Discrete Output Module
- Model: TSXDSY16R5
- Range: Modicon Premium Automation Platform
- Discrete Output Number: 16
- Discrete Output Type: Relay not protected
- Response Time: < 10 ms (deactivation), < 8 ms (activation)
- Power: 50 VA, 0.25 W
- Discrete Output Voltage: 12 to 24 V DC / 24 to 240 V AC
- Conventional Free Air Thermal Current (Ith): 3 A
- Contacts Type and Composition: 1 NO
- Electrical Connection: Screw terminal block
- Current Consumption: 135 mA at 24 V DC rack, 80 mA at 5 V DC
- Protection Degree: IP20
- Standard: IEC 61131-2
- Operation Temperature: 0 to 60°C
