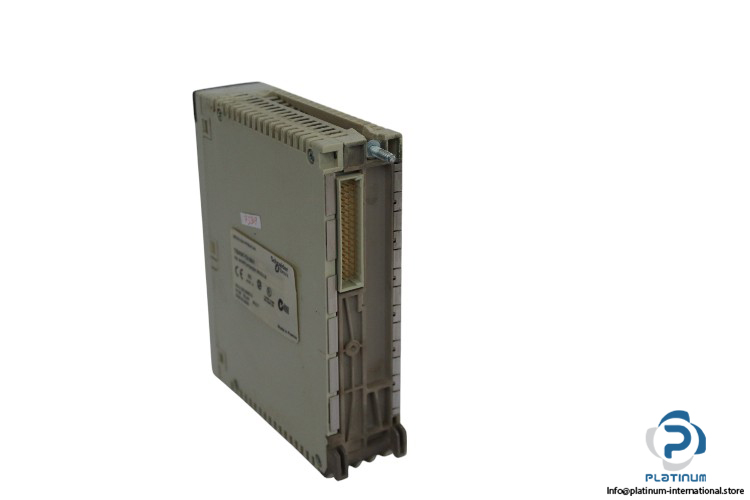

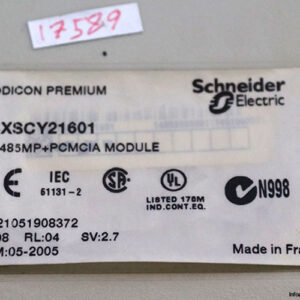

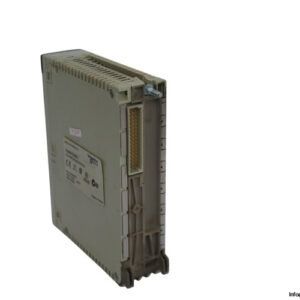

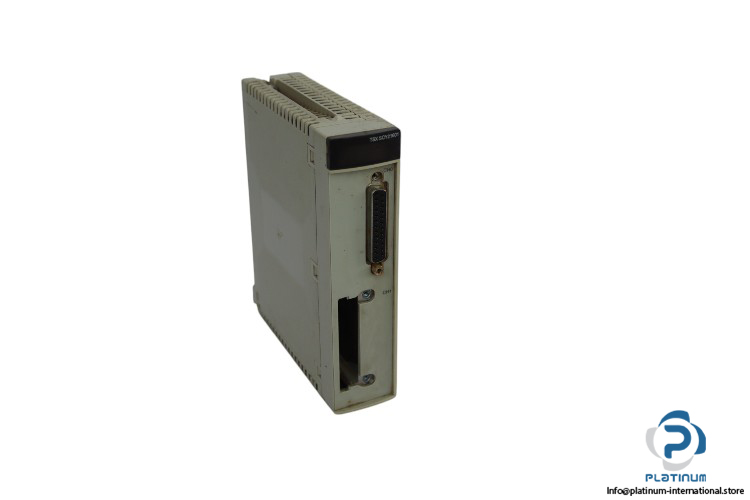

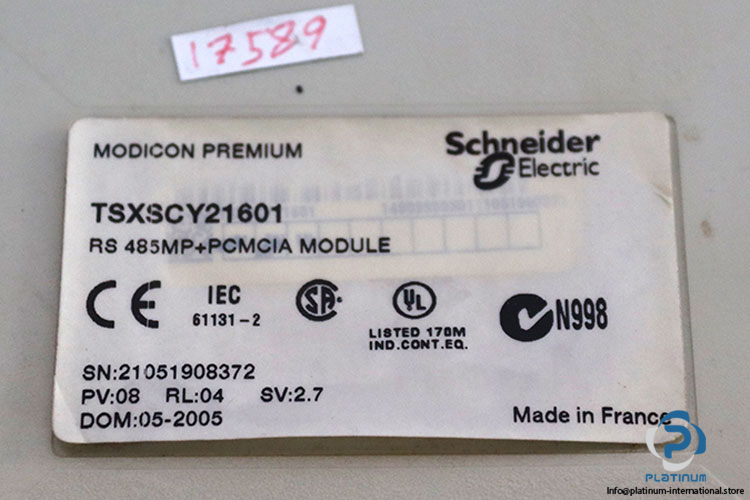

Schneider Electric Communication Module TSXSCY21601

The Schneider Electric TSXSCY21601 is a high-performance communication module for the Modicon Premium Automation platform. It offers seamless integration with Unity Pro software, supporting RS485 isolated communication and various industrial bus configurations for automation systems.

🔧 Technical Specifications:

• Manufacturer: Schneider Electric
• Type: Communication Module
• Model: TSXSCY21601
• Range: Modicon Premium Automation Platform
• Software Designation: Unity Pro
• Communication Port Support: RS485 Isolated
• Structure Type: Heterogeneous Industrial Bus
• Method of Access: Master/Slave Type
• Transmission Rate: 1.2 to 19.2 kbit/s
• Current Consumption: 350 mA at 5 V DC
• Transmission Support Medium: 2 Twisted Shielded Pairs Cable
• Number of Devices: 28
• Number of Addresses: 0 to 97
• Bus Length: 0 to 1300 m (Modbus)
• Maximum Tap Links Length: 15 m
• Operation Temperature: 0 to 60°C
• Standard: IEC 61131-2
• Protection Degree: IP20
