Manufacture: Schneider Electric

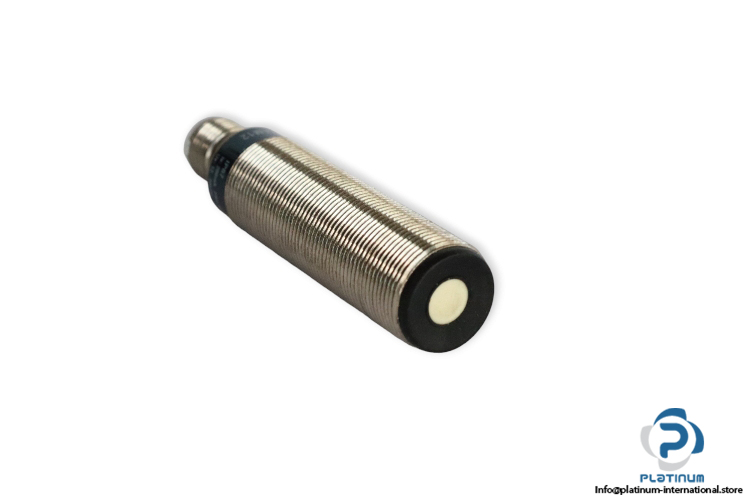

Type: Ultrasonic Proximity Sensor
Model: XXV18B1PAM12
Series: General purpose

Range of Product: XX
Sensor name: XXV
Sensor design: Cylindrical M18
Rated supply voltage: 12 … 24 V DC
Maximum switching current: 200 mA
Detection system: Diffuse
Sensing Range: 0.05 m
Material: Metal
Type of output signal: Discrete
Output function: 1 NO
Wiring Technique: 3-wire
Electrical design: PNP

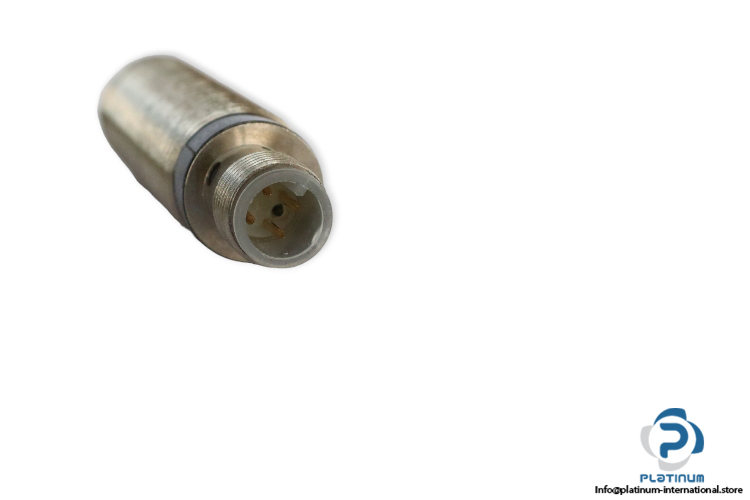

Electrical connection: Male connector M12, 4 pins
Degree of protection: IP67
Enclosure Material: Brass
Thread type: M18 x 1
Dimensions: 51 x 18 x 18 mm
Ambient Air Temperature for Operation: 0 … 60 °C
