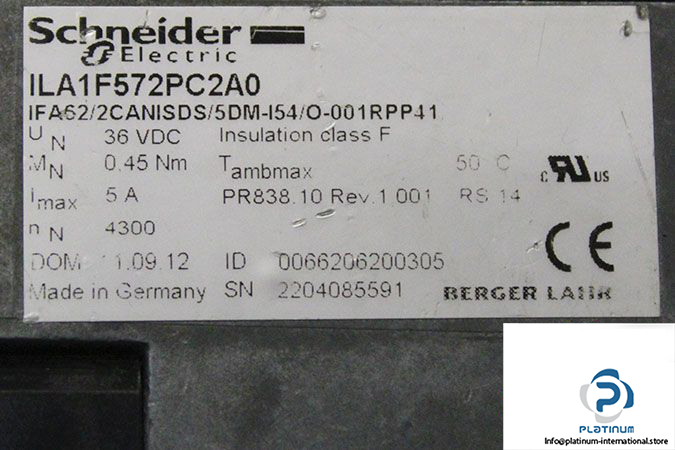

Manufacturer: Schneider Electric, Berger Lahr

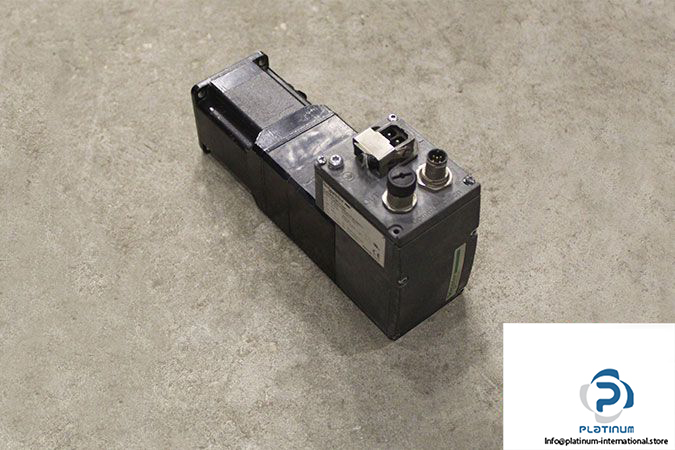

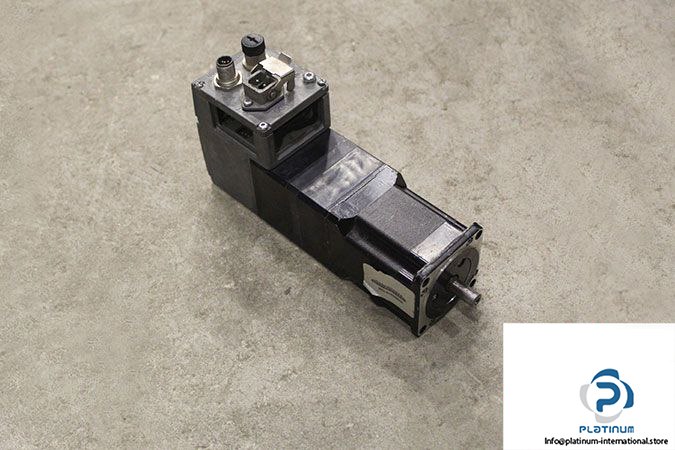

Type: Integrated Drive ILA with Servomotor

Model: ILA1F572PC2A0

Part No.: IFA62/2CANISDS/5DM-I54/O-001RPP41

Nominal Torque [Nm]: 0.45

Peak Stall Torque [Nm]: 0.72

Continuous Stall Torque [Nm]: 0.45

Max Current [A]: 5

Supply Voltage [VDC]: 36

Nominal Speed [rpm]: 4300

Number of Poles: 6

Ambient Temperature [°C]: 50

Mounting Support: Flange

Flange Size [mm]: 57

Shaft Diameter [mm]: 9

Shaft Length [mm]: 20

Length [mm]: 207.8

Thermal Class: F

Weight [kg]: 1.87
