Manufacturer: ELAU – SCHNEIDER ELECTRIC

Type: INTEGRATED SERVO MOTOR

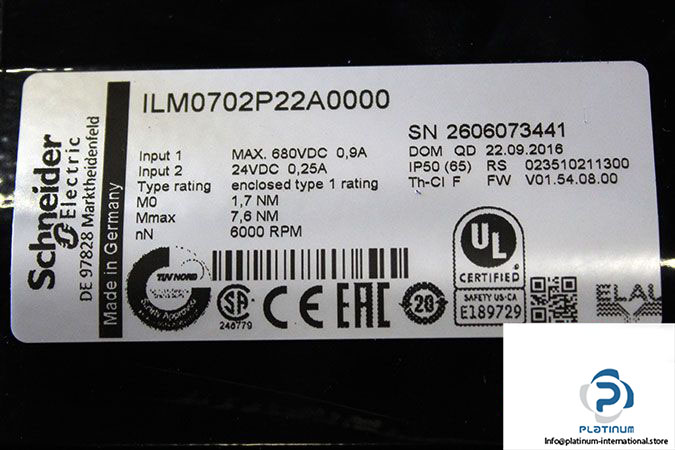

Model: ILM0702P22A0000

Input 1

Max. Voltage : 680 V DC

Max. Current (^Imax): 0.9 A

Input 2

Max. Voltage : 24 V DC

Max. Current (^Imax): 0.25 A



Type Rating: Enclosed Type 1 Rating

Normal Speed: 6000 Revolution Per Minute (rpm)

Continuous Stall Torque: 1.7 Nm

Peak Stall Torque: 7.6 Nm

Flange Size: 70 mm

Motor Length: 226 mm

Shaft Diameter: 11 mm

Shaft Length: 23 mm

Insulation Class: F

Protection Class: IP50 (65)
