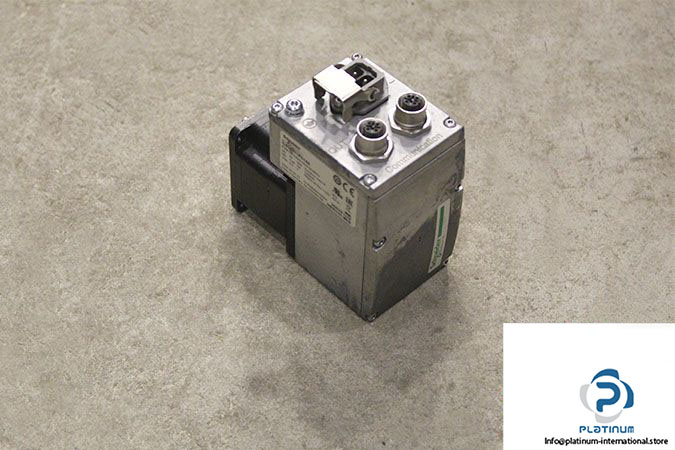

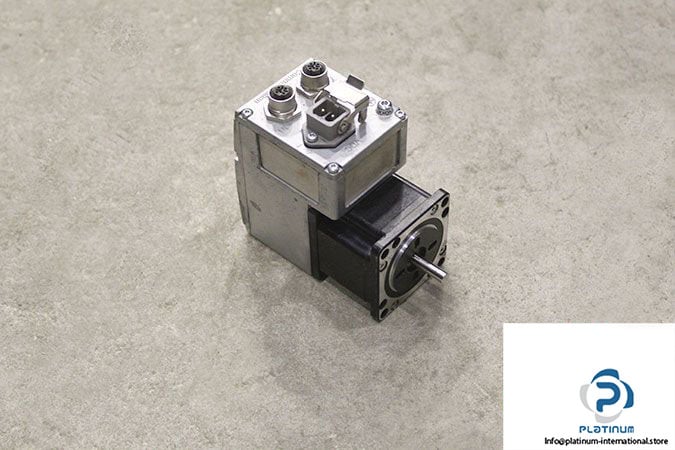

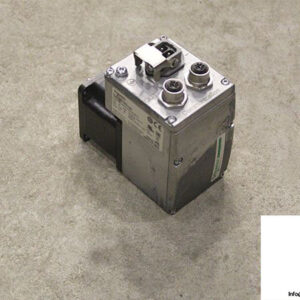

Manufacturer: Schneider Electric, Berger Lahr

Type: Integrated Drive ILS with Stepper Motors

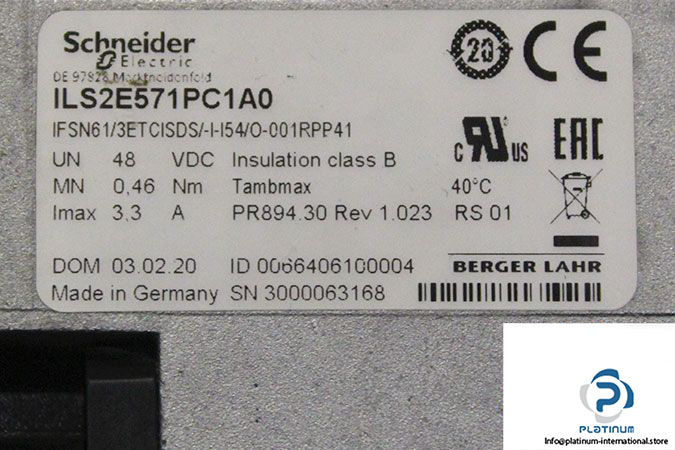

Model: ILS2E571PC1A0

Part No.: IFSN61/3ETCISDS/-I-I54/O-001RPP41

Peak Stall Torque [Nm]: 0.45

Continuous Stall Torque [Nm]: 0.45

Nominal Torque [Nm]: 0.46

Holding Torque [Nm]: 0.45

Max Current [A]: 3.3

Supply Voltage [VDC]: 48

Nominal Speed [rpm]: 2000

Number of Poles: 6

Flange Size [mm]: 57

Shaft Diameter [mm]: 6.35

Shaft Length [mm]: 21

Length [mm]: 101.9

Ambient Temperature [°C]: 40

Thermal Class: B

Weight [kg]: 1.26
