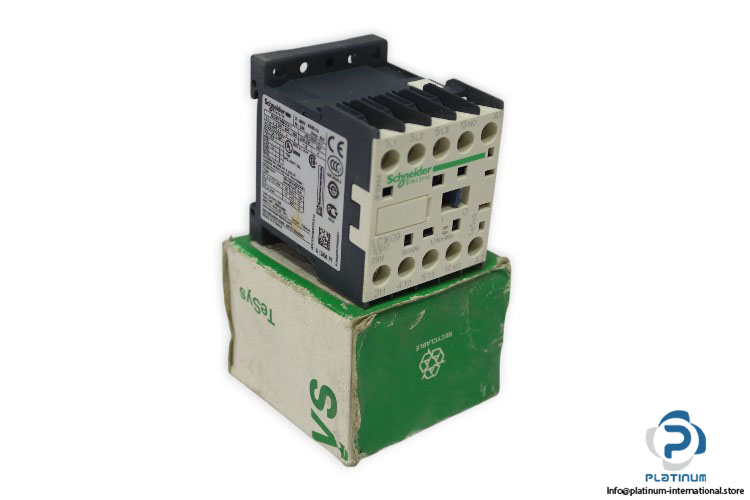

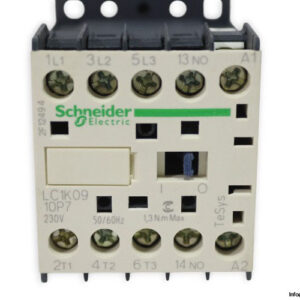

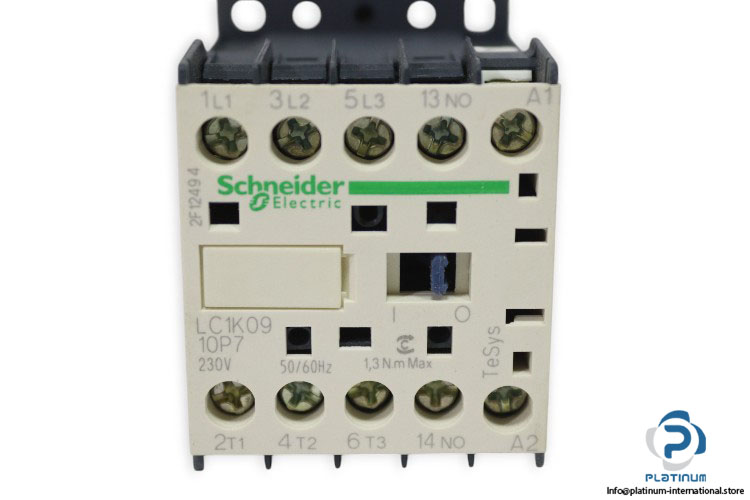

SCHNEIDER LC1K0910P7 CONTACTOR
A compact TeSys LC1K contactor engineered for reliable motor control and switching. Suited to AC-3 duty up to 4 kW at 400 V, with a 230 V AC control circuit and robust dielectric and short‘time withstand capabilities.
Manufacturer: SCHNEIDER
Type: Contactor
Model: LC1K0910P7
Technical Information
- Range: TeSys
- Device Short Name: LC1K
- Control Circuit Voltage: 230 V AC
- Motor Power: 4 kW @ 400 V AC
- Frequency: 50/60 Hz
- No. of Poles: 3
- Auxiliary Contact Composition: 1 NO
- Rated Operational Voltage (Ue): 690 V AC
- Rated Operational Current (Ie): 9 A (at < 60 °C) at ‰¤ 440 V AC, AC‘3 (power circuit)
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Conventional Free‘Air Thermal Current (Ith): 20 A (at 60 °C) power circuit; 10 A (at 50 °C) signaling circuit
- Rated Short‘Time Withstand Current (Icw), Power Circuit @ 50 °C: 90 A / 1 s; 85 A / 5 s; 80 A / 10 s; 60 A / 30 s; 45 A / 1 min; 40 A / 3 min; 20 A / ‰¥ 15 min
- Rated Short‘Time Withstand Current (Icw), Signalling Circuit: 80 A / 1 s; 90 A / 500 ms; 110 A / 100 ms
- Standard: IEC/EN 60947-4-1
- Dimensions (H × W × D): 58 × 45 × 57 mm
