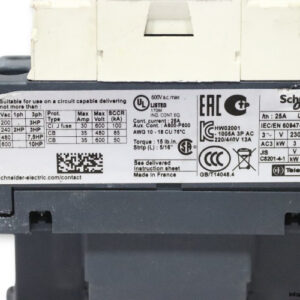

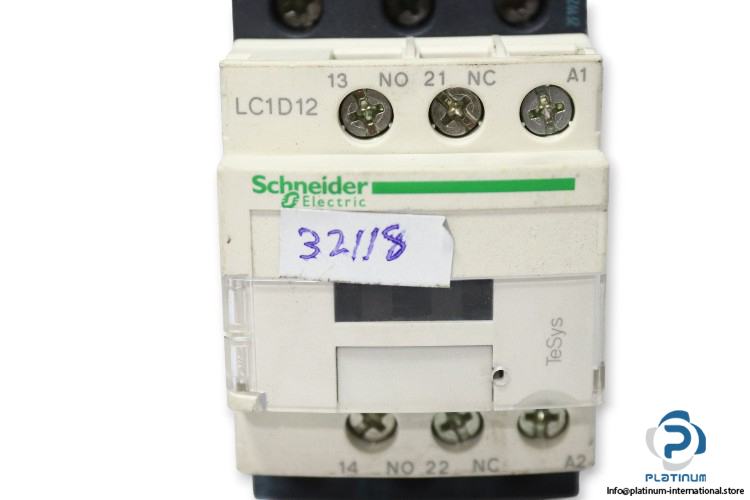

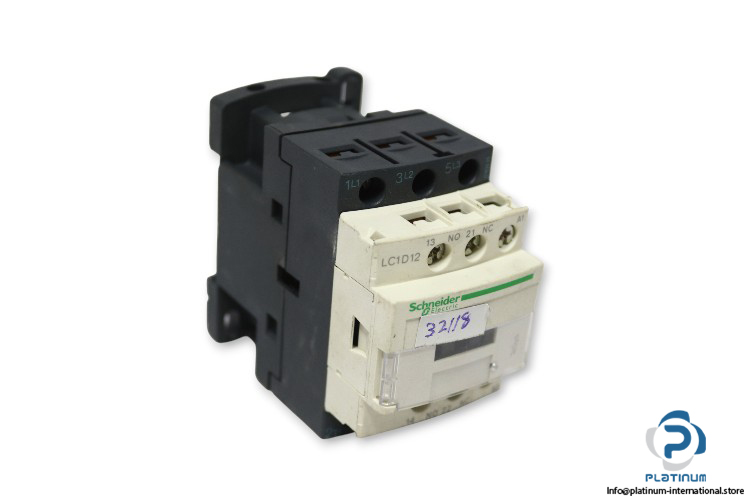

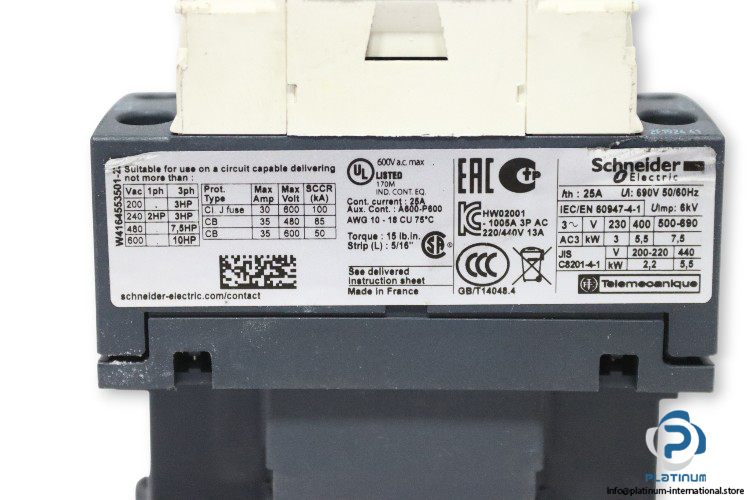

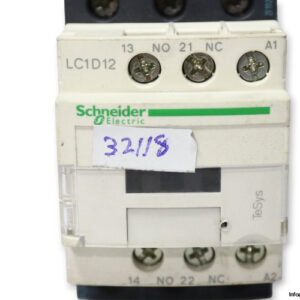

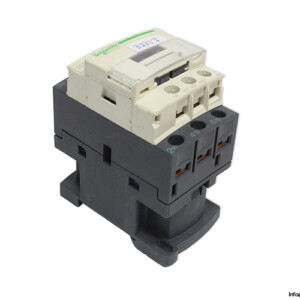

Schneider Telemecanique LC1D12 Contactor

The Schneider Telemecanique LC1D12 Contactor is a high-performance 3-pole power contactor engineered for reliable control of motors and industrial loads. Designed for durability and efficient switching, it provides strong operational capability across both AC and DC applications.

Manufacturer: Schneider Telemecanique
Type: Contactor
Model: LC1D12
Short Name: LC1D

Technical Information

• Coil Voltage: 24 V DC
• Rated Operational Voltage: 690 V AC / 300 V DC
• Rated Operational Current AC-3: 12 A
• Rated Thermal Current: 25 A
• Frequency: 50 / 60 Hz
• Power AC-3:
  230 V AC: 3 kW
  400 V AC: 5.5 kW
  500 / 690 V AC: 7.5 kW
• Horse Power:
  1 Phase 115 V AC: 0.5 HP
  3 Phase 230 / 240 V AC: 2 HP
  1 Phase 200/208 / 230/240 V AC: 3 HP
  3 Phase 460/480 V AC: 7.5 HP
  3 Phase 575/600 V AC: 10 HP
• Rated Impulse Voltage (Uimp): 6 kV
• Poles No.: 3-Pole
• Auxiliary Contact: 2-Pole 1 NO + 1 NC
• Rated Breaking Capacity: 250 A
• Protection Class: IP20
• Ambient Temperature: -40 / 60 °C
• Dimensions: 77 x 45 x 86 mm
