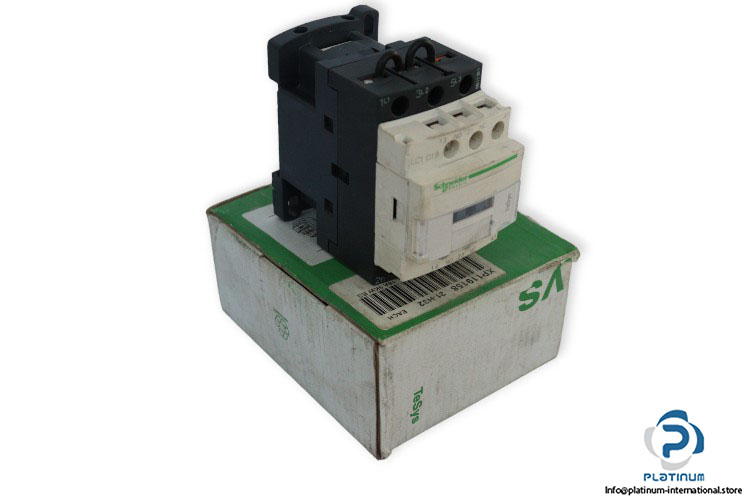

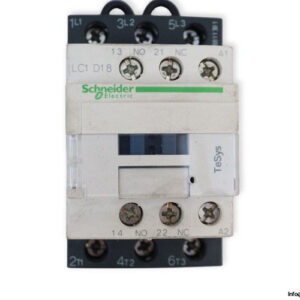

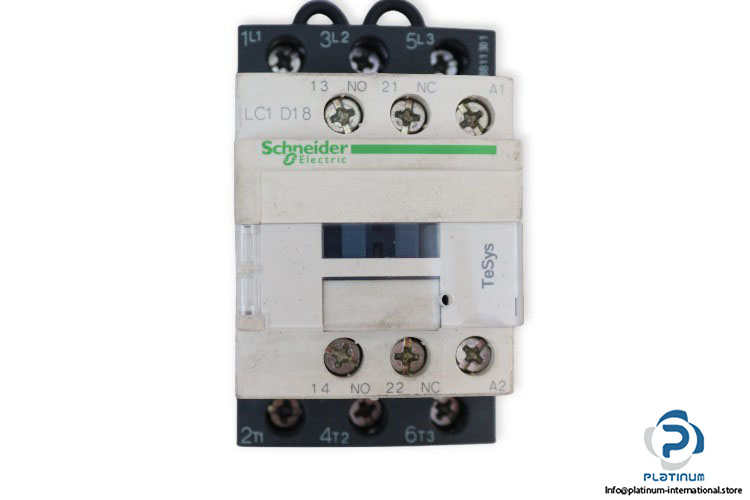

Schneider LC1D18F7AB Contactor

The Schneider LC1D18F7AB is a robust and high-performance contactor from the LC1D series, designed for reliable motor control and power switching applications. With a rated current of 18 A and coil voltage of 110 V AC, it ensures efficient operation across a wide range of industrial and automation systems. Built with durable materials and precise engineering, it offers long service life and dependable performance.

Manufacturer: Schneider
Type: Contactor
Model: LC1D18F7AB
Part No.: 034945
Series: LC1D

Technical Information

• Rated Coil Voltage: 110 V AC
• Rated Operational Voltage: 690 V AC / 300 V DC
• Rated Operational Current (AC-3): 18 A
• Frequency: 50 / 60 Hz
• Power (AC-3) 220 / 230 V AC: 4 kW
• Power (AC-3) 380 / 400 V AC: 7.5 kW
• Power (AC-3) 415 / 440 V AC: 9 kW
• Power (AC-3) 500 / 660 / 690 V AC: 10 kW
• Power Loss (AC-3): 0.8 W
• Rated Impulse Voltage (Uimp): 6 kV
• Main Poles: 3-Pole
• No. of Poles: 3-Pole
• Auxiliary Contact: 2-Pole (1 NO + 1 NC)
• Switching Voltage (Min): 17 V
• Switching Current (Min): 5 mA
• Rated Breaking Capacity: 300 A
• Protection Class: IP20
• Ambient Temperature: -40 / 60 °C
• Dimensions: 77 × 45 × 86 mm
