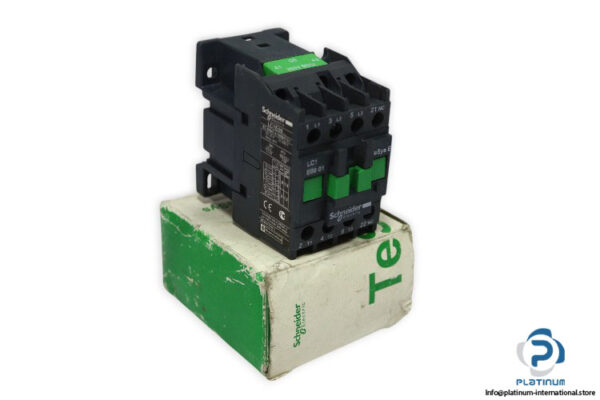

SCHNEIDER LC1E0901Q5 CONTACTOR

The Schneider Easy TeSys LC1E0901Q5 is a compact 3‘pole contactor engineered for reliable motor control and power switching. It supports up to 4 kW at 400 V AC and features robust insulation, high impulse withstand capability, and an integrated auxiliary contact for versatile control schemes.

Manufacturer: SCHNEIDER
Type: Contactor
Model: LC1E0901Q5

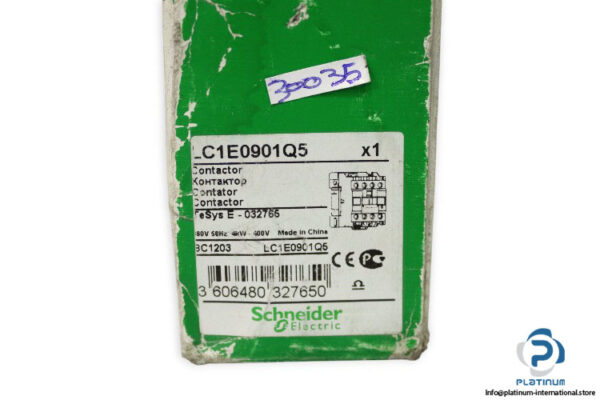

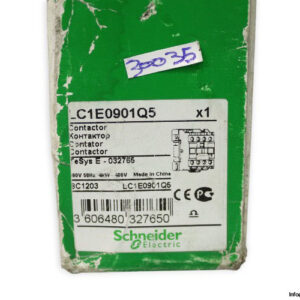

SN: 3606480 327650
REF NO: 032766

Technical Information

• Range: Easy TeSys
• Device Short Name: LC1E
• Poles Description: 3P

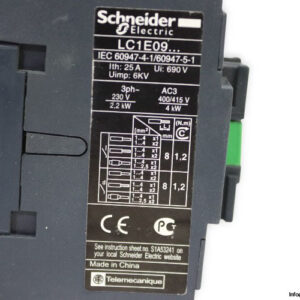

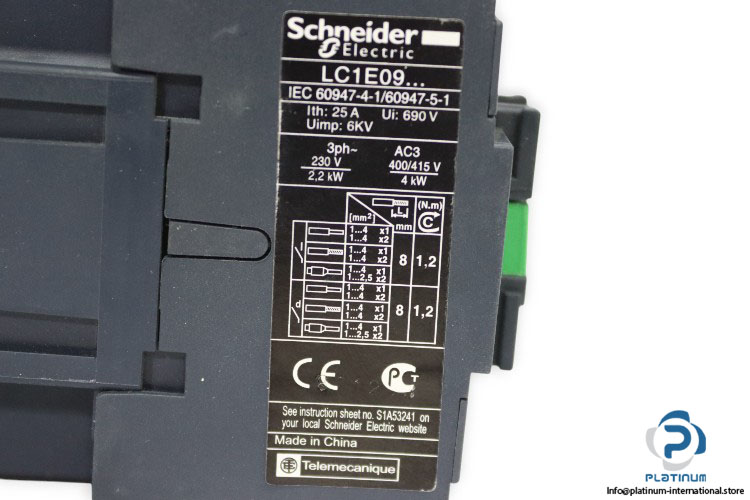

• [Ue] Rated Operational Voltage: Power circuit: 690 V AC 50/60 Hz
• Control Circuit Voltage: 380 V AC 50 Hz
• Motor Power kW: 2.2 kW at 220/230 V AC 50/60 Hz; 4 kW at 380/400 V AC 50/60 Hz

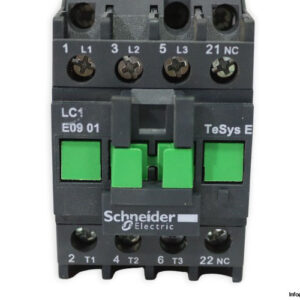

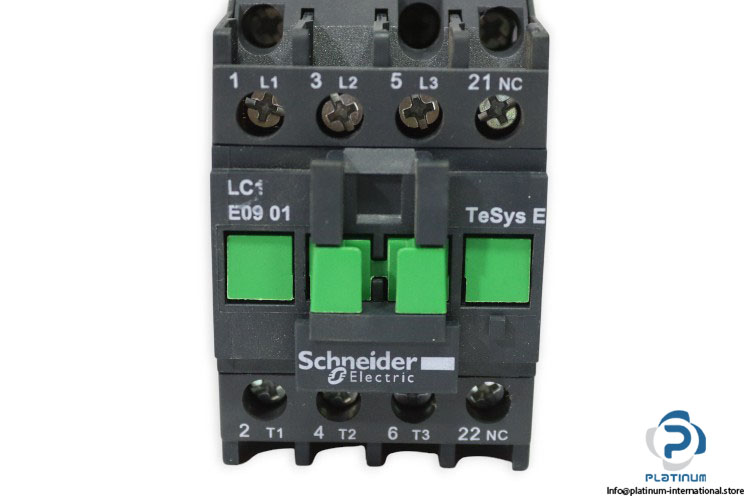

• Pole Contact Composition: 3 NO
• [Ith] Conventional Free Air Thermal Current: 25 A (at 55 °C) for power circuit
• [Ui] Rated Insulation Voltage: 690 V (IEC 60947‘4‘1)
• Overvoltage Category: III
• Pollution Degree: 3
• [Uimp] Rated Impulse Withstand Voltage: 6 kV
• Auxiliary Contact Composition: 1 NC
• Height: 74 mm
• Width: 45 mm
• Depth: 80 mm
