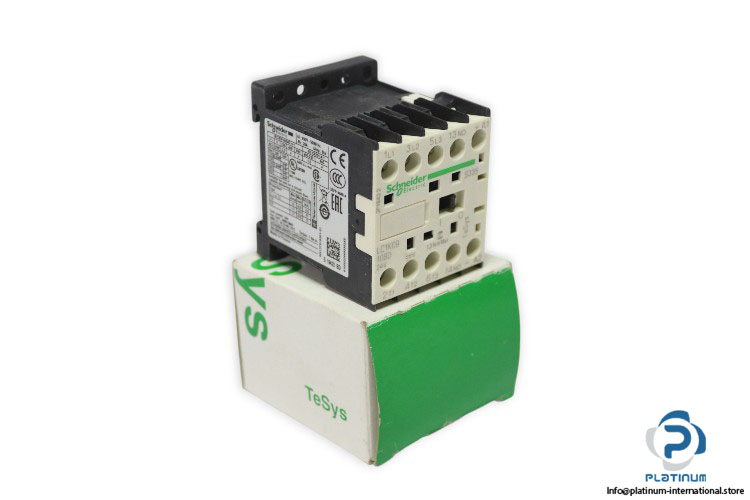

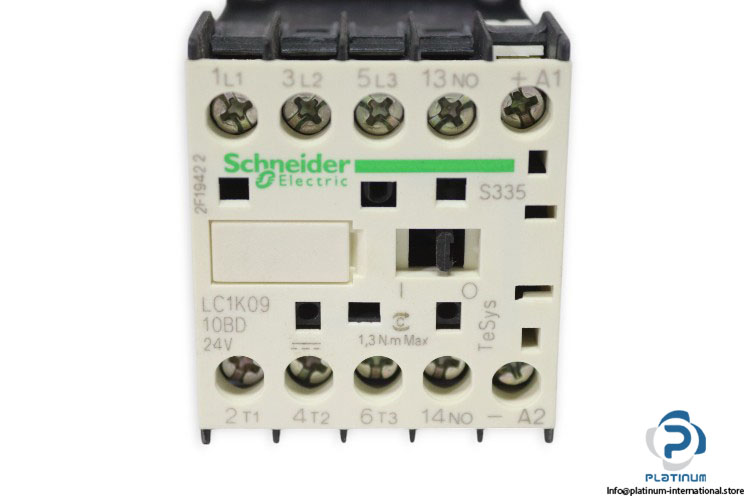

SCHNEIDER LC1K0910BD CONTACTOR

The Schneider LC1K0910BD is a compact and reliable contactor from the TeSys range, designed for controlling electric motors and switching power circuits. With a high-performance build, it ensures efficiency and durability in demanding industrial applications.

Manufacturer: Schneider
Type: Contactor
Model: LC1K0910BD

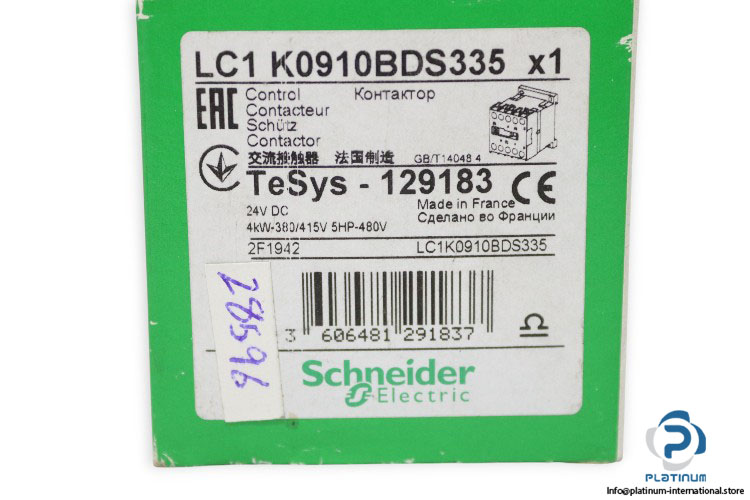

Alternative Model: LC1 K0910BDS335
Part No.: 129183

Technical Information

• Range: TeSys
• Short Name: LC1K
• Coil Voltage: 24 V AC
• Rated Operational Voltage: 200 / 690 V AC
• Rated Operational Current: 20 A
• Frequency: 50 / 60 Hz
• Rated Power: 2.2 / 4 / 1.5 kW
• Rated Impulse Voltage (Uimp): 8 kV
• Main Contact: 3-Pole 3 Normally Open (NO)
• Auxiliary Contact: 1 Normally Open (NO)
• Contact Current: 20 A
• Protection Class: IP20
• Dimensions: 58 x 45 x 57 mm
