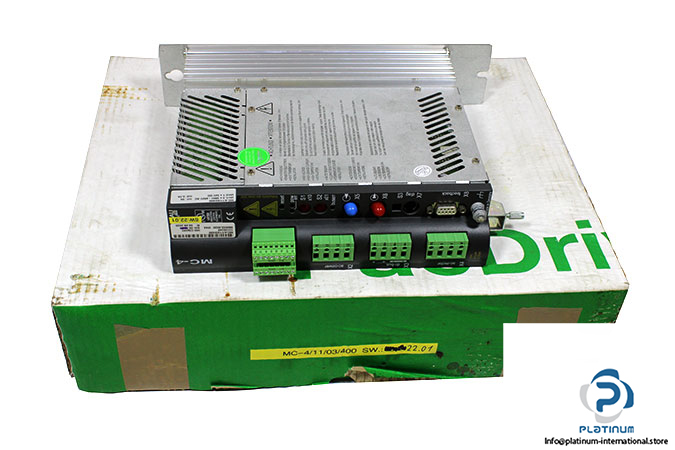

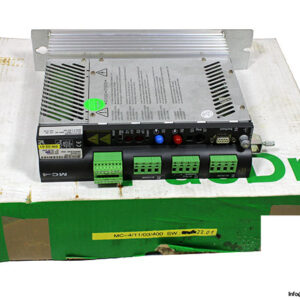

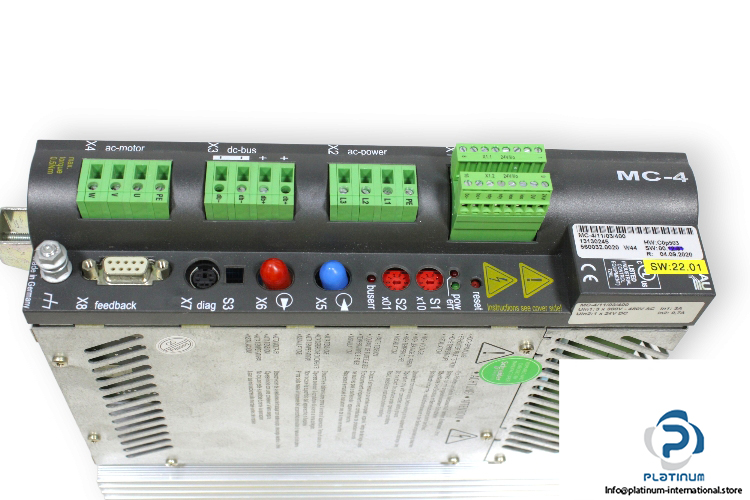

Schneider Electric-ELAU PacDrive MC-4 Servo Drive / PowerDrive Motion Controller
The Schneider Electric-ELAU MC-4/11/03/400 PacDrive Motion Controller is a high-performance servo drive solution for industrial automation, offering precise motion control, reliable operation, and advanced connectivity. Built to support demanding environments, it ensures efficient control of servo motors with robust protection and energy-efficient operation.
Manufacturer: Schneider Electric-ELAU
Type: PacDrive MC-4 Servo Drive / PowerDrive Motion Controller

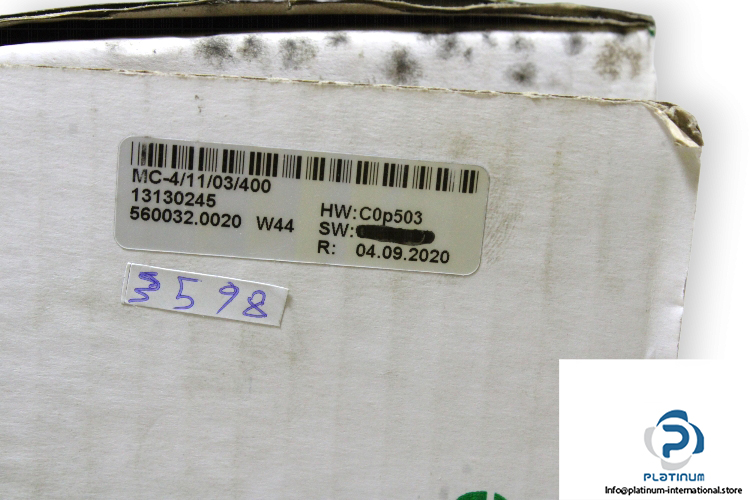

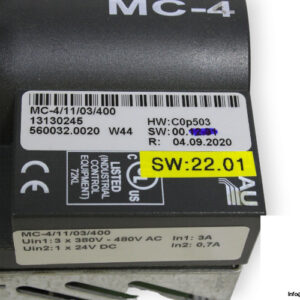

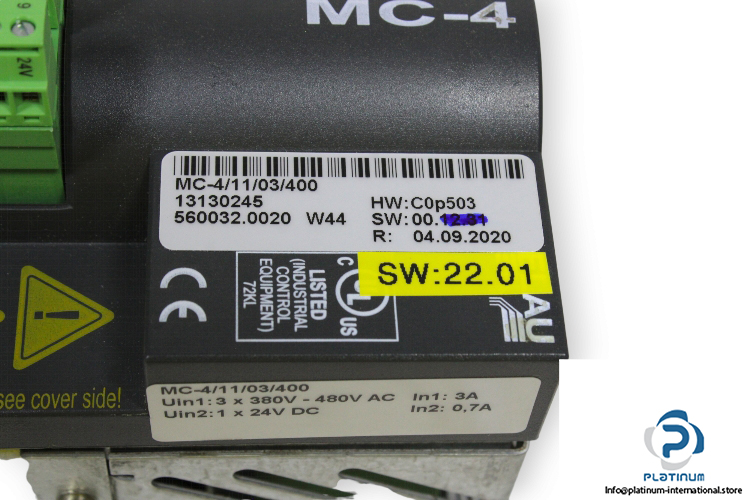

Model: MC-4/11/03/400
Order No.: 13130245
Ref. No.: 560032.0020 W44
HW: C0p503
SW: 22.01
Technical Information
- Power Supply Rated Connection Voltage: 3-Phase 380 to 480 VAC, 50/60 Hz
- Rated Current: 3 A
- DC-Circuit Voltage: 530 V to 680 V DC
- Motor Connection Rated Power: 2.1 kVA
- Stray Power Electronics Supply: 12 W
- Inputs Voltage / Current: 20 … 30 V DC / 5 mA
- Relay Outputs: 20 … 30 V DC / 2 A
- Casing Protection Degree: IP20
- Ambient Temperature During Operation: 5 to 45°C
- Dimensions: 100 x 400 x 320 mm
