Manufacturer: SCHNEIDER

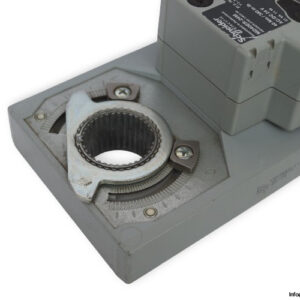

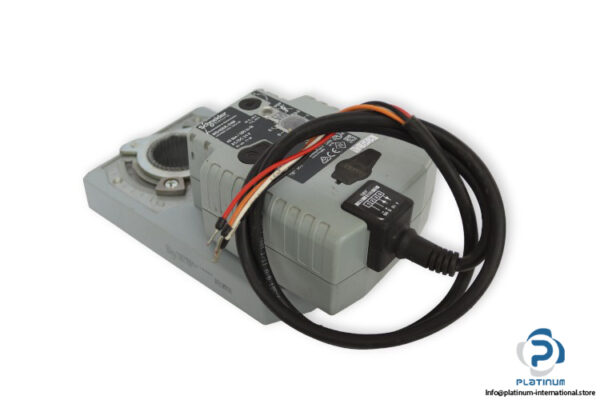

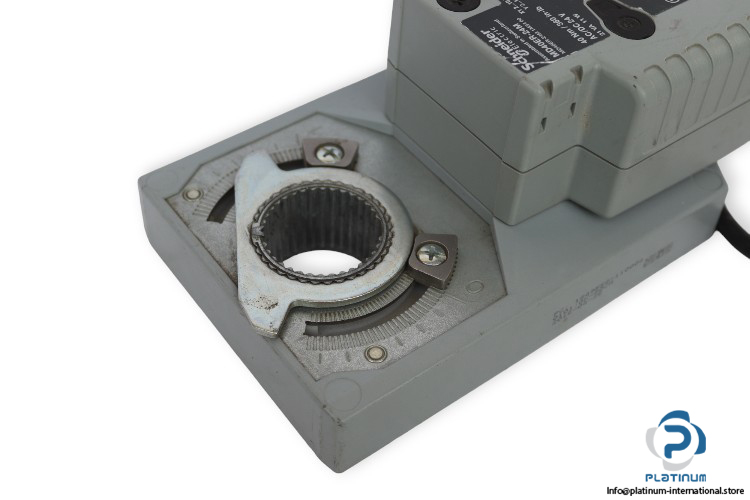

Type: Electronic Return Damper Actuator

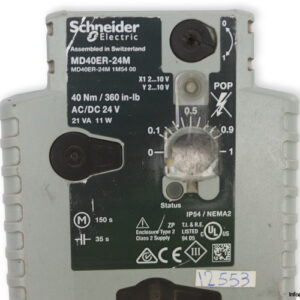

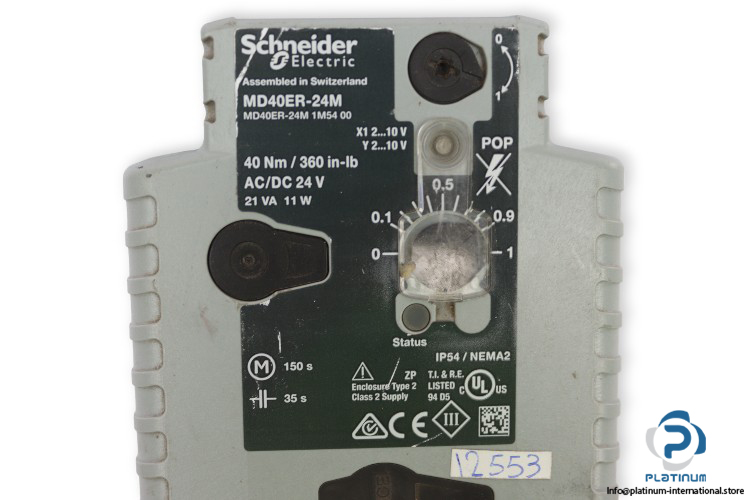

Model: MD40ER24M

Rated Voltage: 24 V AC / DC
Rated Current: 0.5 mA
Nominal Torque: 40 Nm
Input Resistance: 100 kΩ
Power Consumption: 11 W
Running Time:
Motor Driven: 150 s / 90°
Capacitor Driven: 35 s / 90°
Position Indication: Mechanical
Electronic Return (Super Cap) Position: 0 … 100 %
Angle of Rotation Max.: 95°
Protection Class: IP54
Ambient Temperature: -30 … 50 °C
Dimensions: 210 x 116 x 87 mm
