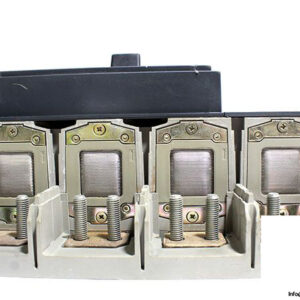

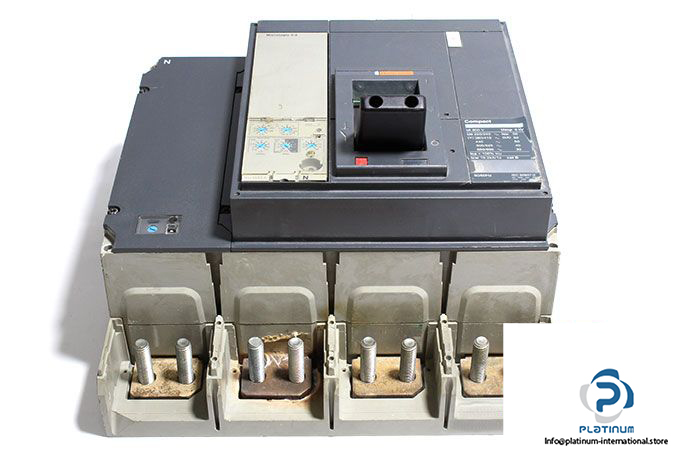

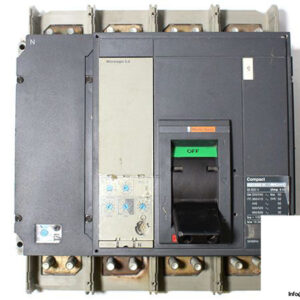

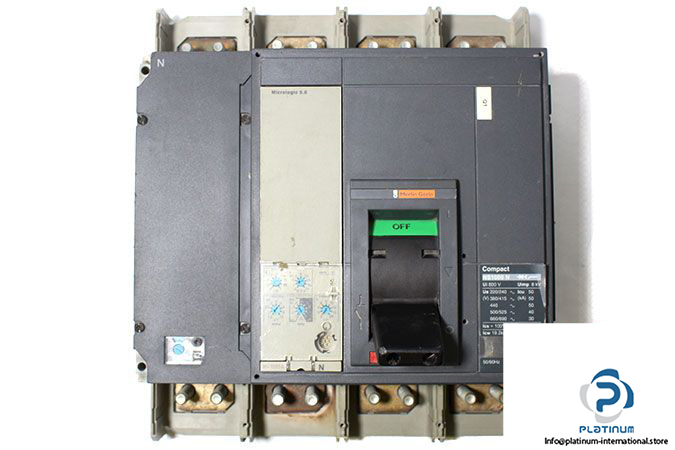

Manufacturer: Schneider Merlin Gerin

Type: Circuit Breaker / Switch Disconnector

Range: Compact

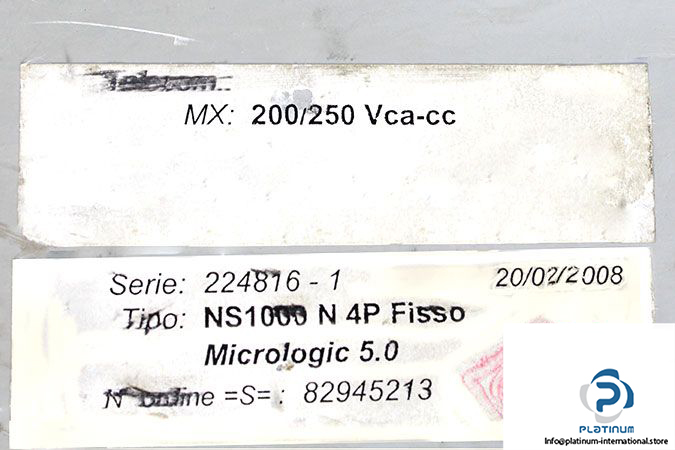

Circuit Breaker Model: NS1000N

Trip Unit Model: Micrologic 5.0

Part No.: 33561

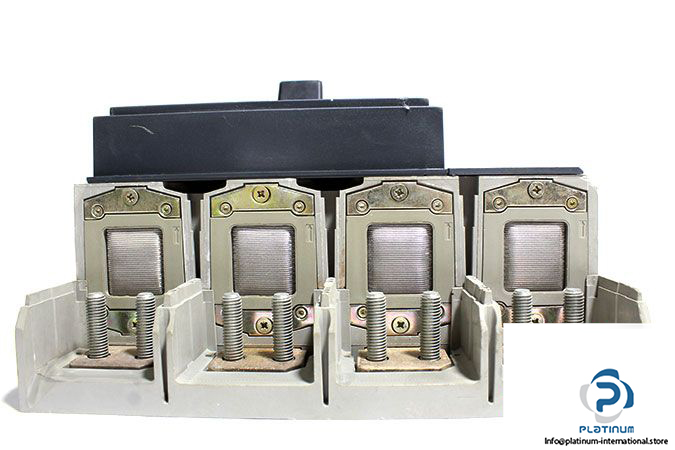

Number of Poles: 4

Rated Current (I_n): 1000 A

Range Of Product: NS630b…1600

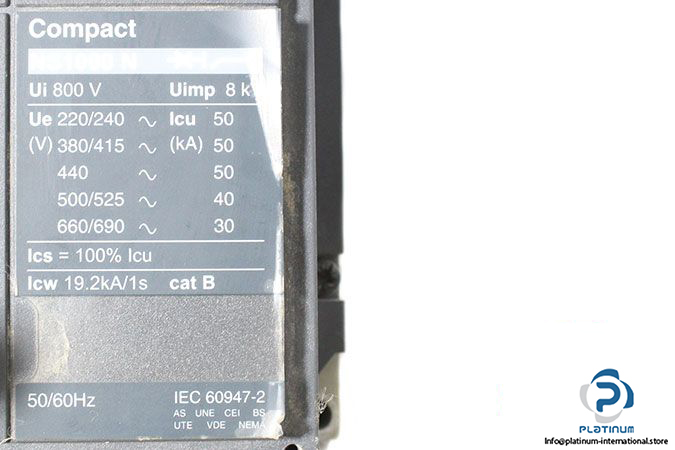

Rated Operational Voltage (U_e): 690 V AC

Rated Insulation Voltage (U_i): 800 V AC 50/60 Hz

Rated Impulse (U_imp): 8 kV

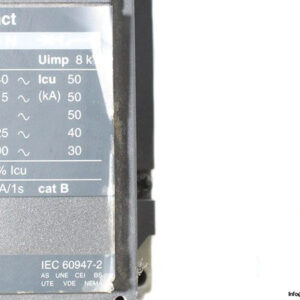

Breaking Capacity (I_cu):

85 kA (220/240 V AC)

50 kA (380/415 V AC)

30 kA (660/690 V AC)

Trip Unit Technology: Electronic

Trip Unit Protection Functions: LSI

L= Overload Protection (Long Time)

S= Short Time Short-Circuit Protection

I= Instantaneous Short-Circuit Protection

Mounting Mode: Fixed

Standards: IEC 60947-2

Service Frequency: 50/60 Hz

Dimensions ( W x D x H): 280 x 147 x 327 mm

Degree Of Protection: IP40

Operation Temperature: -25 … 70 °C

Weight: 15.5 kg
