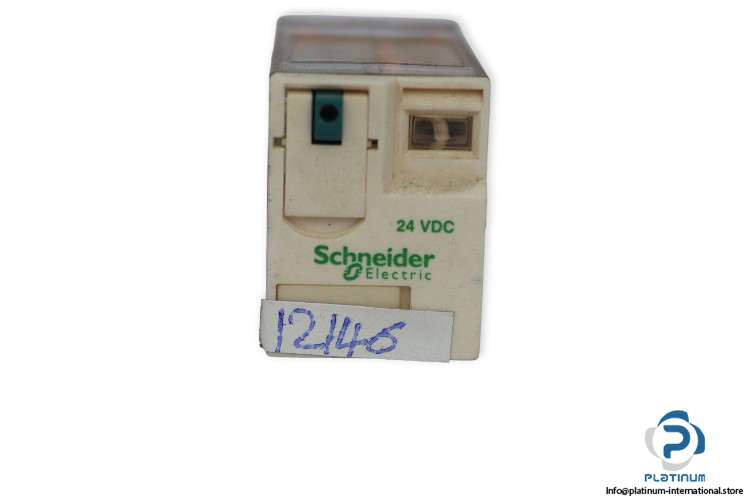

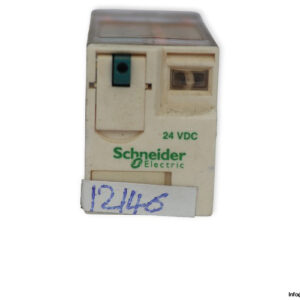

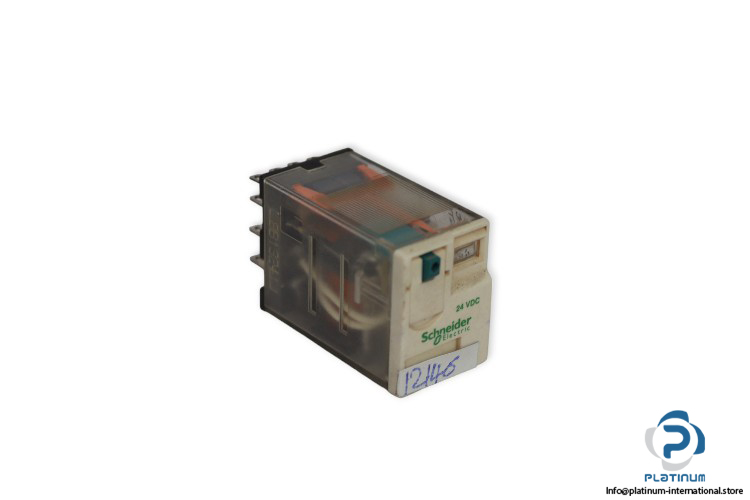

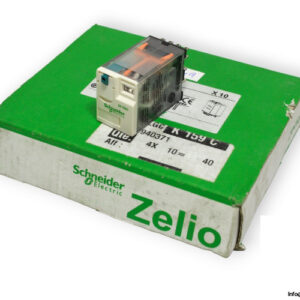

Manufacturer: Schneider Electric
Type: Miniature Plug-In Relay

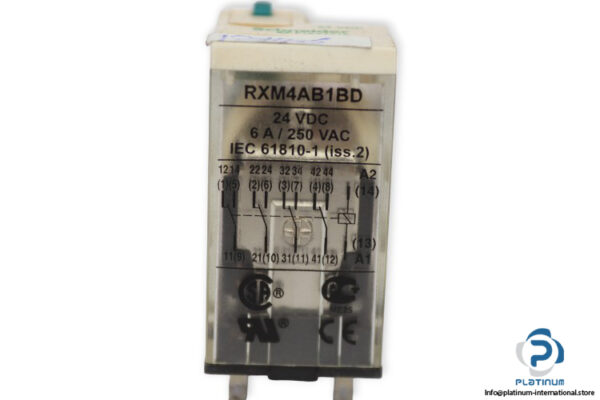

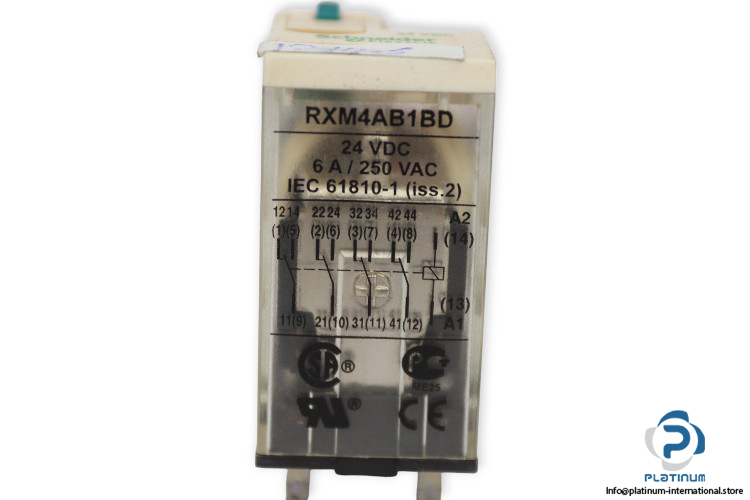

Model: RXM4AB1BD
Range of product: Harmony Electromechanical Relays
Device short name: RXM
Control circuit voltage Uc: 24 V DC

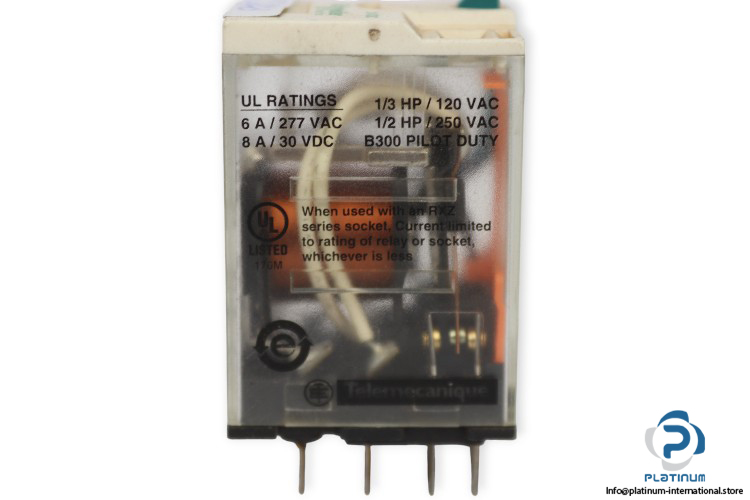

Rated operational current Ie: 6 A at 250 V (AC) NO conforming to IEC, 6 A at 277 V (AC) conforming to UL, 8 A at 30 V (DC) conforming to UL
Power in HP: 1/3 HP 120 VAC, ½ HP 250 VAC
Rated insulation voltage Uu: 250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL
Rated impulse withstand voltage Uimp: 2.5 kV during 1.2/50 µs
Continuous output current: 5 A
Maximum switching voltage: 250 V conforming to IEC
Contacts type and composition: 4 Changeover contacts (Single pole double through)
Contacts material: AgNi
Status LED: Without
Shape of pin: Flat
Standard: IEC 61810-1
Operating Temperature: -40 … +55 °C
Degree of protection: IP40
Dimensions: 27 x 21 x 53.7 mm
