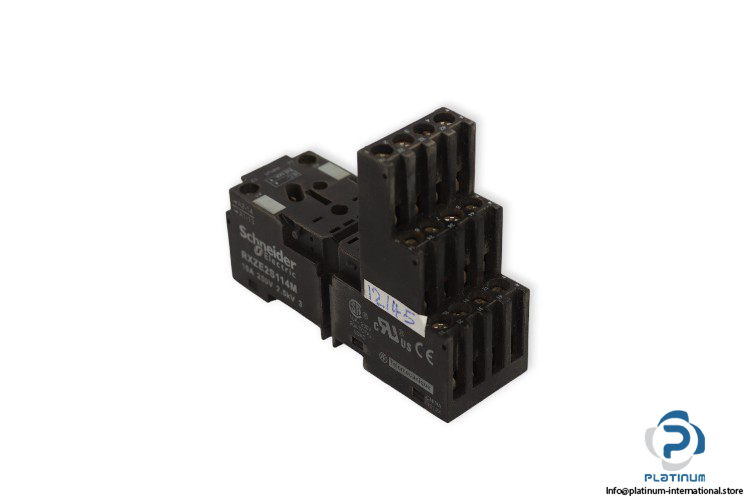

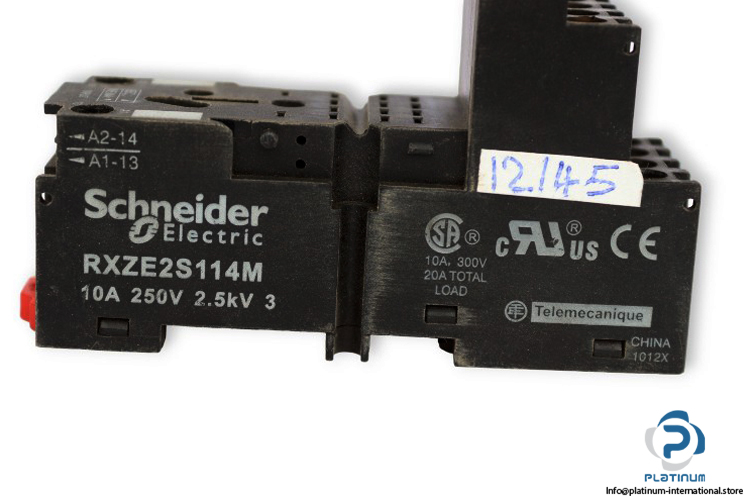

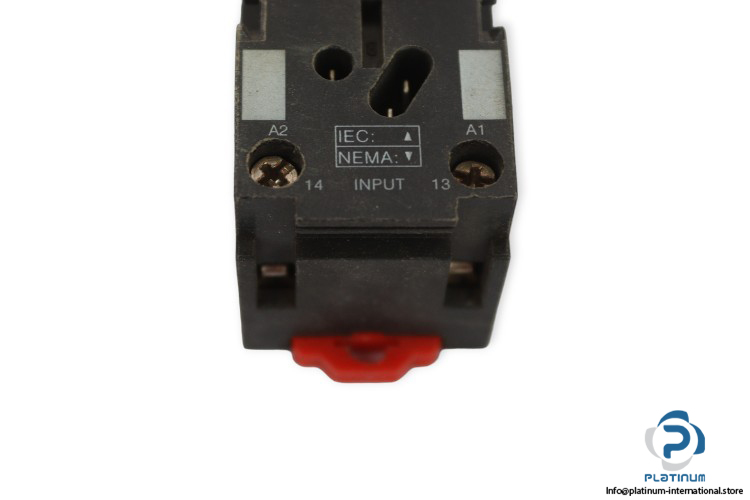

Manufacturer: Schneider Electric
Type: Push in Relay Socket
Model: RXZE2S114M

Range of Product: Harmony Electromechanical Relays Harmony Timer Relays
Device Short Name: RXZ
Contacts Type and Composition: 4 C/O
Conventional Free Air Thermal Current Ith: 10 A
Shape of Pin: Flat
Rated Operational Voltage Ue: < 250 V
Rated Impulse Withstand Voltage Uimp: 4 Kv
Pollution Degree: 3
Degree of Protection: IP20
Contact Terminal Arrangement: Separate
Tightening Torque: < 1 N.m M3
Fixing Mode: By screw (panel) Clip-on (35 mm symmetrical DIN rail)
Ambient Air Temperature For Operation: -40 … 55 °C
Dimensions: 79 x 61 x 27 mm
