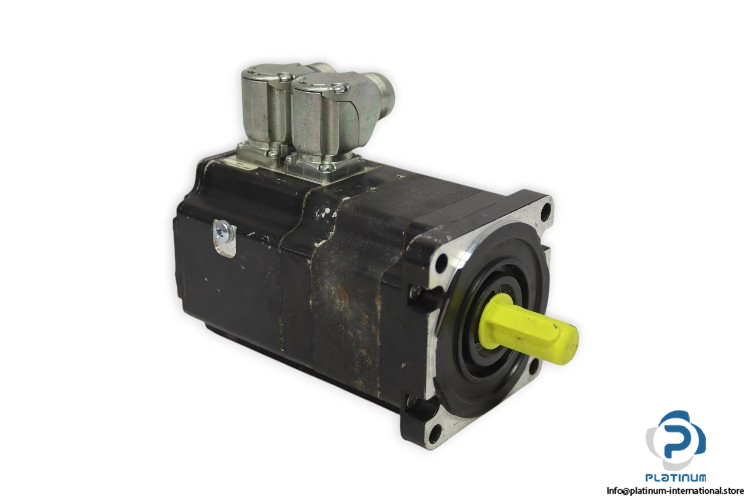

Schneider Electric (Berger Lahr) SER397/4L3SS0TO Servo Motor
The Schneider Electric (Berger Lahr) SER397/4L3SS0TO is a high-performance servo motor designed for inverter-duty applications. With a compact design, reliable torque, and high-speed operation, it delivers precise motion control and durability in industrial automation systems.

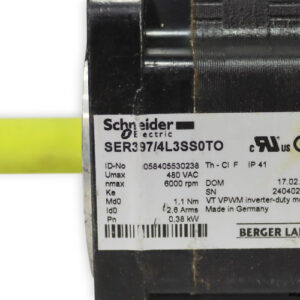

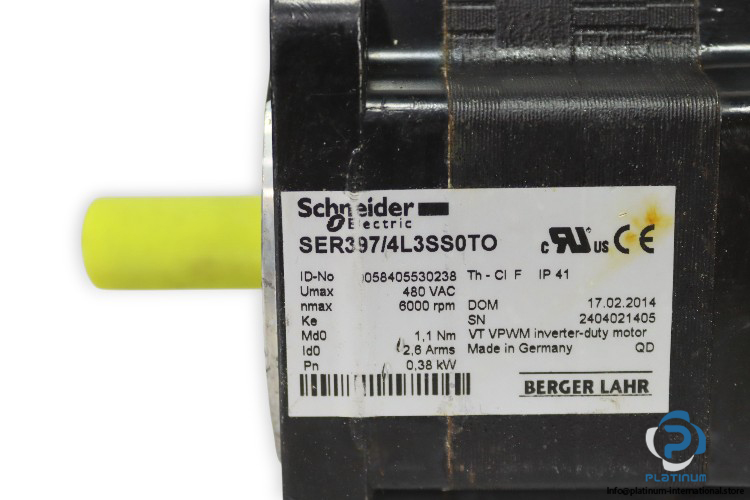

Manufacturer: Schneider Electric (Berger Lahr)
Type: Servo Motor
Model: SER397/4L3SS0TO
ID No.: 058405530238
Serial No.: 2404021405
Technical information
- Motor Type: VT VPWM inverter-duty motor
- Max Voltage (Umax): 480 V AC
- Rated Speed (nmax): 6000 rpm
- Torque (Md0): 1.1 Nm
- Rated Current (Id0): 2.6 Arms
- Power (Pn): 0.38 kW
- Constant (Ke): Linked to feedback/torque constant
- Insulation Class: F
- Protection Class: IP41
