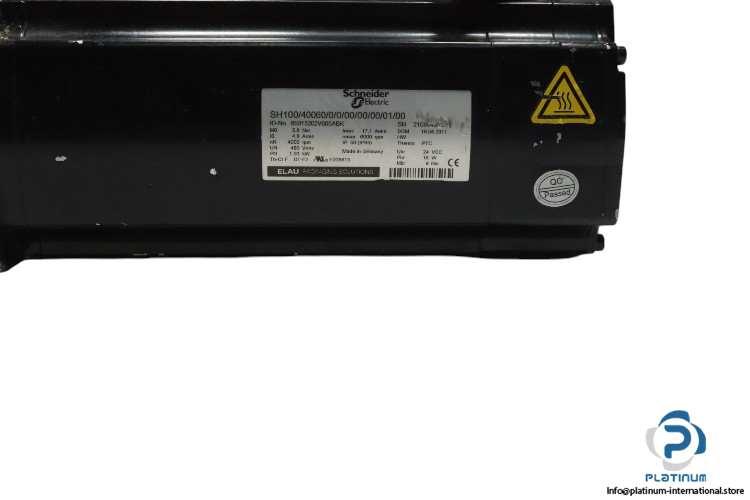

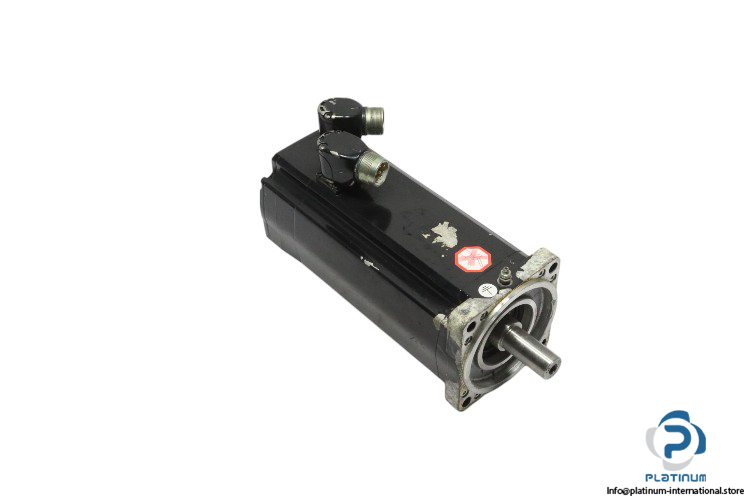

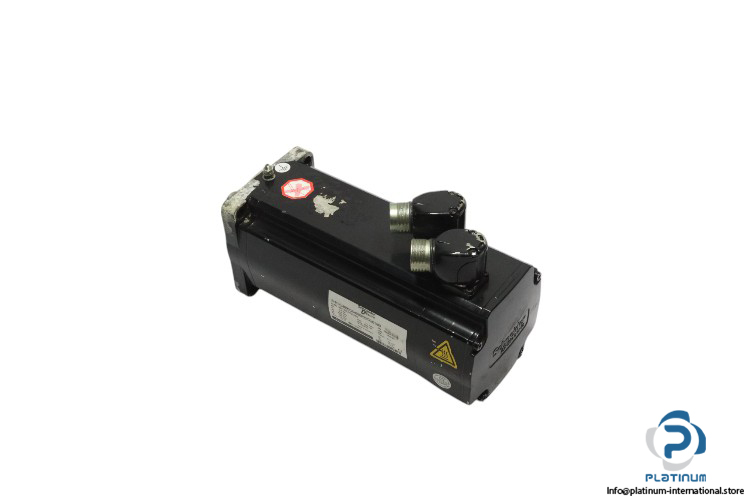

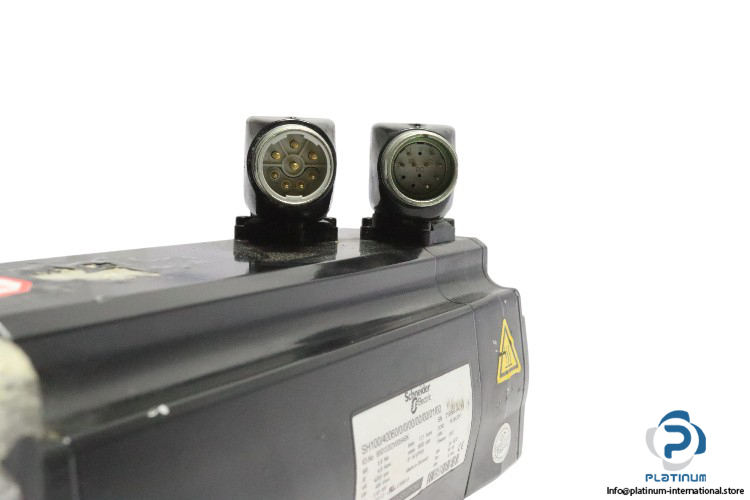

Schneider SH100/40060/0/0/00/00/00/01/00 Servo Motor
The Schneider SH100/40060/0/0/00/00/00/01/00 Servo Motor is a high-performance motion control solution designed for precision and efficiency. With a rated speed of 4000 rpm and a stall torque of 5.8 Nm, this servo motor is engineered for demanding industrial applications. It provides exceptional power, accuracy, and reliability, making it ideal for automation systems.
- Manufacturer: Schneider
- Type: Servo Motor
- Model: SH100/40060/0/0/00/00/00/01/00
- ID No.: 65013202V005ABK
Technical Specifications
- Rated Voltage: 480 V
- Rated Speed: 4000 rpm
- Stall Torque: 5.8 Nm
- Rated Power: 1.93 kW
- Rated Current: 17.1 A
- Stall Current: 4.8 A
- Max Current: 17.1 A
- Max Speed: 6000 rpm
- Thermal Class: F
- Protection Class: IP 50(65)
- Brake Voltage: 24 VDC
- Brake Torque: 9 Nm
- Brake Power: 18 W
