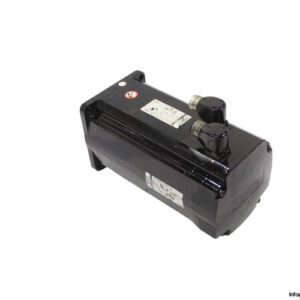

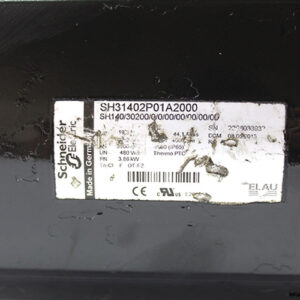

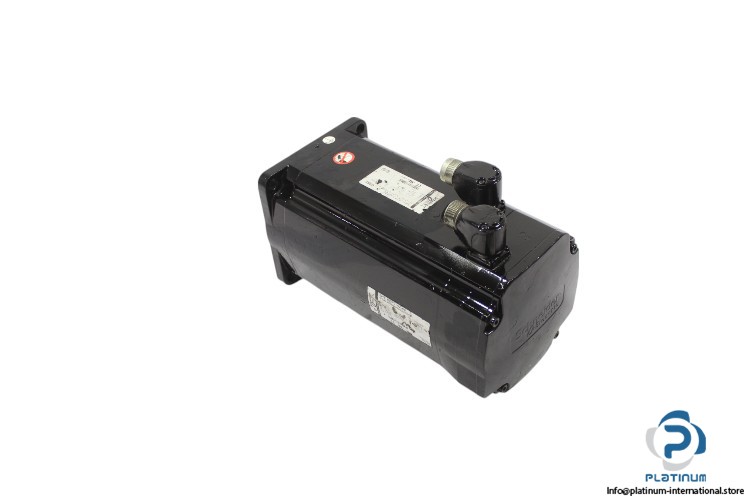

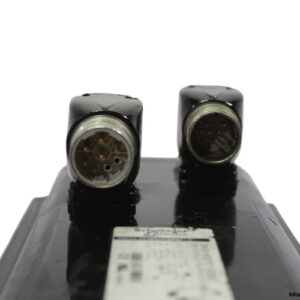

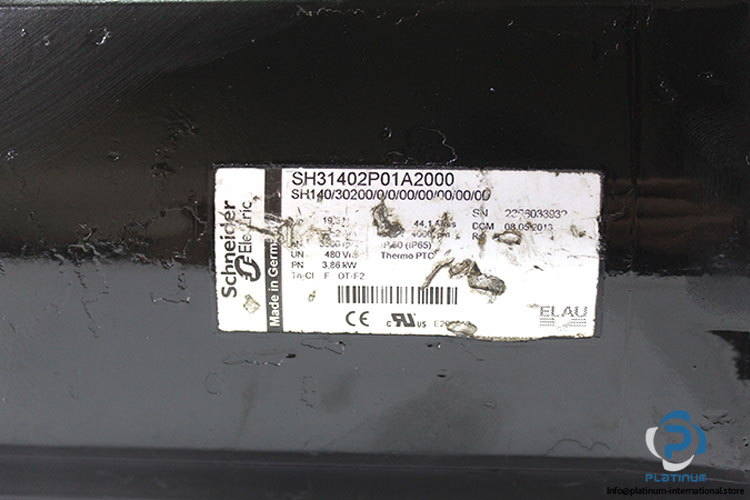

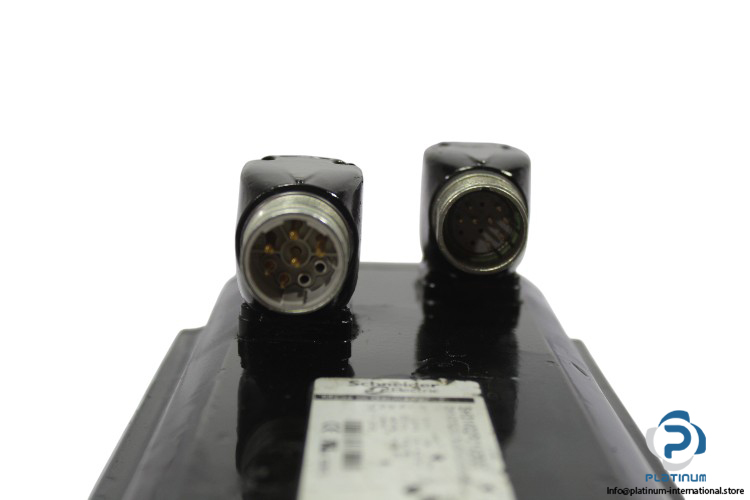

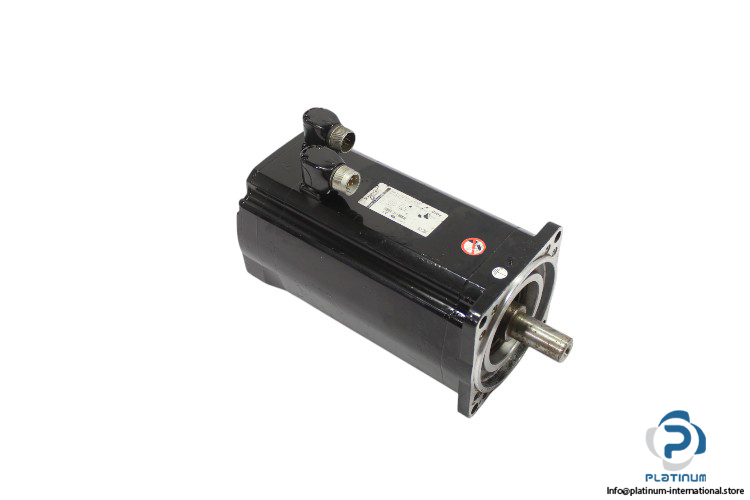

ELAU “ Schneider Electric SH31402P01A2000 Servo Motor
The ELAU “ Schneider Electric SH31402P01A2000 Servo Motor is a high-performance motor designed for precise motion control applications. With a rated voltage of 480 Vrms, a nominal power of 3.86 kW, and a speed range up to 4000 rpm, this servo motor delivers exceptional efficiency and reliability in industrial automation systems.
- Manufacturer: ELAU “ Schneider Electric
- Type: Servo Motor
- Model: SH31402P01A2000
- Alternative Model: SH140/30200/0/0/00/00/00/00/00
Technical Specifications
- Rated Voltage: 480 Vrms
- Max. Current: 44.1 Arms
- Stall Current: 13.2 Arms
- Normal Speed: 3000 rpm
- Max. Speed: 4000 rpm
- Nominal Torque: 19.5 Nm
- Holding Brake: Without
- Nominal Power: 3.86 kW
- Flange Size: 140 mm
- Motor Length: 272.5 mm
- Shaft Diameter: 24 mm
- Shaft Length: 50 mm
- Thermal Class: F
- Protection Class: IP50 (IP65)
