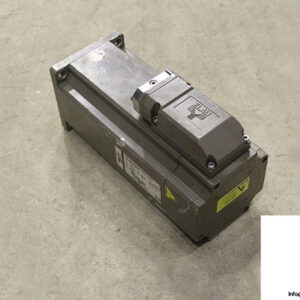

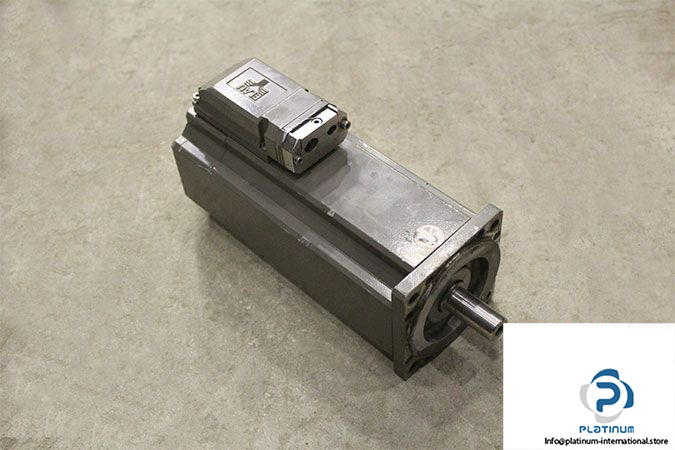

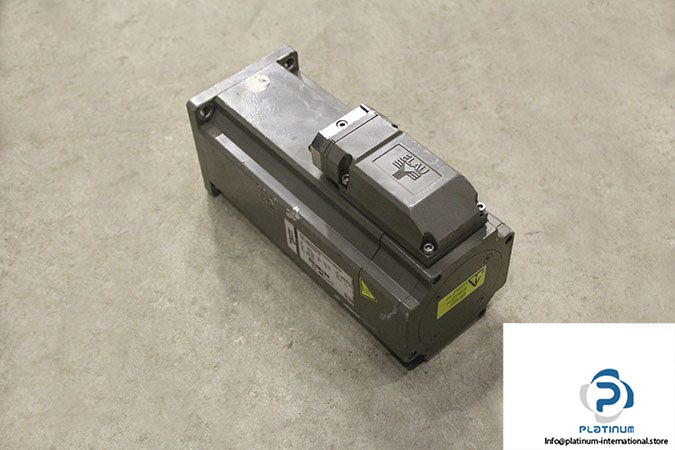

SCHNEIDER ELECTRIC ELAU SM-100/40/050/P3/55/S1/B0/06 SERVO MOTOR
This Schneider Electric Elau synchronous servo motor delivers high-performance operation in automated motion systems. With a rated power of 1.42 kW and advanced encoder feedback, it offers precise control, robust protection, and compact integration into demanding industrial environments.
Manufacturer: Schneider Electric, Elau
Type: Synchronous Servo Motor

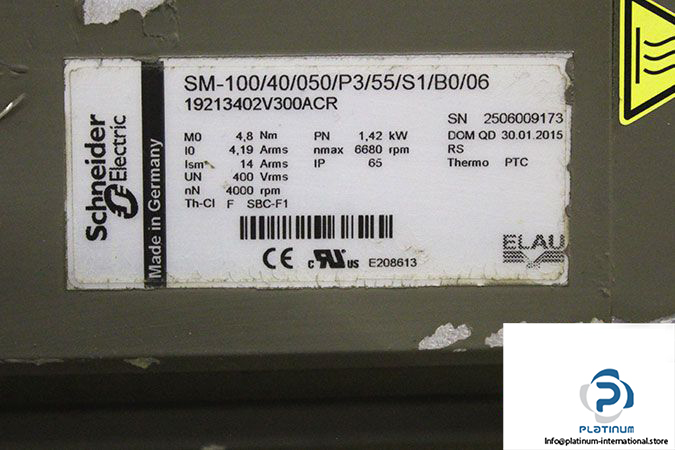

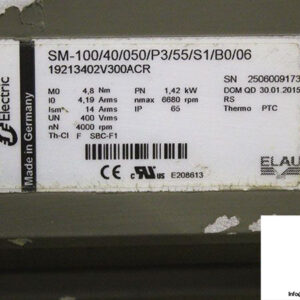

Model: SM-100/40/050/P3/55/S1/B0/06
Part No.: 19213402V300ACR
Technical Information
- Stall Torque: 4.8 Nm
- Stall Current: 4.19 A
- Peak Current: 14 A
- Rated Voltage: 400 V
- Rated Power: 1.42 kW
- Rated Speed: 4000 rpm
- Maximum Speed: 6680 rpm
- Encoder: Sin Cos Single-Turn
- Number of Poles: 8
- Flange Size: 100 mm
- Shaft Diameter: 19 mm
- Protection Class: IP65
- Thermal Class: F
