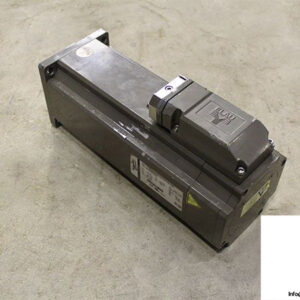

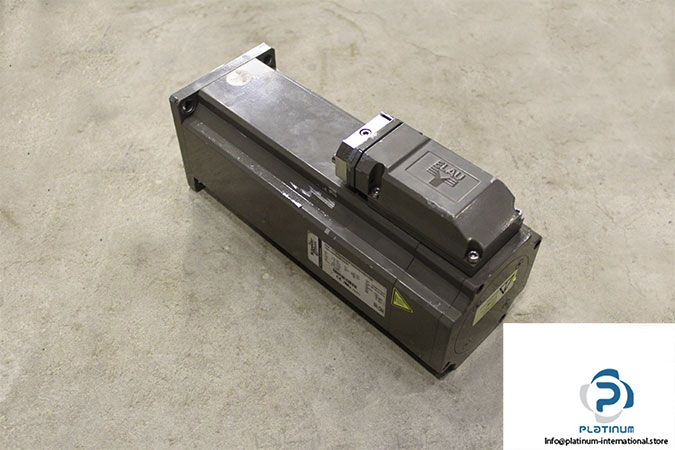

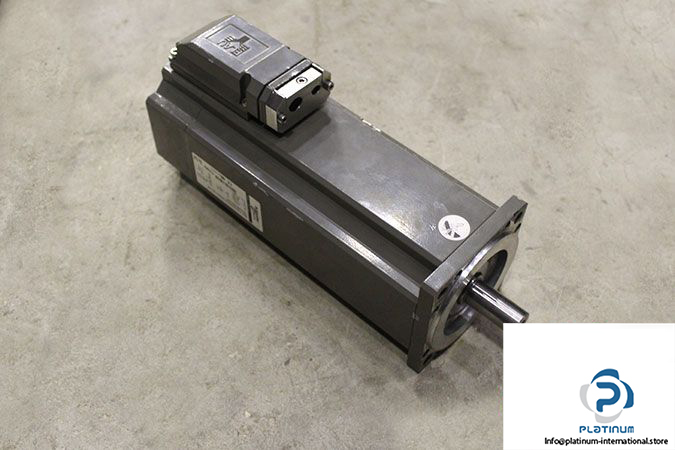

SCHNEIDER ELECTRIC ELAU SM-100/40/050/P3/55/S1/B1/06 SERVO MOTOR
This high-performance servo motor from Schneider Electric, Elau delivers exceptional accuracy and dynamic motion control, ideal for demanding automation environments. Designed for efficiency and precision, it offers robust braking capability and high-speed operation with superior protection class.
Manufacturer: Schneider Electric, Elau
Type: Servo Motor

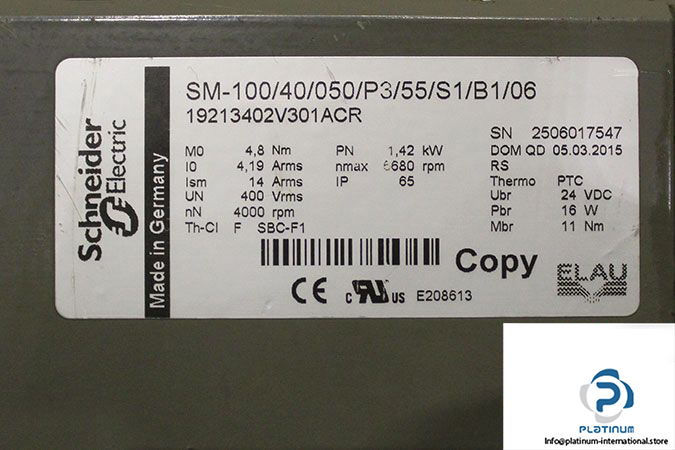

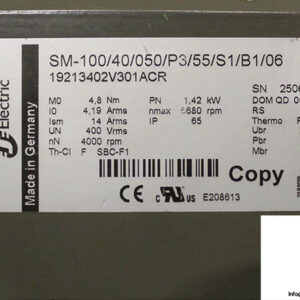

Model: SM-100/40/050/P3/55/S1/B1/06
Part No.: 19213402V301ACR
S No.: 2506017547 / E208613
Technical Information
- Stall Torque [Nm]: 4.8
- Stall Current [A]: 4.19
- Peak Current [A]: 14
- Rated Voltage [V]: 400
- Rated Speed [rpm]: 4000
- Maximum Speed [rpm]: 6680
- Protection Class [IP]: 65
- Rated Power [kW]: 1.42
- Encoder: Sin Cos Single-Turn
- Brake Voltage [VDC]: 24
- Brake Power [W]: 16
- Brake Torque [Nm]: 11
- Flange Size [mm]: 100
- Shaft Diameter [mm]: 19
- Number of Poles: 8
- Thermal Class: F
