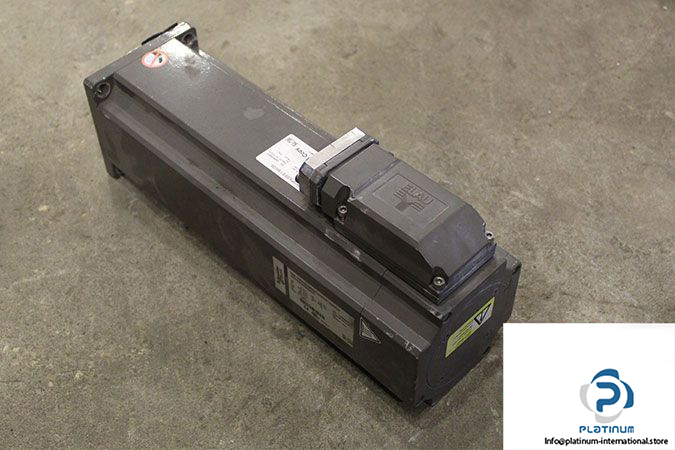

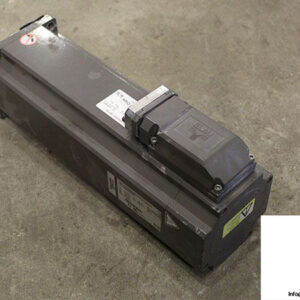

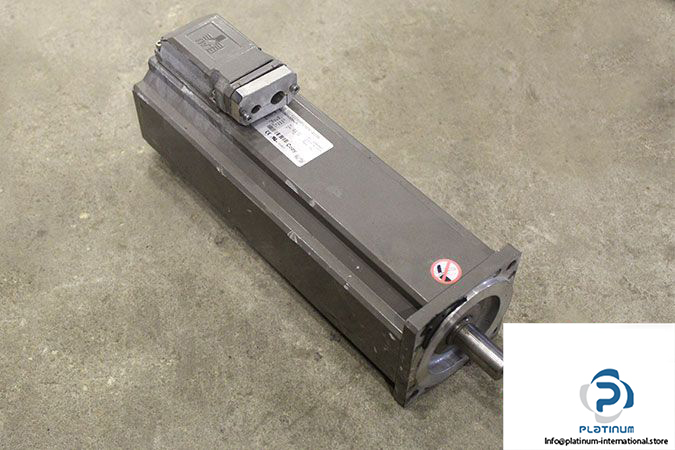

SCHNEIDER ELECTRIC ELAU SM-100/40/080/P3/55/S1/B0/06 SERVO MOTOR

This advanced servo motor from Schneider Electric, Elau offers precise motion control and reliable performance for high-demand industrial automation systems. Engineered for efficiency and durability, it delivers powerful torque and high speed within a compact footprint.

Manufacturer: Schneider Electric, Elau
Type: Servo Motor

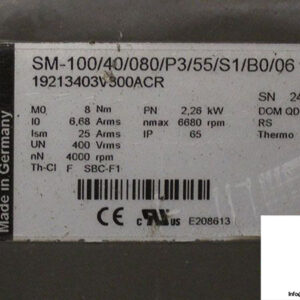

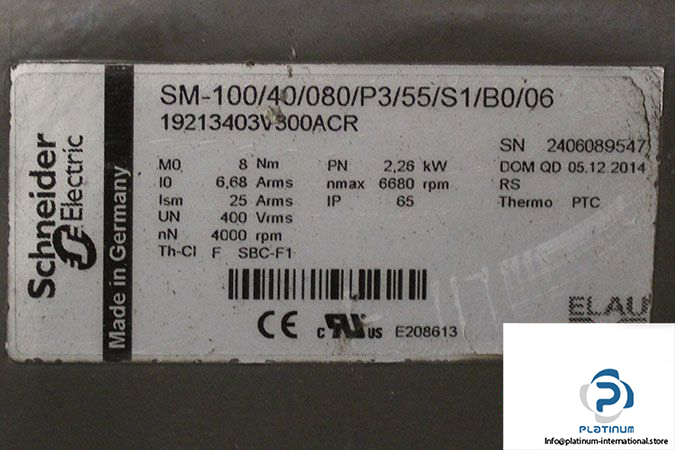

Model: SM-100/40/080/P3/55/S1/B0/06
Part No.: 19213403V300ACR
Serial No.: 2406089547 / E208613

Technical Information

• Stall Torque [Nm]: 8
• Stall Current [A]: 6.68
• Peak Current [A]: 25
• Rated Voltage [V]: 400
• Rated Speed [rpm]: 4000
• Maximum Speed [rpm]: 6680
• Protection Class [IP]: 65
• Rated Power [kW]: 2.26
• Encoder: Sin Cos Single-Turn
• Flange Size [mm]: 100
• Shaft Diameter [mm]: 19
• Number of Poles: 8
• Thermal Class: F
