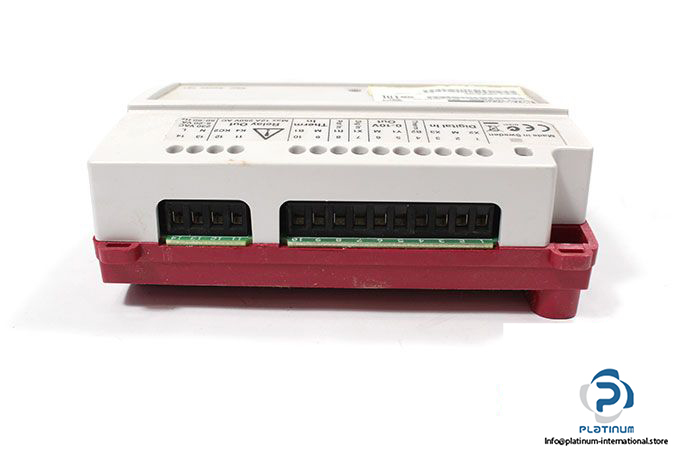

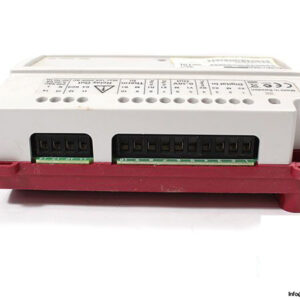

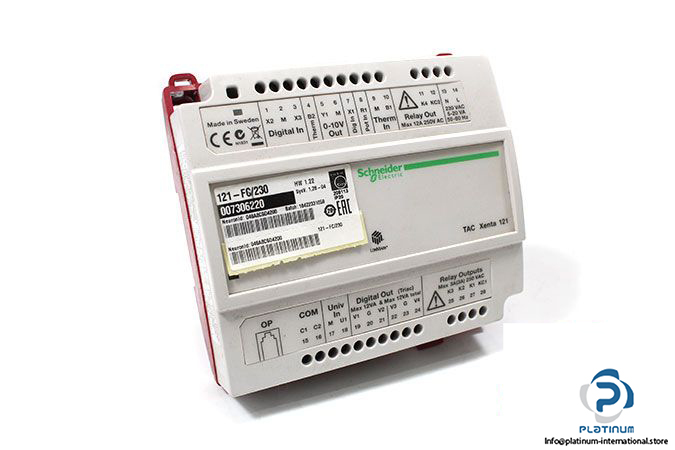

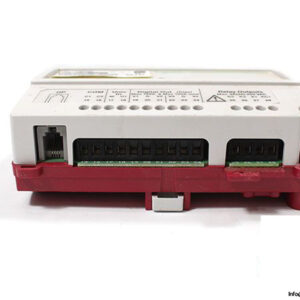

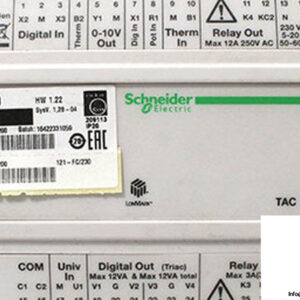

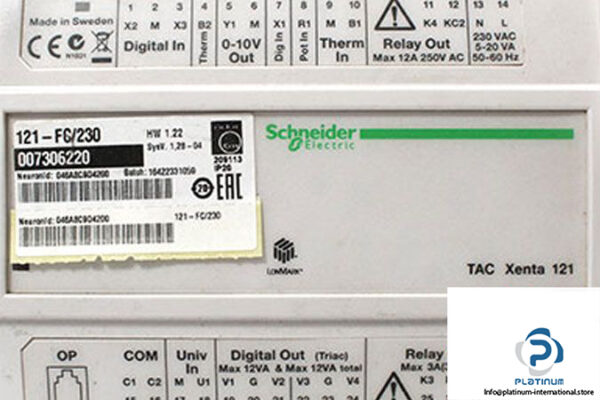

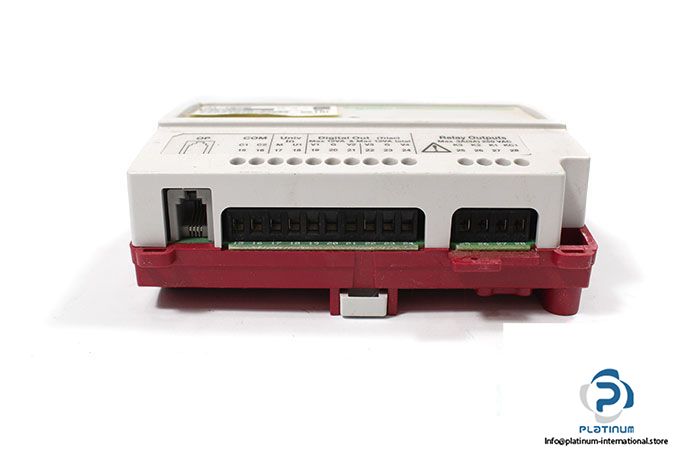

Manufacturer: SCHNEIDER ELECTRIC

Type: Programmable Controller

Model: TAC Xenta 121-FC/230

Part No.: 0-073-0622-0

Used For:

• Hardware Platform for General Fan Coil and Heat Pump Applications
• 2-Pipe And 4-Pipe Applications

Materials: ABS/PC Plastic

Supply Voltage: 230 V AC

Controller With TAC Xenta OP: 5 VA

Max. Digital Output: 12 VA

Current Through Closed Contact: 4 mA

Minimum Pulse Input Duration: 250 ms

Dimensions (Height x Width x Depth): 122 × 126 × 50 mm

Enclosure Rating: IP30

Frequency: 50 … 60 Hz

Operating Temperature: 0 … 50 °C
