Manufacturer: Schneider Electric

Type: Universal Input And Digital Output Module

Family: TAC Xenta®

Model: TAC Xenta 421A

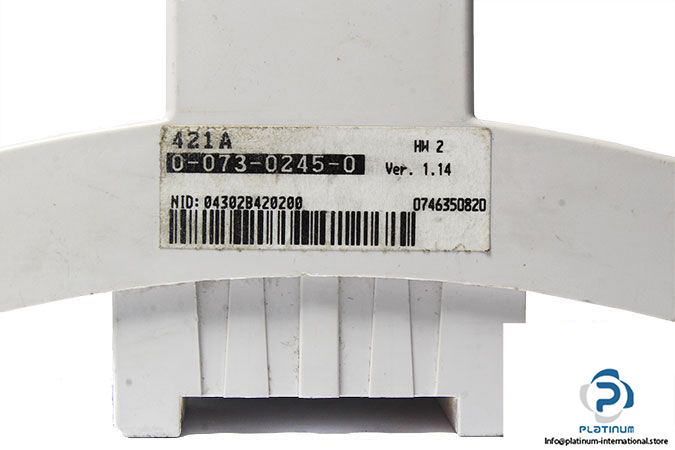

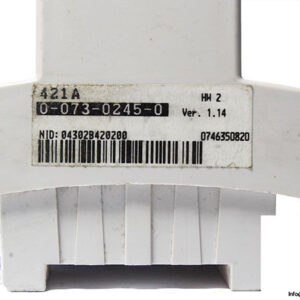

Part No: 0-073-0245-0

Supply Voltage: 24 V AC

Transformer Sizing: 8 VA

Universal Inputs: 4

Voltage across Open Contact: 20 V DC

Current through Closed Contact: 3 mA

Digital Outputs: 5

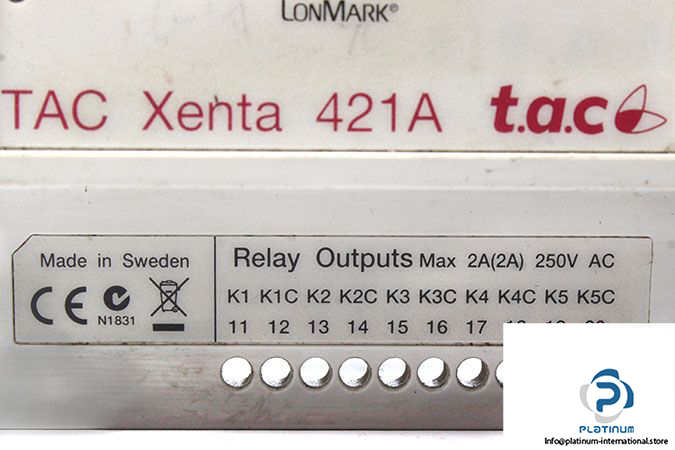

Control Voltage, Relay Outputs: Max. 2A, 250 V AC

Enclosure rating: IP20

Ambient Temperature Operation: 0 … 50 °C

Dimensions: 110 x 90 x 75 mm

Weight: 0.18 kg
