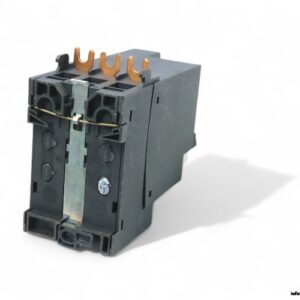

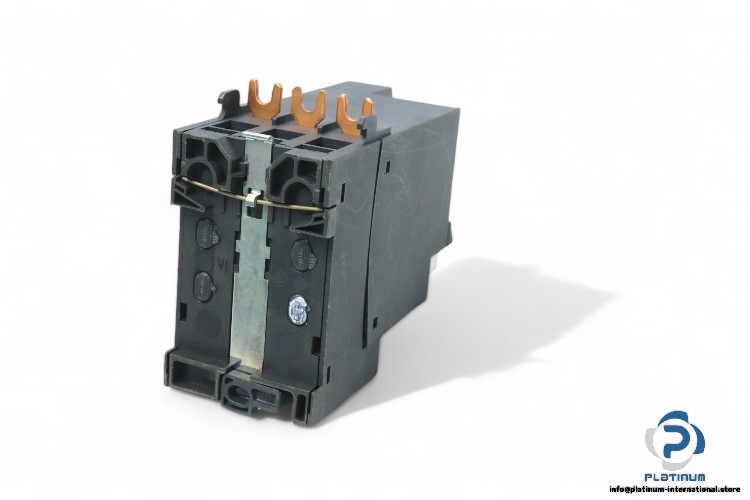

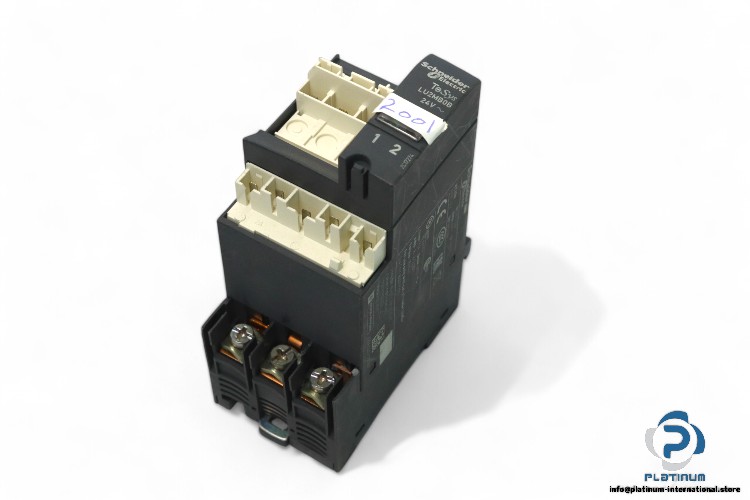

Schneider Electric Reverser Block LU2MB0B

Schneider Electric Reverser Block LU2MB0B is designed for motor control applications, offering reliable and efficient operation in industrial environments. Below are the key technical specifications:

• Manufacturer: Schneider Electric
• Type: Reverser Block
• Model: LU2MB0B
• Range: Tesys

Technical Data:

• Device Application: Motor Control
• No. of Poles: 3
• Rated Operational Current (Ie): 32 A
• Rated Operational Voltage (Ue): 690 V AC
• Control Circuit Voltage (Us): 24 V AC, 50 to 60 Hz
• Operating Frequency: 50/60 Hz
• Rated Surge Voltage Resistance (Uimp): 6 kV
• Rated Insulation Voltage (Ui): 690 V AC
• Connections “ Terminals: Screw Clamps Control
• Standards: IEC 60947-6-2 / EN 60947-6-2
• Fixing Mode: Plug-in
• Protection Class: IP20
• Dimensions (W x D x H): 45 X 105 X 80 mm
• Operation Ambient Temperature: -25 to 60 °C
