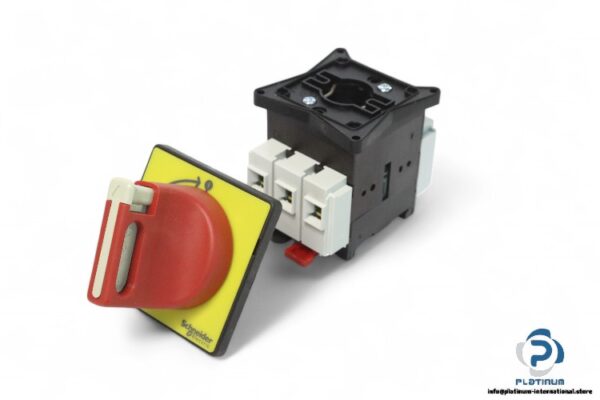

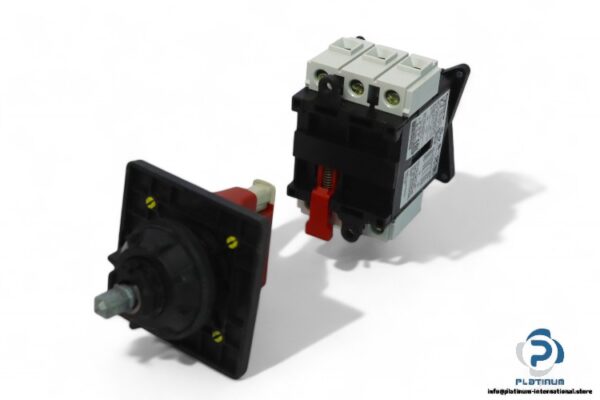

Schneider VCD1 Circuit Breaker

The Schneider VCD1 Circuit Breaker offers reliable and efficient performance for industrial power distribution and motor control applications. With a rated operational voltage of up to 690V AC and multiple power ratings for various operational scenarios, this 3-pole circuit breaker is ideal for heavy-duty usage. Its advanced design ensures durability and safety in demanding environments.

• Manufacturer: Schneider
• Type: Circuit Breaker
• Model: VCD1
• Part No.: 072488
• Specifications:
  • Device Composition: Switch Handle
  • Mounting Support: Handle door, Switch door
  • Mounting Method Hole: 0.9 in (22.5 mm) handle

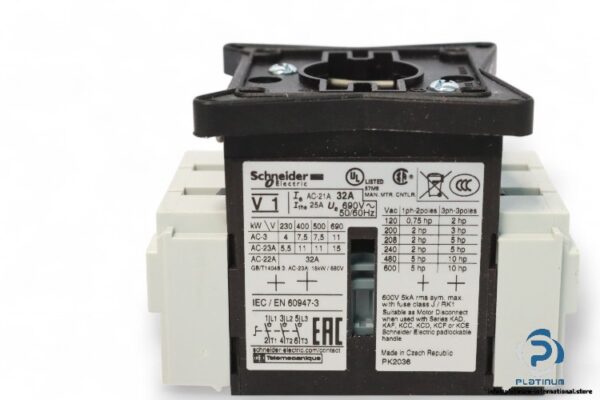

  • Rated Operational Voltage: 690V AC, 50“60 Hz
  • IEC Rated Operational Power in W:
    • 11 kW at 500 V, AC-23A
    • 15 kW at 690 V, AC-23A
    • 7.5 kW at 500 V, AC-3
    • 7.5 kW at 690 V, AC-3
    • 1.5 kW at 230…240 V, AC-3
    • 5.5 kW at 230…240 V, AC-23A
    • 11 kW at 400…415 V, AC-23A
    • 7.5 kW at 400…415 V, AC-3
  • Rated Operational Current (Ie): 11A at AC-23A, 400 V
  • Thermal Current Conventional Free Air (Ith): 32 A
  • Number of Poles: 3P
  • Contact Type and Composition: 3 NO
  • Degree of Protection: IP20, IP65
  • Operation Temperature: -20 / 50 °C
  • Dimension (H x W): 74 x 60 mm
• Features:
  • Robust design for industrial environments
  • High thermal and operational current ratings
  • Multiple mounting and switching options
  • Enhanced protection with IP20 and IP65 ratings
• Applications: Industrial motor control, power distribution, and heavy machinery operations.
