Schneider XALK178F Push Button Control Station

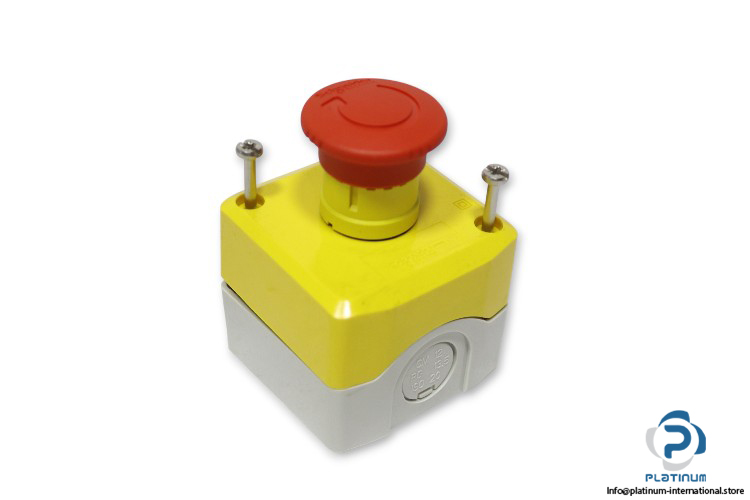

The Schneider XALK178F Push Button Control Station is a robust and reliable emergency control device designed for industrial machinery and safety applications. Built with durable polycarbonate housing and equipped with a 40 mm mushroom head push-button, it ensures secure operation even in demanding environments.

Manufacturer: Schneider
Type: Push Button Control Station
Model: XALK178F
Alternative Model: XALK178FCA / PK-2021-W24-3
Part No.: 011364

Technical Information

• Range: Harmony XALK
• Short Name: XALK
• Destination: For XB5 22 mm Control and Signaling Units
• Rated Insulation Voltage: 600 V AC
• Thermal Current: 10 A
• Rated Impulse Voltage (Uimp): 6 kV
• Reset: Turn to Release
• Contact: 2 Normally Closed (NC)
• Control Station Composition: 1 Mushroom Head 40 mm Push-Button
• Operating Force: 44 N
• Material: Polycarbonate
• Protection Class: IP65
• Ambient Temperature: -40 / 70 °C
