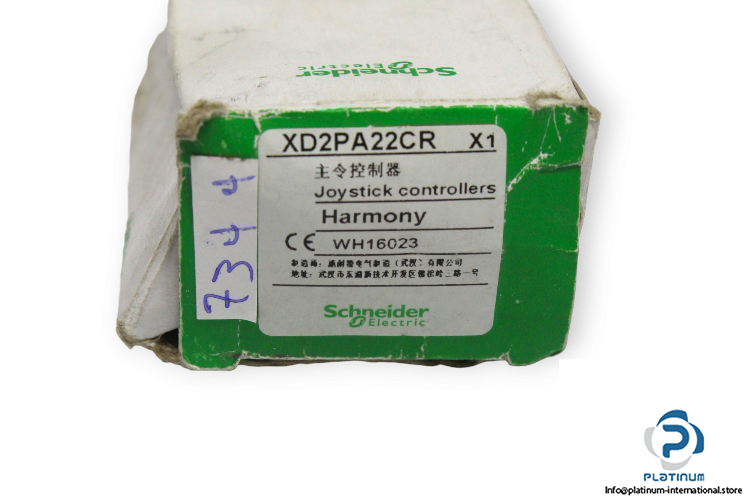

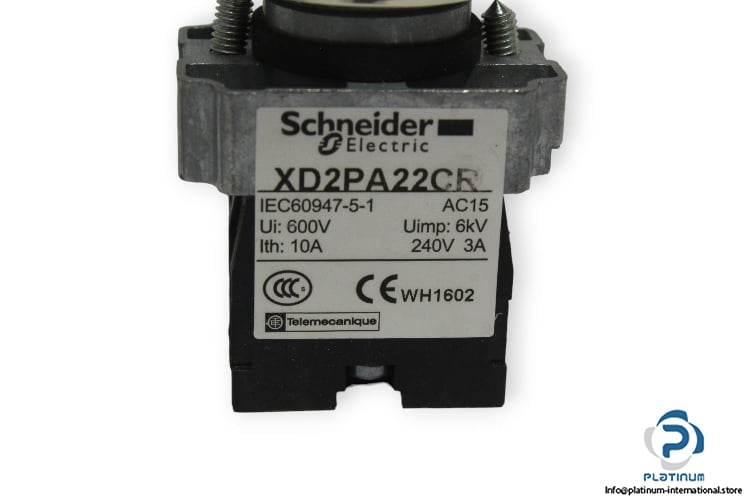

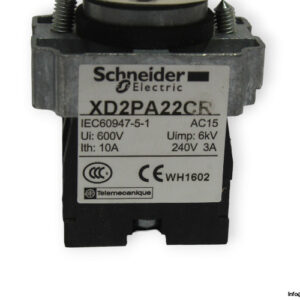

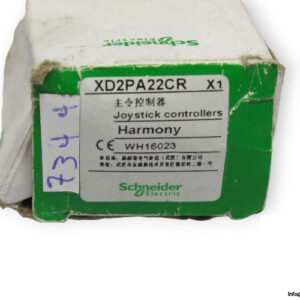

Manufacture: Schneider Electric

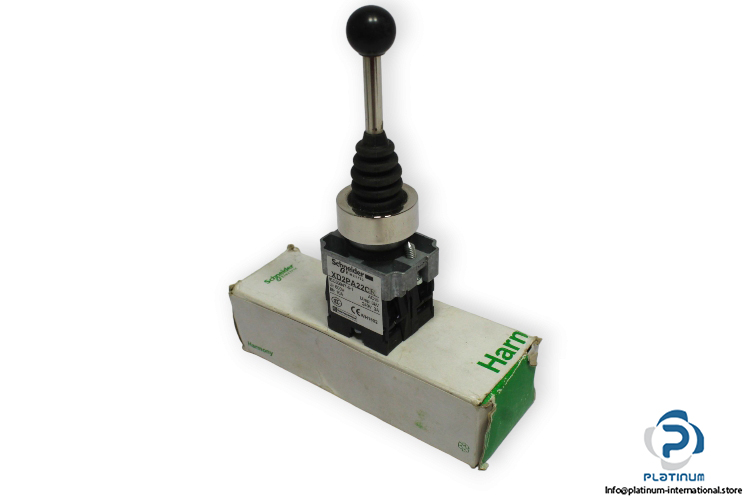

Type: Complete Joystick Controller
Model: XD2PA22CR
Part No.: WH16023
Device short name: XD2

Rated impulse withstands voltage Uimp: 6 Kv
Rated insulation voltage Ui: 600 V
Rated operational current Ie: 3 A at 240 V AC-15
Thermal current Ith: 10 A
Mounting diameter: 22.5 mm
Bezel material: Chrome metal
Operator position information: All positions
Operator direction information: 2 directions
Contacts type and composition: 2 NO for slow-break
Fixing center: 30 x 85 mm
Dimensions: 123.5 x 30 x 40 mm
Operation temperature: -25 … 70°C
Degree of protection: IP65
