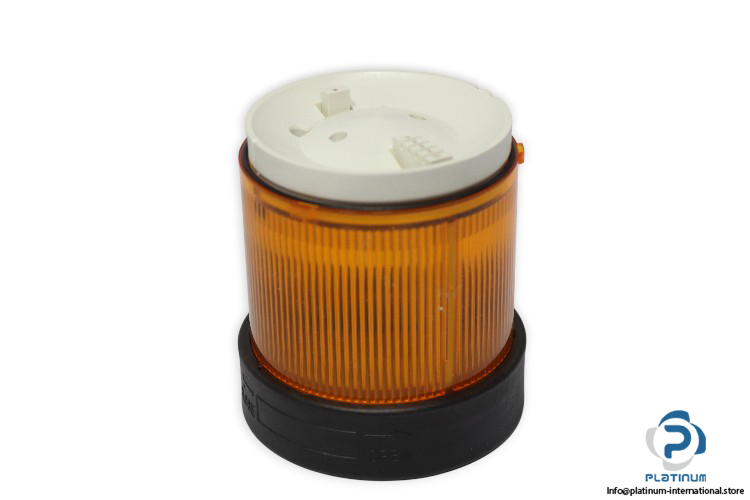

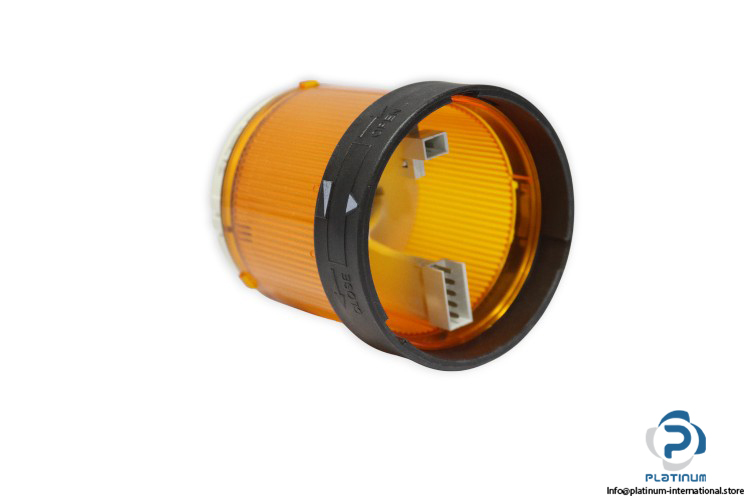

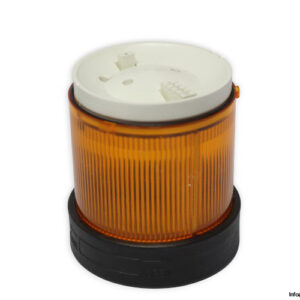

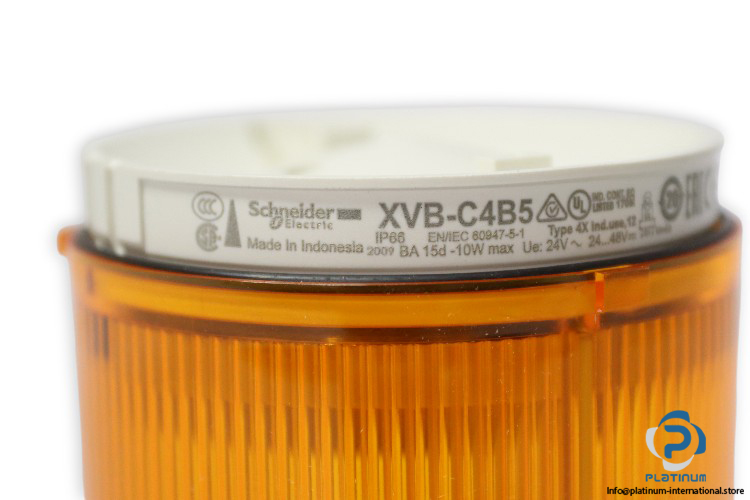

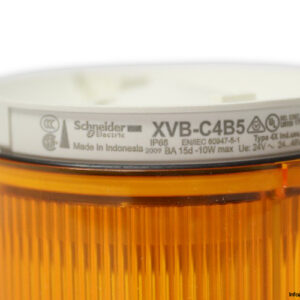

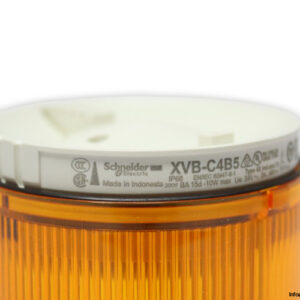

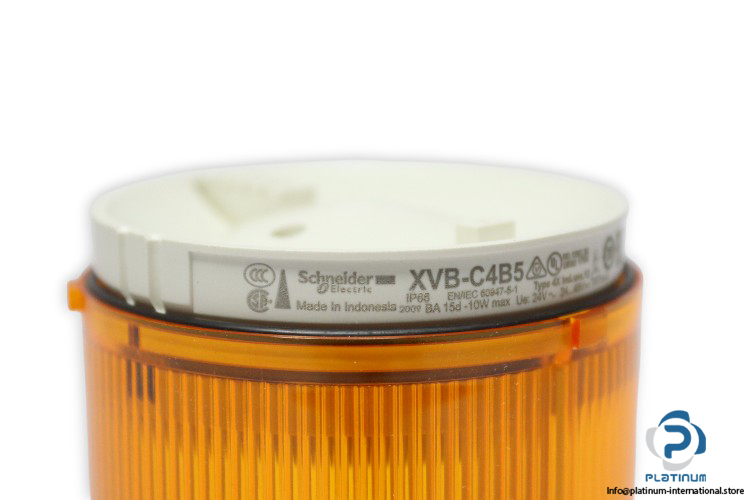

Schneider Electric XVBC4B5 Illuminated Unit

The Schneider Electric XVBC4B5 is a modular illuminated unit designed for Harmony XVB tower lights. It provides reliable flashing signalling, durable construction, and easy integration into industrial visual indication systems.

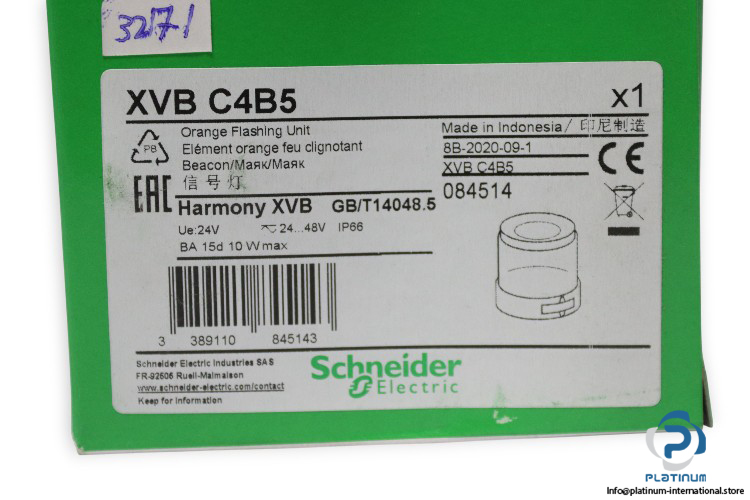

Manufacturer: Schneider Electric
Type: Illuminated unit for modular tower light

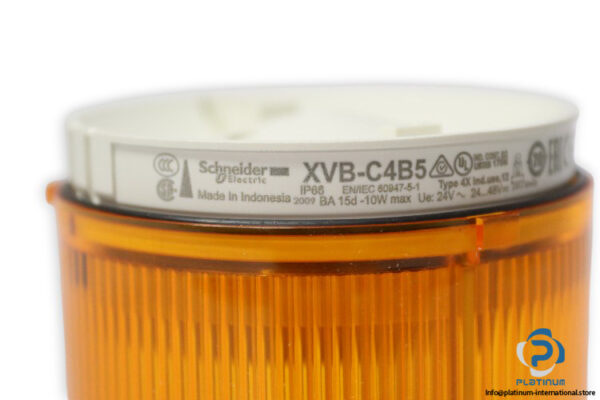

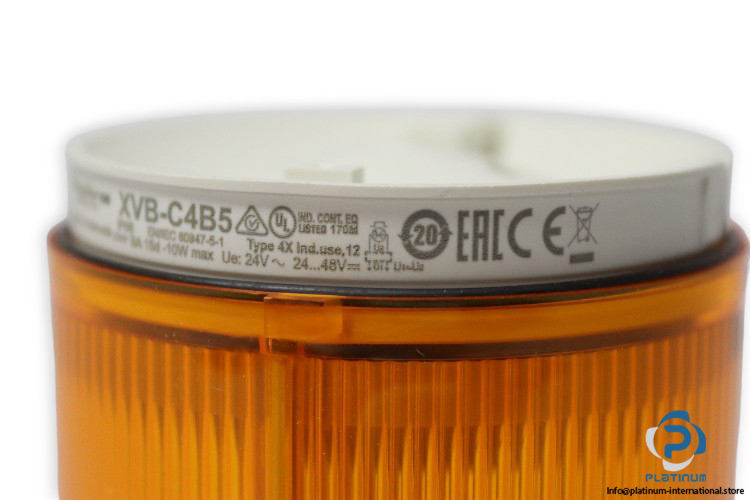

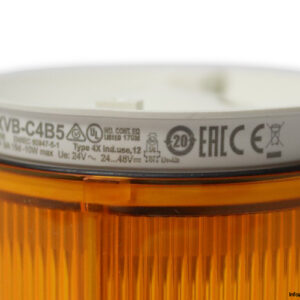

Model: XVBC4B5
Series: Harmony XVB
Part Number: 084514
Serial Number: 3389110845143

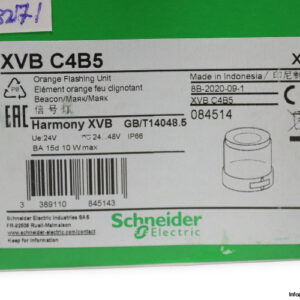

Codes: 8B-2020-09-1, XVB

Technical Information

• Range of Product: Harmony XVB Universal
• Product or Component Type: Indicator bank
• Unit Type: Illuminated unit
• Signalling Type: Flashing
• Mounting Diameter: 70 millimeters
• Component Name: XVBC
• Material: Polycarbonate
• Light Source: Bulb not included, orange
• Bulb Type: Incandescent with BA 15d base or protected LED incandescent
• Rated Supply Voltage: 24 V AC, 24 to 48 V DC
• Protection Rating: IP66
• Assembly Style: Customer assembly, up to 5 units
• Maximum Power Dissipation: 7 W
• Connections: Screw clamp terminals, up to 1 x 1.5 square millimeters with cable end
• Rated Insulation Voltage: 250 V (IEC 60947-1)
• Nominal Voltage Limit: 0.85 to 1.1 Un (IEC 60947-5-1)
• Rated Impulse Withstand Voltage: 4 kV (IEC 60947-1)
• Flashing Frequency: 1 Hz
• Overall Width: 70 millimeters
• Overall Height: 63 millimeters
• Overall Depth: 70 millimeters
• Standards: EN IEC 60947-5-1
