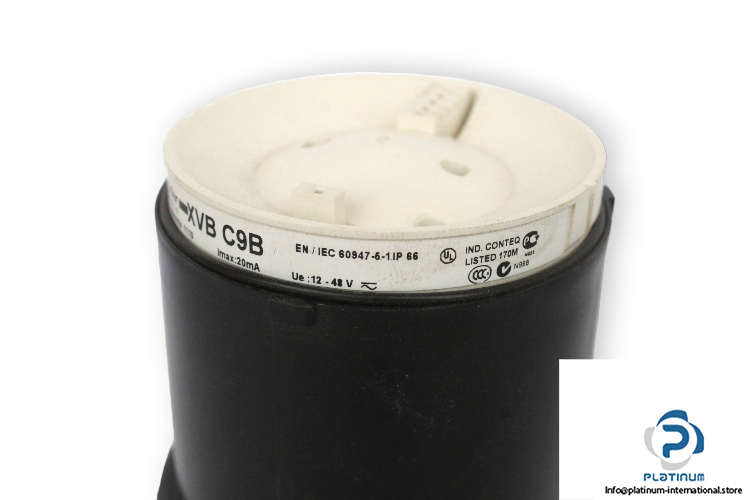

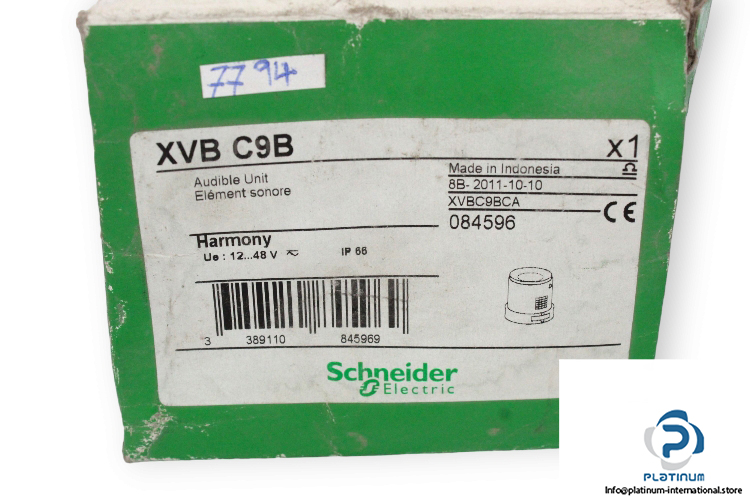

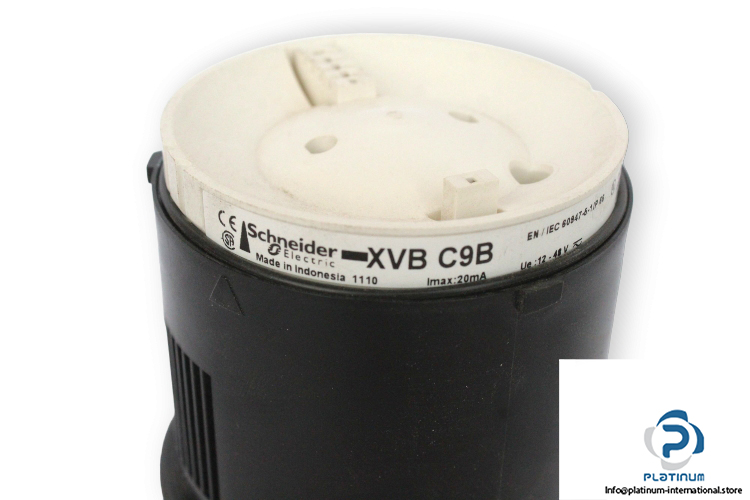

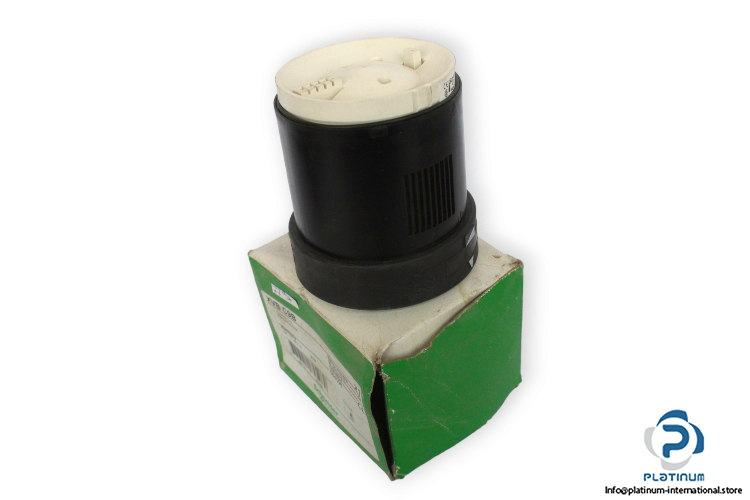

Manufacture: Schneider
Type: buzzer unit
Model: XVBC9B
Order No.: 084596

Rated insulation voltage Ui: 250 V
Rated supply voltage Us: 12 … 48 V AC/DC
Rated impulse withstand voltage Uimp: 4 kV
Current: max. 20 mA
Noise level: 70 … 90 dB at 1 m
Mounting diameter: 70 mm
Connections-terminals: Screw clamp terminals
Ambient air temperature for Operation: -25 … 50 °C
Degree of protection: IP66
